Quick Details
-
Signal Output:
-
Door status Output,NC/COM
-
Face Plate:
-
190Lx30WX39H(mm)
-
Voltage:
-
12VDC
-
Start Current:
-
850mA
-
Standby Current:
-
150mA
-
Autolock Time Delay:
-
0,3,6,9sec
-
Weight:
-
0.6kg
Quick Details
-
Place of Origin:
-
Guangdong, China
-
Brand Name:
-
YLI
-
Certification:
-
CE/MA
-
Signal Output:
-
Door status Output,NC/COM
-
Face Plate:
-
190Lx30WX39H(mm)
-
Voltage:
-
12VDC
-
Start Current:
-
850mA
-
Standby Current:
-
150mA
-
Autolock Time Delay:
-
0,3,6,9sec
-
Weight:
-
0.6kg
Product Description
Product Application

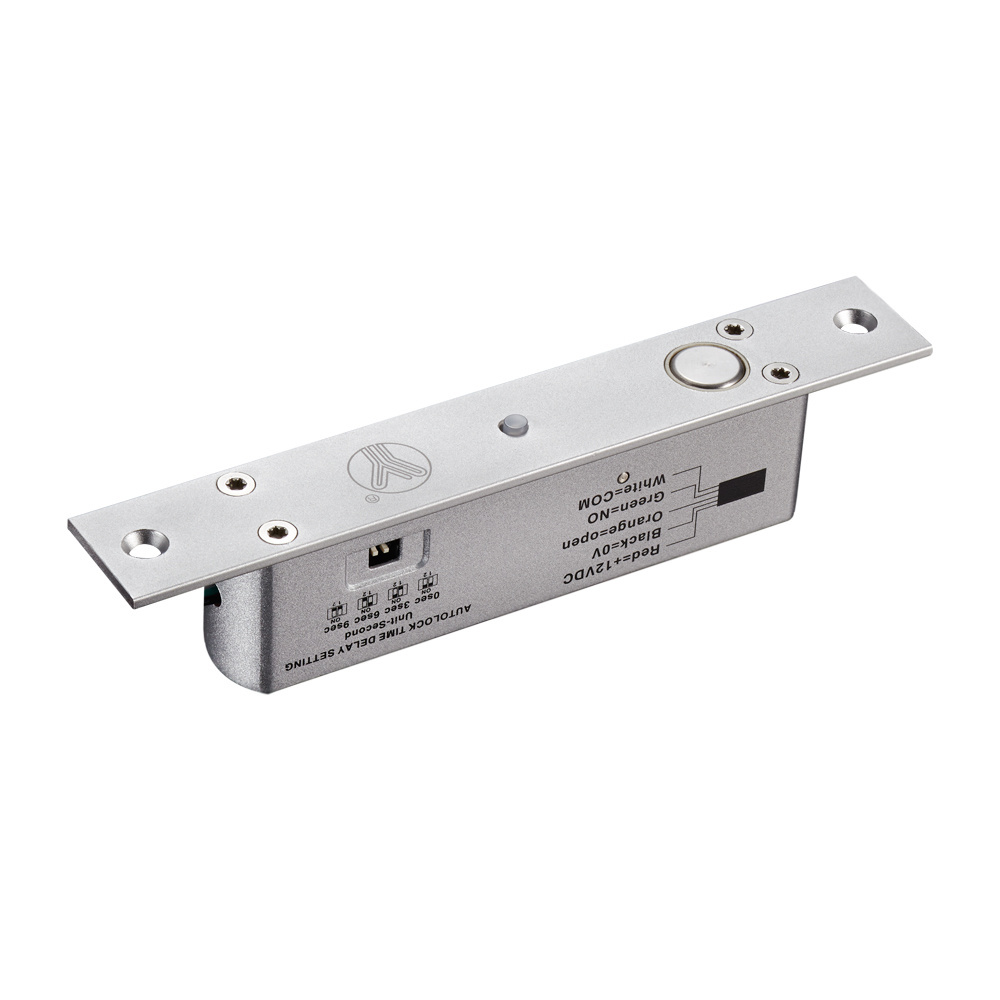

YB-200(LED) is a kind of durable fail safe electric bolt with all-in-one design. In order to avoid the locking mistakes caused by internal mechanical failures, we separate the bolt and the magnetic valve. The 304 stainless steel solid bolt can withstand 800kg holding force and can be worked in the temperature of 60 ℃ or -40℃ below zero. With the multiple designs of durable magnetic valve, special photoelectric control system, ultra-low temperature and power consumption design, anti-intrusion and smart circuit
|
Feature
|
Fail Safe
|
|
|
||
|
Face Plate
|
190Lx30WX39H(mm)
|
|
|
||
|
Strike
|
95Lx25Wx3H(mm)
|
|
|
||
|
Decorative Panel
|
195Lx35Wx0.7H(mm)
|
|
|
||
|
Bolt
|
16(length)*16(diameter)(mm)
|
|
|
||
|
Voltage
|
DC12V
|
|
|
||
|
Start Current
|
850mA
|
|
|
||
|
Standby Current
|
150mA
|
|
|
||
|
Solid Bolt
|
polishing housing, 800Kg Holding Force
|
|
|
||
|
Suitable For
|
Wooden Door,Glass Door,Metal Door
|
|
|
||
|
Autolock Time Delay
|
0,3,6,9sec
|
|
|
||
|
Signal Output
|
Door status Output,NO/COM
|
|
|
||
|
LED
|
Door status Output,NO/COM
|
|
|
||
|
Surface Temp
|
Low Temperature
|
|
|
||
|
Induction Distance
|
8mm
|
|
|
||
|
Special Designed
|
Tested to 500000 operations
|
|
|
||
|
Face place material
|
High Aluminum
|
|
|
||
|
Weight
|
0.6kg
|
|
|
||
Installation Diagram
