- Product Details
- {{item.text}}
Quick Details
-
Model Number:
-
Veinasa-WSY01
-
Product name:
-
Temperature instruments
-
Power supply:
-
DC 10-30V
-
Probe operating temperature:
-
-40℃~+120℃default-40℃~+80℃
-
Probe working humidity:
-
0%RH-100%RH
-
Temperature display resolution:
-
0.1℃
-
Humidity display resolution:
-
0.1%RH
-
Humidity response time:
-
≤1%RH/y
-
Temperature response time:
-
≤0.1℃/y
-
CI:
-
Support for 802. 11b/ g/ n wireless standard
-
WIFI communication parameters:
-
Support for 802. 11b/ g/ n wireless standard
Quick Details
-
Warranty:
-
1 YEAR
-
Place of Origin:
-
Sichuan, China
-
Brand Name:
-
Veinasa
-
Model Number:
-
Veinasa-WSY01
-
Product name:
-
Temperature instruments
-
Power supply:
-
DC 10-30V
-
Probe operating temperature:
-
-40℃~+120℃default-40℃~+80℃
-
Probe working humidity:
-
0%RH-100%RH
-
Temperature display resolution:
-
0.1℃
-
Humidity display resolution:
-
0.1%RH
-
Humidity response time:
-
≤1%RH/y
-
Temperature response time:
-
≤0.1℃/y
-
CI:
-
Support for 802. 11b/ g/ n wireless standard
-
WIFI communication parameters:
-
Support for 802. 11b/ g/ n wireless standard

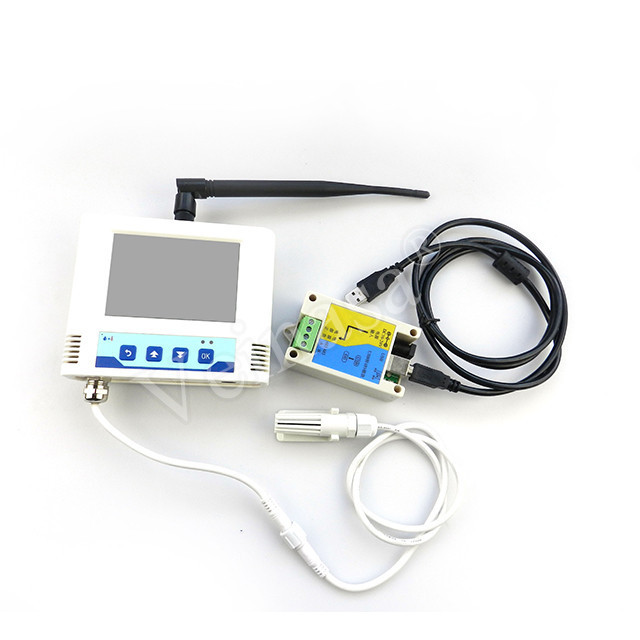

Veinasa-WSY01 RS485 Measurings Wifi Wireless Data Logger Humidity Transmitter Temperature Instrument
Products Description
Veinasa-WSY01 RS485 Measurings Wifi Wireless Data Logger Humidity Transmitter Temperature Instrument
is a
WIFI wireless data logger and industrial-grade temperature and humidity transmitter,
can collect temperature and humidity data and upload to the server through WIFI.
This series of products make full use of the established WIFI communication network to realize data acquisition and transmission, and achieve the purpose of centralized monitoring of temperature and humidity data. Can greatly reduce the amount of construction, improve construction efficiency and maintenance costs.
Product Paramenters
|
Power supply
|
DC 10-30V
|
|
|
||
|
Data upload time
|
n Default 2S/ times, 1S~10000 S / times (can be set)
|
|
|
||
|
A precision
|
humidity
|
±2%RH(5%RH~95%RH,25℃)
|
|
||
|
|
humidity
|
±0.4℃（25℃）
|
|
||
|
B-precision
(default) |
humidity
|
±3%RH(5%RH~95%RH,25℃)
|
|
||
|
|
humidity
|
±0.5℃（25℃）
|
|
||
|
Transmitter circuit operating temperature
|
-20℃~+60℃，0%RH~80%RH
|
|
|
||
|
Probe operating temperature
|
-40℃~+120℃，default-40℃~+80℃
|
|
|
||
|
Probe working humidity
|
0%RH-100%RH
|
|
|
||
|
Temperature display resolution
|
0.1℃
|
|
|
||
|
Humidity display resolution
|
0.1%RH
|
|
|
||
|
Temperature and humidity refresh time
|
1s
|
|
|
||
|
Long-term stability
|
humidity
|
|
≤1%RH/y
|
||
|
|
temperature
|
|
≤0.1℃/y
|
||
|
Response time
|
humidity
|
|
≤8s(1m/s wind speed)
|
||
|
|
temperature
|
|
≤25s(1m/s wind speed)
|
||
|
CI
|
Standard WIFI wireless（2.4GHZ）
|
|
|
||
|
IP Address
|
Support static IP address, IP address automatic acquisition function, support cross-gateway, domain name resolution, support WAN
connection |
|
|
||
|
WIFI communication parameters
|
Support for 802. 11b/ g/ n wireless standard
|
|
|
||
|
WIFI encryption performance
|
Support for WPA/WPA2 security mode
|
|
|
||
Product Display
Main features of
Veinasa-WSY01 RS485 Measurings Wifi Wireless Data Logger Humidity Transmitter Temperature Instrument:
The internal integrated alarm module (buzzer or relay) can alarm when reach maximum and minimum temperature or humidity .
The Wireless WIFI data logger
adopts the high-quality temperature and humidity measuring unit, has the characteristics of high measurement precision, strong anti-interference ability and the like, and ensures the excellent measurement performance of the product.
Application Field
The applications of Veinasa-WSY01 RS485 Measurings Wifi Wireless Data Logger Humidity Transmitter Temperature Instrument:
This series of
multi use temperature and humidity data logger
are widely used in computer room monitoring system, power monitoring system, security engineering, medical and health monitoring, energy consumption monitoring system, intelligent home and other fields.
Related Products
Company Introduction
FAQ
Q: Are you a factory/manufacturer?
Q: What’s the common power supply and signal output?
A: Yes, we are professional factory/manufacturer of weather station and relative weather sensors. We also have hot sale and widely used temperature and humidity data logger
Veinasa-WSY
.
Q: What’s the common power supply and signal output?
A: Common power supply and signal output is DC10-30V, RS485.
Q: How can I collect data?
A:This multi use
temperature and humidity data logger has a LCD display, the data will be display on the screen. And the data can be
transfered via wifi.
Q: What's the lifetime of this RS485 temperature instruments(Veinasa-WSY01)?
A: At least 5 years long. Every sensor has its own calibration certificate or testing report.
Q:What’s the delivery time?
A: Usually, we dispatch goods in 3 working days after receiving your payment. But it depends on your quantity.
Q: May I know your warranty?
A: Yes, usually it’s 1 year. We can send you detailed warranty document if needed.
Veinasa-WSY01 RS485 Measurings Wifi Wireless Data Logger Humidity Transmitter Temperature Instrument
With rich experiences in tackling problems, Veinasa aims to provide a package of meteorological solutions to your needs, whatever problems you encounters, Veinasa team always stand by your side.
Veinasa-WSY01 RS485 Measurings Wifi Wireless Data Logger Humidity Transmitter Temperature Instrument
Just click the below picture to send us inquiry, to know more, or get the latest catalogue and competitive quotation. Do not hesitate!
With rich experiences in tackling problems, Veinasa aims to provide a package of meteorological solutions to your needs, whatever problems you encounters, Veinasa team always stand by your side.
Veinasa-WSY01 RS485 Measurings Wifi Wireless Data Logger Humidity Transmitter Temperature Instrument
Just click the below picture to send us inquiry, to know more, or get the latest catalogue and competitive quotation. Do not hesitate!
Veinasa-WSY01 RS485 Measurings Wifi Wireless Data Logger Humidity Transmitter Temperature Instrument
