Quick Details
-
Power:
-
18.5KW
-
Place of Origin:
-
China
-
Brand Name:
-
HIGHTOP
-
Maximum Digging Height:
-
4800mm
-
Maximum Digging Depth:
-
3208mm
-
Machine Weight:
-
3810 kg
-
Rated Speed:
-
4.4/2.4km/h
-
Marketing Type:
-
Hot Product 2023
-
Keywords:
-
China brand
-
Emission Standard:
-
Emission Standard
-
Type:
-
In-line,water cooled, 4-stroke ,mechanical pump, normally aspirated
-
Max.torque:
-
97.4N.m/1500rpm
-
Displacement:
-
1.647L
-
Maximum Grade ability:
-
58%
-
Ground pressure:
-
32Kpa
-
Maximum Bucket digging force:
-
30.4KN
-
Maximum Arm digging force:
-
18.2KN
-
Hydraulic system pressure:
-
22.5Mpa
Quick Details
-
Operating Weight:
-
4ton
-
Bucket capacity:
-
0.12m³
-
Engine Brand:
-
kUBOTA D1703 engine
-
Power:
-
18.5KW
-
Place of Origin:
-
China
-
Brand Name:
-
HIGHTOP
-
Maximum Digging Height:
-
4800mm
-
Maximum Digging Depth:
-
3208mm
-
Machine Weight:
-
3810 kg
-
Rated Speed:
-
4.4/2.4km/h
-
Marketing Type:
-
Hot Product 2023
-
Keywords:
-
China brand
-
Emission Standard:
-
Emission Standard
-
Type:
-
In-line,water cooled, 4-stroke ,mechanical pump, normally aspirated
-
Max.torque:
-
97.4N.m/1500rpm
-
Displacement:
-
1.647L
-
Maximum Grade ability:
-
58%
-
Ground pressure:
-
32Kpa
-
Maximum Bucket digging force:
-
30.4KN
-
Maximum Arm digging force:
-
18.2KN
-
Hydraulic system pressure:
-
22.5Mpa

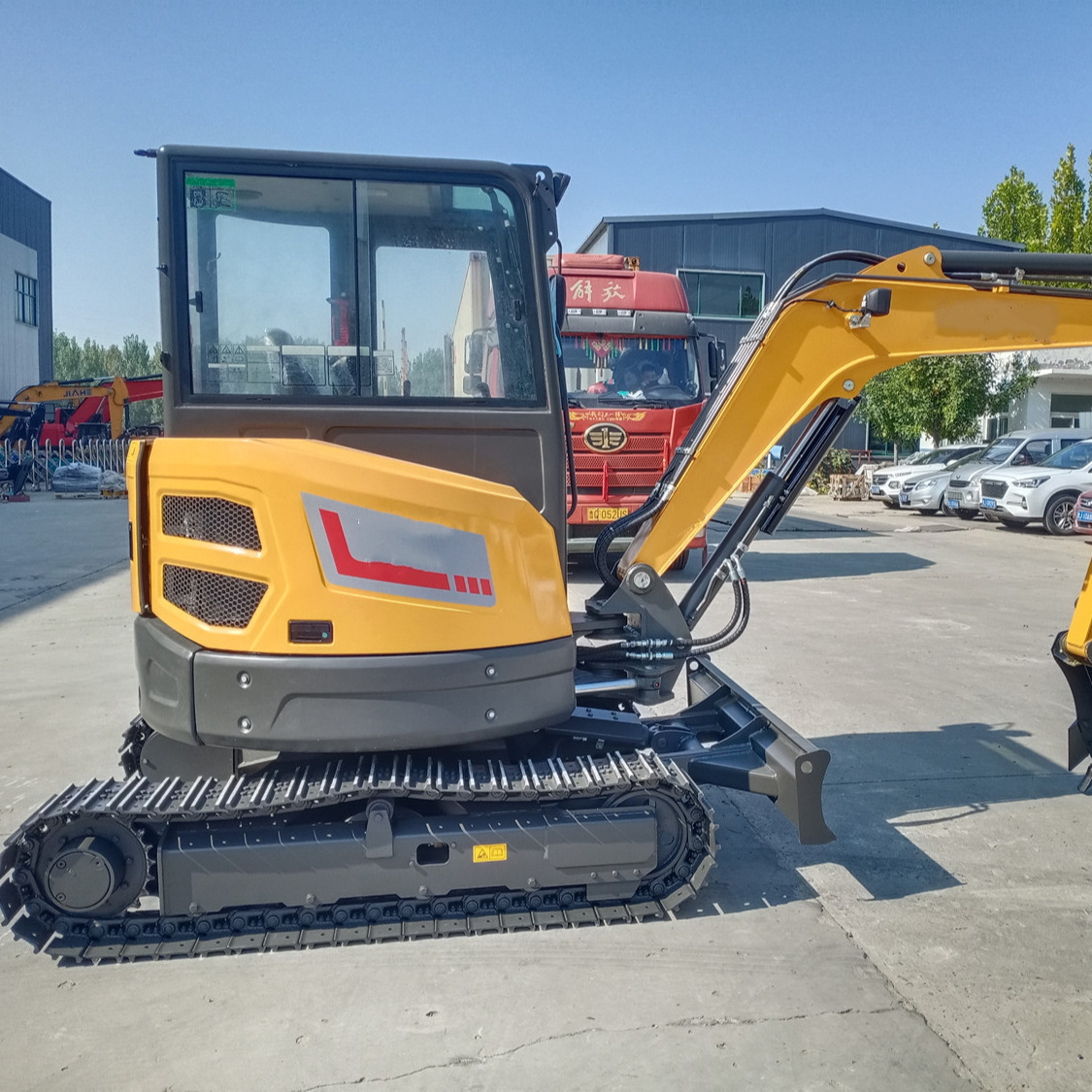

The crawler excavator is a compact excavator ,which matched KUBOTA engine , the boom of excavator can swing to left or right , suitable for different director digging for your working , fitted famous brand main pump and valves , fitted famous brand driving motor and slewing motor, hydraulic pilot servo operation system, with rubber track, with hydraulic broken pipeline system. ensure it can work in different working environments and conditions.
with Kubota D1703 enigne, with cabin，heating and cooling air conditioning ,high and low speed, boom swing, Steel track，Hydraulic walking
1-Japan Kubota D1703 engine , 18.5kw/2200rpm, Euro 5,EPA4
2-China brand pump
3-China brand valves
4-China brand slewing motor
5-China brand driving motor
6-closed cabin
7-Hydraulic pilot servo operation system
8-Steel track :300mm，you can also choose rubber track
9-With hydraulic hammer pipeline system
10-Bucket capacity: 0.12m³
11-With dozer blade
12-with high-low speed
13-with side boom
2-China brand pump
3-China brand valves
4-China brand slewing motor
5-China brand driving motor
6-closed cabin
7-Hydraulic pilot servo operation system
8-Steel track :300mm，you can also choose rubber track
9-With hydraulic hammer pipeline system
10-Bucket capacity: 0.12m³
11-With dozer blade
12-with high-low speed
13-with side boom
add my Whatsapp for discount and quick response
add my Whatsapp for discount and quick response
add my Whatsapp for discount and quick response
24hours on-line services:
Contact: Alisa Kong
Whatsapp:+8613220799195
sales15(@)sinogoldmachine.com
Product Description
Specification
|
ENGINE
|
|
|
|
Emission Standard
|
Euro 5,EPA4
|
|
|
Make /Model
|
KUBOTA /D1703
|
|
|
Power /Rotation speed
|
18.5kw(25HP)@2200rpm
|
|
|
Number of cylinder
|
3
|
|
|
Type
|
In-line,water cooled, 4-stroke ,mechanical pump, normally aspirated
|
|
|
Max.torque
|
97.4N.m/1500rpm
|
|
|
Displacement
|
1.647L
|
|
|
TRACK DRIVING SYSTEM
|
|
|
|
Maximum Travel speed(High/low)
|
4.4/2.4km/h
|
|
|
Width of steel track shoe
|
300mm
|
|
|
Carrier roller(Each side)
|
1
|
|
|
Supporting roller(Each side)
|
4
|
|
|
PERFORMANCE PARAMETER
|
|
|
|
Standard Bucket capacity
|
0.12m³
|
|
|
Swing speed
|
9rpm
|
|
|
Maximum Grade ability
|
58%
|
|
|
Ground pressure
|
32Kpa
|
|
|
Maximum Bucket digging force
|
30.4KN
|
|
|
Maximum Arm digging force
|
18.2KN
|
|
|
Hydraulic system pressure
|
22.5Mpa
|
|
|
Machine weight
|
3810kg
|
|
|
Boom length
|
2535mm
|
|
|
Arm length
|
1400mm
|
|
|
Fuel tank capacity
|
42L
|
|
|
Hydraulic oil tank capacity
|
48.5L
|
|
|
Engine oil capacity
|
7L
|
|
|
MACHINE SIZE
|
|
|
|
Overall dimension (L*W*H)
|
4915mm*1720mm*2525mm
|
|
|
Axle base(Track length on ground)
|
1670mm
|
|
|
Length of rubber track
|
2154mm
|
|
|
Track gauge
|
1420mm
|
|
|
Minimum Ground clearance
|
295mm
|
|
|
Swing radius at tail
|
860mm
|
|
|
Swing radius at front
|
2538mm
|
|
|
Height of blade
|
350mm
|
|
|
WORKING RANGE
|
|
|
|
Maximum Digging height
|
4800mm
|
|
|
Maximum Dumping height
|
3406mm
|
|
|
Maximum Digging depth
|
3208mm
|
|
|
Maximum Vertical digging depth
|
2957mm
|
|
|
Maximum Digging distance
|
5480mm
|
|
|
Maximum digging distance (on ground)
|
5359mm
|
|
|
Minimum swing radius
|
2530mm
|
|
|
Max.height when min.swing radius
|
3655mm
|
|
|
Maximum Lifting height of blade
|
365mm
|
|
|
Maximum Cutting depth of blade
|
385mm
|
|
|
Boom swing angle(Left/Right)
|
55°/65°
|
|
