Quick Details
-
Table Travel (Z) (mm):
-
800 mm
-
Max. Table Load(kg):
-
2500
-
Travel (W-axis) (mm):
-
785 mm
-
Marketing Type:
-
Hot Product
-
Positioning Accuracy (X axis) mm:
-
0.05
-
Positioning Accuracy (Y axis) mm:
-
0.05
-
Positioning Accuracy (Z axis) mm:
-
0.05
-
Range of Spindle Speed(r.p.m):
-
1000 r.p.m
-
Spindle Motor Power(kW):
-
5.5
-
Place of Origin:
-
Henan, China
-
Brand Name:
-
Hokang
-
Voltage:
-
Customer's Requirement
-
Dimension(L*W*H):
-
4062*1900*2770
-
Weight (T):
-
8 T
-
Product name:
-
TX 619 Boring Machine
-
Product Model:
-
TX619
-
Color:
-
Customized
-
Spindle taper:
-
MT5
-
After Warranty Service:
-
Online support
-
Spindle bore:
-
90
-
Certification:
-
ISO CE
-
Local Service Location:
-
None
-
Spindle speed step:
-
18
Quick Details
-
Table Size (mm):
-
11
-
Table Travel (X) (mm):
-
1100 mm
-
Table Travel (Y) (mm):
-
850 mm
-
Table Travel (Z) (mm):
-
800 mm
-
Max. Table Load(kg):
-
2500
-
Travel (W-axis) (mm):
-
785 mm
-
Marketing Type:
-
Hot Product
-
Positioning Accuracy (X axis) mm:
-
0.05
-
Positioning Accuracy (Y axis) mm:
-
0.05
-
Positioning Accuracy (Z axis) mm:
-
0.05
-
Range of Spindle Speed(r.p.m):
-
1000 r.p.m
-
Spindle Motor Power(kW):
-
5.5
-
Place of Origin:
-
Henan, China
-
Brand Name:
-
Hokang
-
Voltage:
-
Customer's Requirement
-
Dimension(L*W*H):
-
4062*1900*2770
-
Weight (T):
-
8 T
-
Product name:
-
TX 619 Boring Machine
-
Product Model:
-
TX619
-
Color:
-
Customized
-
Spindle taper:
-
MT5
-
After Warranty Service:
-
Online support
-
Spindle bore:
-
90
-
Certification:
-
ISO CE
-
Local Service Location:
-
None
-
Spindle speed step:
-
18
Products Overview

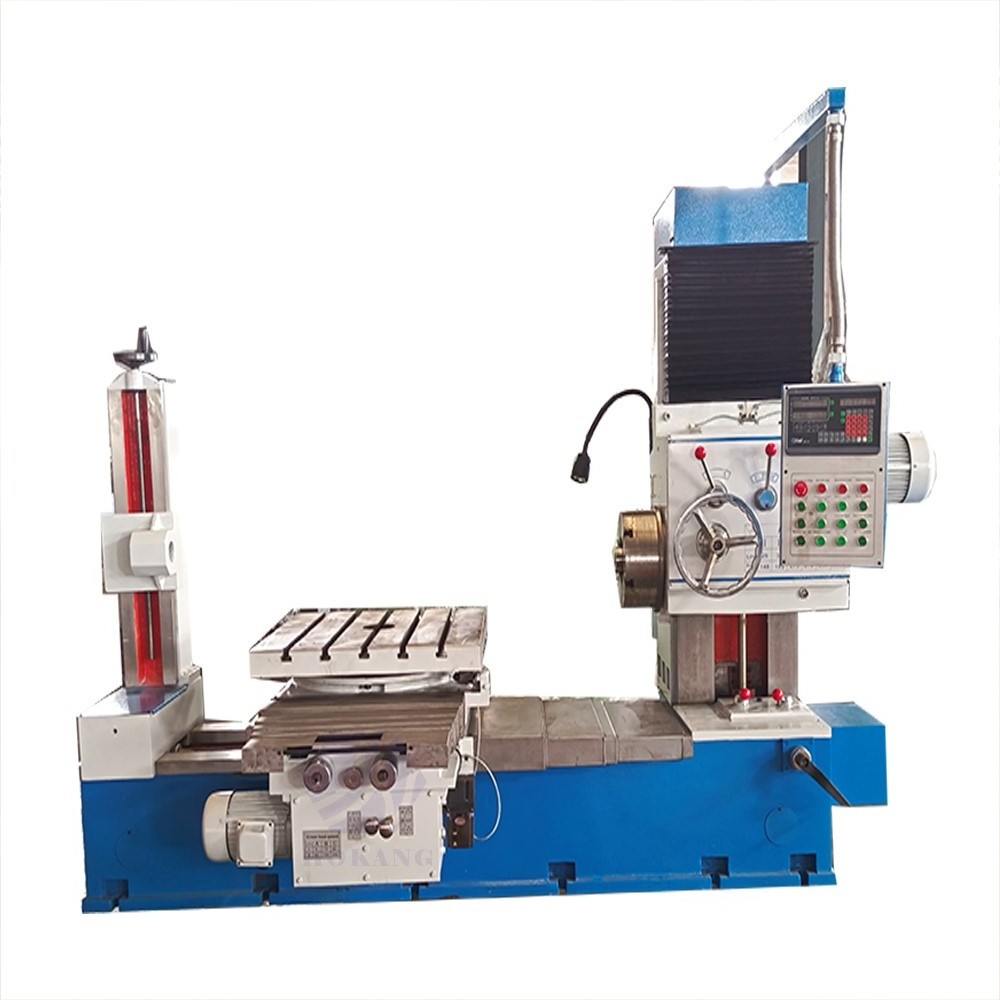

Factory Price TX 619 Horizontal Boring Milling Machine Cylinder Honing Boring Lathe Manufacturer
Boring Milling Machine could do many processing, drilling hole, counterboring, boring, reaming, spot facing, and milling, etc. And the machine has fixed facing head. And the sliding block in the facing head could do radial direction feeding. Besides, it could do large hole boring, outer circle, flat surface turning and groove cutting. The machine is with hydraulic clamping structure with high stability. The guideway protection is stronger than conventional machines. The machine is with advanced design, good rigidity, suitable for heavy cutting, wide speed range for choosing. Machine can be equipped with tailstock and DRO.
The machine travel can be extended through equipped with slide guideway.
The machine travel can be extended through equipped with slide guideway.
Product main features:
1.The appearance of beautiful and generous overall layout coordination
2.Fuselage, vertical column, sliding seat are all rectangular guide, good stability
3.Guide rail to take automatic quenching, high wear resistance
4.Digital synchronous display, intuitive and accurate, can improve the efficiency of low cost.
Specification
|
Specification
|
Units
|
TX619
|
|
Spindle bore
|
mm
|
90
|
|
Spindle taper
|
|
MT5
|
|
Max. allowable torque on spindle
|
N.M
|
785
|
|
Max feed resistance of spindle (axial)
|
N
|
9800
|
|
Spindle speed step
|
|
18
|
|
Spindle speed range
|
r/min
|
8-1000
|
|
Maximum spindle travel (Fast travel 400)
|
mm
|
500
|
|
Max. boring diameter
|
mm
|
300
|
|
Working surface size(L*W)
|
mm
|
1000×900
|
|
Max. load of worktable
|
kg
|
2500
|
|
Longitudinal/transverse travel of worktable
|
mm
|
1100 850
|
|
T-slots size
|
mm
|
22
|
|
T-slots number
|
mm
|
7
|
|
Distance from spindle nose to table surface(min-max)
|
mm
|
0-800
|
|
The main axis of each turn, the main shaft, the spindle box, the work table of feed series
|
|
9
|
|
The main axis of each turn, the spindle, the spindle box, the work table to feed
|
mm/r
|
0.04-4.4
|
|
Fast moving speed of spindle
|
|
1.8
|
|
Fast moving speed of spindle box and working table
|
|
1.8
|
|
Feed speed range
|
mm/min
|
0.058-6.33
|
|
Main motor power
|
kw
|
5.5
|
|
Main motor speed
|
r/min
|
1500
|
|
Fast moving motor power
|
kw
|
2.2
|
|
Fast moving motor speed
|
r/min
|
1500
|
|
Measuring system reading accuracy
|
mm
|
0.005
|
|
Bore accuracy and surface roughness
|
|
1t7
|
|
Overall dimension(L*W*H)
|
mm
|
4062×1900×2770
|
|
N.W
|
kg
|
8000
|
Details Images
Product application:
1. This machine is suitable for machining the parts of single piece or small batch production in the machine shop.
2. Drilling, boring and hinge hole can be carried out on the machine tool.
1. This machine is suitable for machining the parts of single piece or small batch production in the machine shop.
2. Drilling, boring and hinge hole can be carried out on the machine tool.
Spindle of TX619 CNC Boring Machine
Ordinary Spindle can boring , horizontal mill mill slots.Telescopic spindle is optional.
Rotary table of TX 619 CNC Boring Machine
Manual 90°per turn rotary table ; longitudinal and cross auto feed .
Rectangular / Dovetail rail of TX619 CNC Boring Machine
Longitudinal and Vertical are rectangular rail ,Cross is devetail rail.
2 Axis DRO of TX 619 CNC Boring Machine
2 axis digital readout is optional accessory , need extra cost .
