Quick Details
-
Warranty:
-
1 Year
-
Car Model:
-
For Chevrolet LS1
-
Engine Code:
-
For Chevrolet LS1 Engine
-
Size:
-
Standard or Customized
-
Application:
-
For Chevrolet LS1 Crankshaft
-
Material:
-
4340(40CrNiMoA) Billet Steel
-
Type:
-
Billet Crankshaft
-
Heat Treatment:
-
Ionitriding
-
The Journal Nitride Hardness Depth:
-
≤0.3mm
-
Balance Weight:
-
1g.cm
-
LightWeight:
-
Available
-
Logo Printing:
-
Available
-
Superfinishing:
-
Available
-
Custom Design:
-
Available
-
Certification:
-
ISO9001:2000
Quick Details
-
OE NO.:
-
GM LS1
-
Place of Origin:
-
Sichuan, China
-
Brand Name:
-
Adracing
-
Warranty:
-
1 Year
-
Car Model:
-
For Chevrolet LS1
-
Engine Code:
-
For Chevrolet LS1 Engine
-
Size:
-
Standard or Customized
-
Application:
-
For Chevrolet LS1 Crankshaft
-
Material:
-
4340(40CrNiMoA) Billet Steel
-
Type:
-
Billet Crankshaft
-
Heat Treatment:
-
Ionitriding
-
The Journal Nitride Hardness Depth:
-
≤0.3mm
-
Balance Weight:
-
1g.cm
-
LightWeight:
-
Available
-
Logo Printing:
-
Available
-
Superfinishing:
-
Available
-
Custom Design:
-
Available
-
Certification:
-
ISO9001:2000

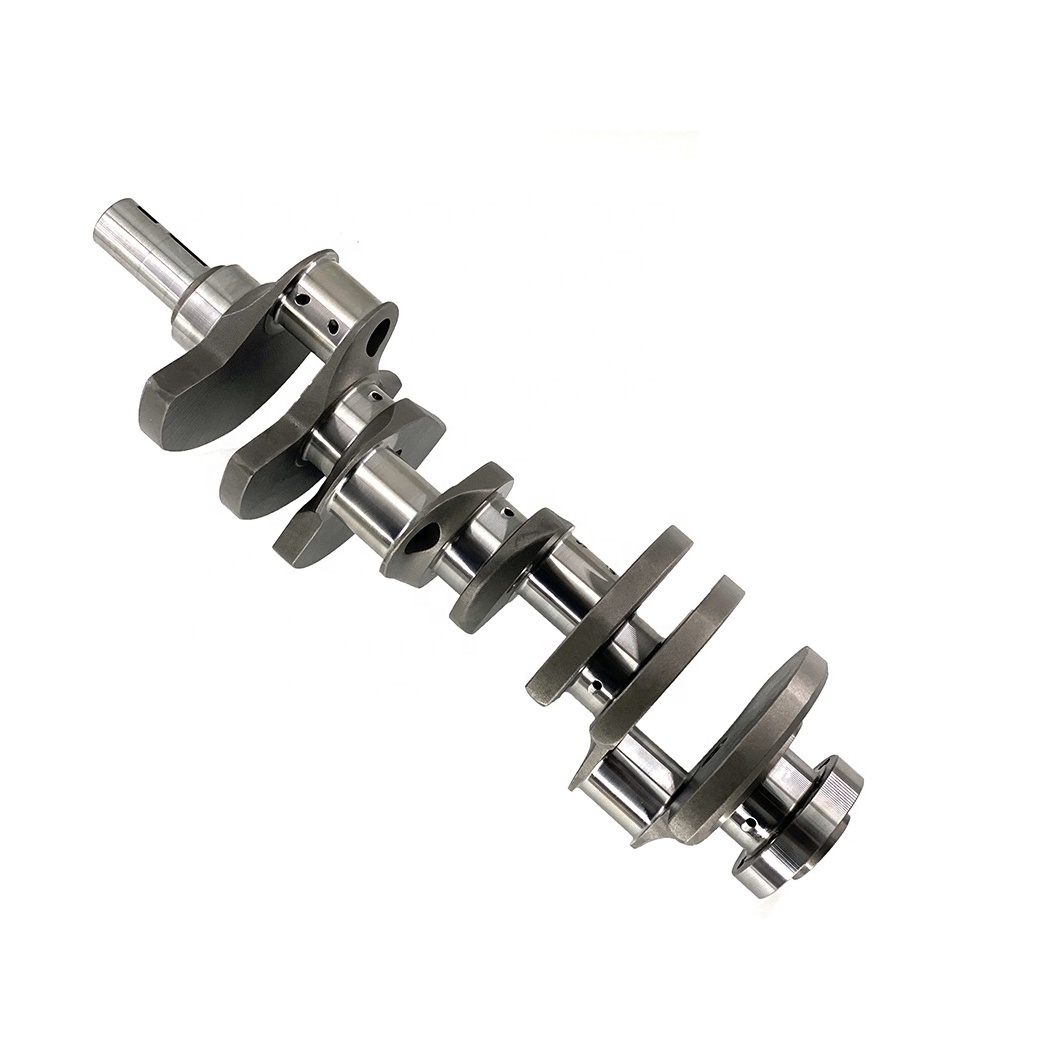

Adracing Performance forged 4340 Steel Stroke Crank shaft Crankshaft For GM LS1 4.000" Stroker Crankshaft
Adracing Performance forged 4340 Steel Stroke Crank shaft Crankshaft For GM LS1 4.000" Stroker Crankshaft
| Adracing Performance forged 4340 Steel Stroke Crankshaft For GM LS1 4.000" Stroker Crankshaft | |
| Material | forged 4340 Steel |
| Design | |
| Engine(s) | LS1 |
| MOQ | 20PCS |
| Packing | Neutral Packing |
| Dimensions | |
| Stoke |
101.6mm/4.000" |
| Main Jourual Diameter | ***mm |
| Rod Jourual Diameter | 53.34mm/2.100" |
Applications:
| LS1 |
For Chevrolet LS1 4.000 V8 |
Technical Features
- Full CNC Machining
- Multi-step heat treatment process
- Knife-edged counterweights
- Gun drilled crank pin and counterweights to reduce weight and rotating mass
- Micro-polishing for longer bearing life
- Heating treatment:HRC34-38
- Peening treatment will be done after balance weight
- magnetic flaw detecting will be done according to standard JB/76729-93
Custom Service
- Our main business is to supply customized service
- we supply customized service based on your sample or drawing
- Price can be estimated if you can send Stroke--rod journal--rod journal width--main journal--main journal width--total length--fan plate bore--width between fan plate bore and photo
