watch: check the appearance, check whether the injection degree of the drag chain is full, whether there are flank, burrs.
smell: Smell the product for odor, good materials are odorless, only those with waste materials will have a pungent temperature.
ask: get to know the source of raw materials to see if they are reliable.
test: Pick it up for a destruction test, and drop it to see if it breaks.
This is a violent method to identify the quality of chain. There are many formal detection methods, such as fatigue testing and
material analysis.
Choose HYCNC for a good towline.
- Product Details
- {{item.text}}
Quick Details
-
Brand:
-
HYCNC
-
Model:
-
18 series
-
Core Components:
-
drag chain
-

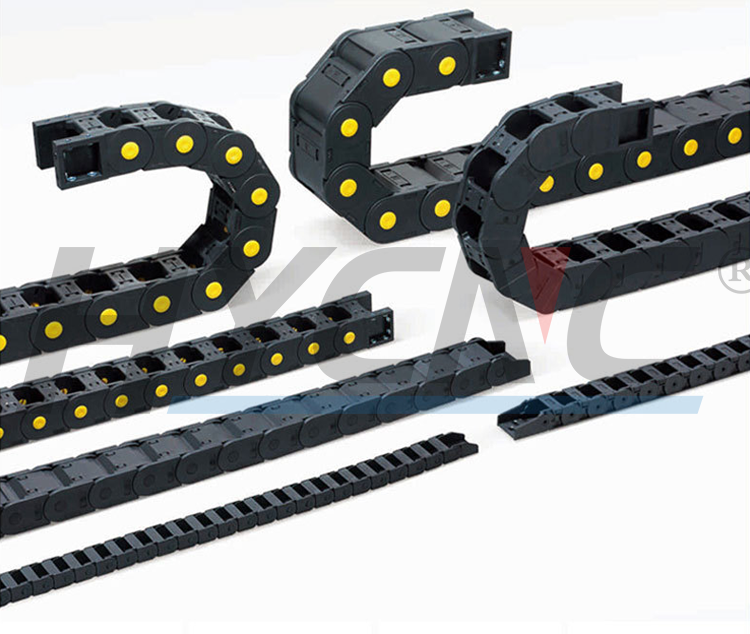

Product Name:
-
Cable Drag Chain
-
Function:
-
Protected Cable
-
Application:
-
Cable Wire Protection
-
Keywords:
-
Plastic Flexible Cable Carrier Chain
-
Structure:
-
Bridge Plastic Cable Chain
-
Color:
-
Black
-
Purpose:
-
Plastic Cable Carrier Protect Cable
-
Usage:
-
CNC Machine Protect Wiire
-
Bend radius:
-
75/100/125/150/175/200/250/300
-
Certificate:
-
CE ISO9001
Quick Details
-
Brand Name:
-
HYCNC
-
Material:
-
Nylon plastic
-
Weight (KG):
-
2
-
Brand:
-
HYCNC
-
Model:
-
18 series
-
Core Components:
-
drag chain
-
Product Name:
-
Cable Drag Chain
-
Function:
-
Protected Cable
-
Application:
-
Cable Wire Protection
-
Keywords:
-
Plastic Flexible Cable Carrier Chain
-
Structure:
-
Bridge Plastic Cable Chain
-
Color:
-
Black
-
Purpose:
-
Plastic Cable Carrier Protect Cable
-
Usage:
-
CNC Machine Protect Wiire
-
Bend radius:
-
75/100/125/150/175/200/250/300
-
Certificate:
-
CE ISO9001
Purchase Notes The unit price per meter of the drag chain below does not include freight. The material of the drag chain is nylon
PA66, the picture is for reference only. The length can be customized according to customer requirements.
PA66, the picture is for reference only. The length can be customized according to customer requirements.
1. The total height of rotation (H) = 2 × bending radius (R) + outer height (h)
2. If customers have any questions, please contact our customer service.
Drag chain parameters
Drag chain parameters
|
Series
|
Inner height *inner width
|
Out height *out width
|
Bending radius
|
|
10 open
|
7*7
|
10*13
|
18/28
|
|
|
10*10
|
14*17.5
|
18/28
|
|
|
10*15
|
16*23
|
18/28
|
|
|
10*20
|
16*28
|
18/28
|
|
|
15*15
|
20*23
|
28/38
|
|
|
15*20
|
20*29
|
28/38
|
|
|
15*30
|
20*39
|
28/38
|
|
|
15*40
|
20*49
|
28/38
|
|
|
15*50
|
20*59
|
28/38
|
|
18/20 open ,and
semi close
|
18*18
|
24*38
|
38/48/75
|
|
|
18*25
|
23*37
|
38/48/75
|
|
|
18*37
|
24*38
|
38/48/75
|
|
|
18*50
|
24*60
|
38/48/75
|
|
|
20*50
|
35*65
|
55/75/100
|
|
|
20*60
|
35*75
|
55/75/100
|
|
|
20*75
|
35*90
|
55/75/100
|
|
|
20*100
|
35*116
|
55/75/100
|
|
|
20*125
|
35*114
|
55/75/100
|
|
|
25*25
|
35*38
|
50/75/100/125
|
|
|
25*38
|
32*55
|
50/75/100/125
|
|
|
25*50
|
35*64
|
50/75/100/125
|
|
|
25*57
|
35*71
|
50/75/100/125
|
|
|
25*77
|
35*91
|
50/75/100/125
|
|
|
25*100
|
35*115
|
50/75/100/125
|
|
close
|
30*
|
45*58
|
55/75/100
|
|
|
30*50
|
45*70
|
55/75/100
|
|
|
30*60
|
45*80
|
55/75/100
|
|
|
30*75
|
45*95
|
55/75/100
|
|
|
30*100
|
45*120
|
55/75/100
|
|
|
30*125
|
45*145
|
55/75/100
|
|
|
35*38
|
55*63
|
75*100/125/150/200
|
|
|
35*50
|
56*75
|
75*100/125/150/200
|
|
|
35*60
|
56*85
|
75*100/125/150/200
|
|
|
35*75
|
50*100
|
75*100/125/150/200
|
|
|
35*90
|
55*115
|
75*100/125/150/200
|
|
|
35*100
|
50*125
|
75*100/125/150/200
|
|
|
35*117
|
50*142
|
75*100/125/150/200
|
|
|
35*125
|
56*150
|
75*100/125/150/200
|
|
|
35*130
|
56*155
|
75*100/125/150/200
|
|
|
35*150
|
55*175
|
75*100/125/150/200
|
|
|
35*154
|
55*179
|
75*100/125/150/200
|
|
|
35*175
|
55*200
|
75*100/125/150/200
|
|
|
35*200
|
55*225
|
75*100/125/150/200
|
|
|
35*250
|
55*275
|
75*100/125/150/200
|
|
|
35*300
|
55*325
|
75*100/125/150/200
|
|
|
45*50
|
65*77
|
100/125/150/200/250/300
|
|
|
45*60
|
65*87
|
100/125/150/200/250/300
|
|
|
45*75
|
65*102
|
100/125/150/200/250/300
|
|
|
45*90
|
65*117
|
100/125/150/200/250/300
|
|
|
45*100
|
65*127
|
100/125/150/200/250/300
|
|
|
45*117
|
64*144
|
100/125/150/200/250/300
|
|
|
45*125
|
65*152
|
100/125/150/200/250/300
|
|
|
45*150
|
65*177
|
100/125/150/200/250/300
|
|
|
45*175
|
65*202
|
100/125/150/200/250/300
|
|
|
45*200
|
65*227
|
100/125/150/200/250/300
|
|
|
45*250
|
65*277
|
100/125/150/200/250/300
|
|
|
45*300
|
65*327
|
100/125/150/200/250/300
|
|
|
55*50
|
75*80
|
150/200/250/300
|
|
|
55*60
|
75*90
|
150/200/250/300
|
|
|
55*75
|
75*105
|
150/200/250/300
|
|
|
55*90
|
75*120
|
150/200/250/300
|
|
|
55*100
|
75*130
|
150/200/250/300
|
|
|
55*117
|
75*147
|
150/200/250/300
|
|
|
55*125
|
75*155
|
150/200/250/300
|
|
|
55*130
|
75*160
|
150/200/250/300
|
|
|
55*150
|
75*180
|
150/200/250/300
|
|
|
55*154
|
75*184
|
150/200/250/300
|
|
|
55*175
|
75*205
|
150/200/250/300
|
|
|
55*200
|
75*230
|
150/200/250/300
|
|
|
55*250
|
75*280
|
150/200/250/300
|
|
|
55*300
|
75*330
|
150/200/250/300
|
|
|
65*50
|
85*82
|
150/200/250/300
|
|
|
65*60
|
85*92
|
150/200/250/300
|
|
|
65*75
|
85*107
|
150/200/250/300
|
|
|
65*90
|
85*122
|
150/200/250/300
|
|
|
65*100
|
85*132
|
150/200/250/300
|
|
|
65*117
|
85*149
|
150/200/250/300
|
|
|
65*125
|
85*157
|
150/200/250/300
|
|
|
65*130
|
85*162
|
150/200/250/300
|
|
|
65*150
|
85*182
|
150/200/250/300
|
|
|
65*154
|
85*186
|
150/200/250/300
|
|
|
65*175
|
85*207
|
150/200/250/300
|
|
|
65*200
|
85*232
|
150/200/250/300
|
|
|
65*250
|
85*285
|
150/200/250/300
|
|
|
65*300
|
85*335
|
150/200/250/300
|
|
|
80*75
|
106*120
|
150/200/250/300/400
|
|
|
80*100
|
106*145
|
150/200/250/300/400
|
|
|
80*125
|
106*170
|
150/200/250/300/400
|
|
|
80*150
|
106*195
|
150/200/250/300/400
|
|
|
80*200
|
106*245
|
150/200/250/300/400
|
|
|
80*250
|
106*295
|
150/200/250/300/400
|
|
|
80*300
|
106*345
|
150/200/250/300/400
|
|
|
80*350
|
106*395
|
150/200/250/300/400
|
How to identify cable chain quality is good or
not?
WSAT methods
WSAT methods
Comments from customers
Company information
Jinan Hongying conk machinery co., Ltd was founded in 2008, where locates in the well-known hometown of CNC machines-Jinan. Shandong Province is a global famous CNC router accessories supplier, who is mainly aiming at providing good quality products and comprehensive assembly solutions, mainly selling: spindle motors, inverters, stepper motors, hybrid servo motors, drives, guide. rails, sliders, gear boxes, racks, water chillers, reducers, acrylic flame polishing machine, CNC control systems, transformers, power supply, vacuum cleaner, dust hood, tool sensor, limit sensor, lubricant oil pump, linear automatic tool changer with cutters, round automatic tool changer with cutters, cylinder, cable chain towline, engraving cutters, control cabinet, vacuum suction. Table and so on. There are 6,651 kinds of parts in stock. Can be delivered on payment day. welcome your inquiry.
Company introduction
Jinan hongyang cnc machinery co., Ltd, founded in 2008 is a global famous supplier for CNC Router accessories. Selling : spindle ,inverters, stepper , hybrid servos, drives, guide rails, sliders, gear box , racks, water chillers, reducers, controller ,transformers, power supply, vacuum cleaner, dust hood, tool sensor, limit sensor, lubricant oil pump, linear ATC with cutters ,round ATC with cutters , cylinder, cable chain towline, engraving cutters, control cabinet, vacuum suction table and so on.
FAQ
1. who are we?
We are based in Shandong, China, start from 2014,sell to North America(5.00%),Eastern Europe(4.50%),Africa(3.00%). There are total
about 101-200 people in our office.
2. how can we guarantee quality?
Always a pre-production sample before mass production;
Always final Inspection before shipment;
3.what can you buy from us?
spindle motor, stepper motorman router drive, frequency inverter, NC control system
4. why should you buy from us not from other suppliers?
HYCNC is professional CNC router parts wholesaler , e experience more than 12 years We not only produce CNC parts also selling
other famous brand CNC parts. Just tell your needing, we will help you buy with factory price and quality.
5. what services can we provide?
Accepted Delivery Terms: FOB,CIF,EXW,FCA,Express Delivery；
Accepted Payment Currency:USD,CNY;
Accepted Payment Type: T/T,MoneyGram,Credit Card,PayPal,Western Union, Cash;
Language Spoken:English,Chinese
