Quick Details
-
Model Number:
-
KCD1-224G
-
Max. Current:
-
6A/10A
-
Mechanical Life:
-
50000 Cycles
-
Item:
-
12v rocker switch
-
Safely approvals:
-
CQC,TUV,RoHS,CE
-
Function:
-
DPST
-
Lamp color:
-
White\Orange\Red\Blue\Green
-
Material:
-
PA66/PC
-
Housing color:
-
Black\White\Customized
-
Ambient termperature:
-
T105/55
-
Mounting size:
-
Dia:20mm
-
Degree of protection:
-
IP67
-
Light voltage:
-
12volt
-
Certification:
-
ce,tuv
Quick Details
-
Max. Voltage:
-
125V/250V
-
Place of Origin:
-
Zhejiang, China
-
Brand Name:
-
JINGHAN
-
Model Number:
-
KCD1-224G
-
Max. Current:
-
6A/10A
-
Mechanical Life:
-
50000 Cycles
-
Item:
-
12v rocker switch
-
Safely approvals:
-
CQC,TUV,RoHS,CE
-
Function:
-
DPST
-
Lamp color:
-
White\Orange\Red\Blue\Green
-
Material:
-
PA66/PC
-
Housing color:
-
Black\White\Customized
-
Ambient termperature:
-
T105/55
-
Mounting size:
-
Dia:20mm
-
Degree of protection:
-
IP67
-
Light voltage:
-
12volt
-
Certification:
-
ce,tuv

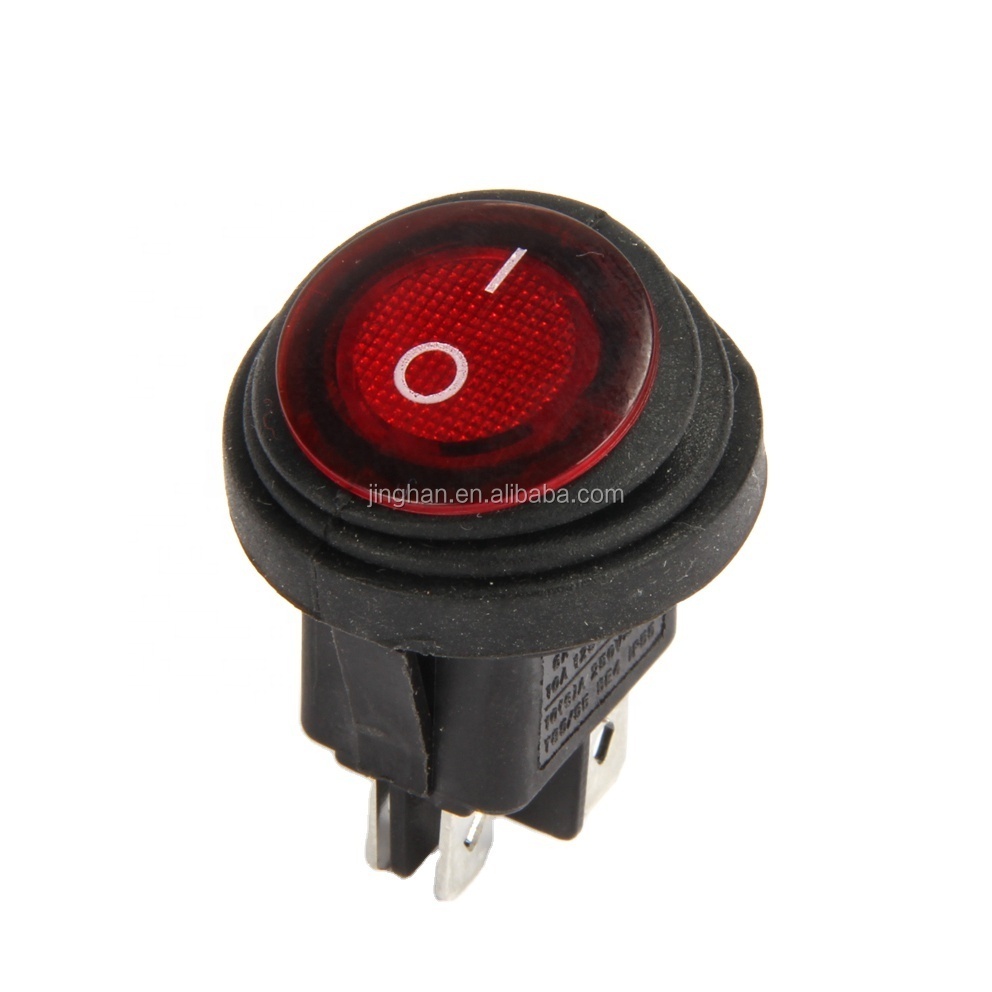

KCD1 waterproof IP67 round rocker switch t85 4 pins 12v LED on/off switch t125
Main technical characteristics
|
Rocker Switch |
|||||
|
Rating |
6A 250VAC;10A 125VAC |
Operating Temp. |
-25+85°C |
||
|
Contact Resistance |
50MΩ Max |
Electrical life |
50000 Cycles |
||
|
Insulation Resistance |
100MΩ Min |
Withstand Voltage |
1500VAC/5S |
||
|
Material |
Housing & Light bracket |
PA66 |
Contacts |
Copper with compound silver |
|
|
Push button |
PC |
Terminals & Mid pins |
Copper with silver plated |
||
|
Waterproof cover(Optional) |
PVC |
Side pins |
Brass with silver plated |
||
