Quick Details
-
Place of Origin:
-
China
-
Panel Dimensions:
-
1065-1200/540-800/18mm
-
Panel Efficiency:
-
23%
-
Module:
-

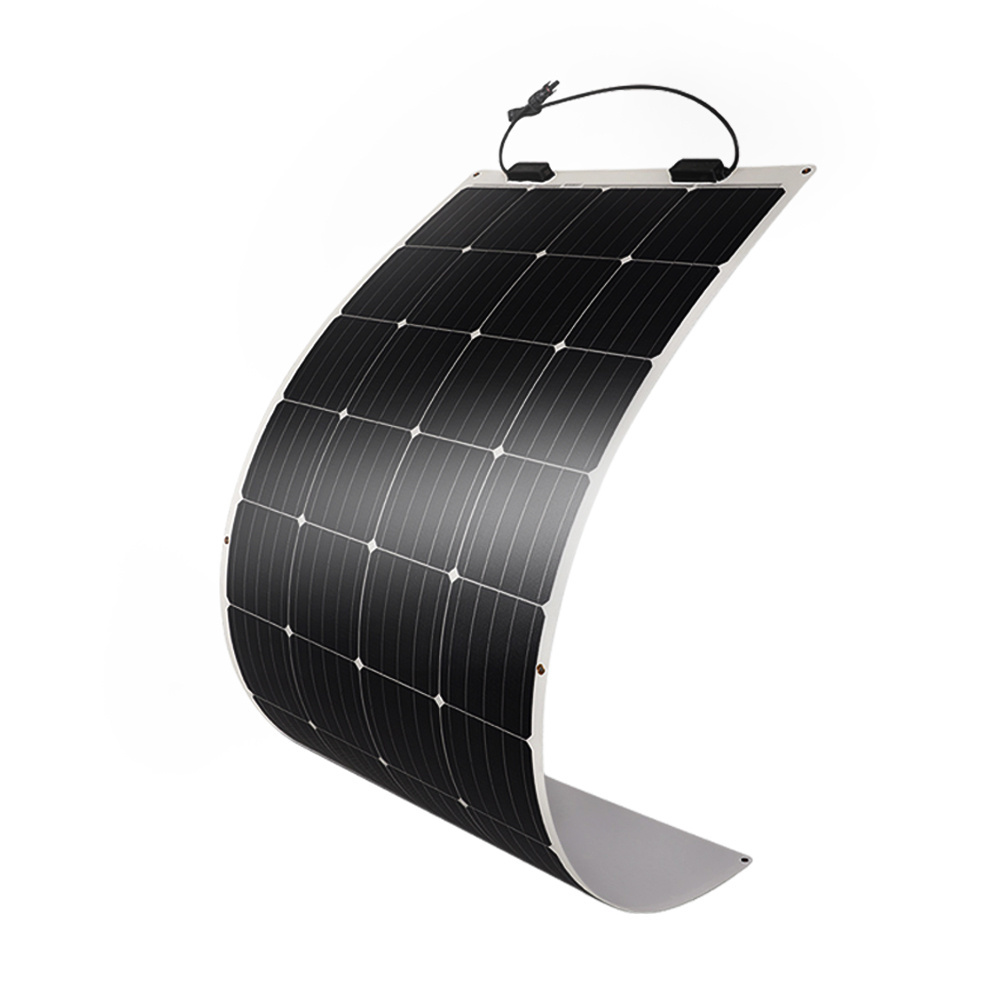

Flexible Solar Panel
-
Cell Orientation:
-
24/36/54/72 Cells
-
Weight:
-
2-4.5kg
-
Backsheet:
-
White
-
Power tolerance:
-
0/+3
-
Maximum system voltage:
-
500VDC
-
Junction Box Type:
-
IP 68
-
Cell Type:
-
Mono/Poly
-
Application:
-
Boat RV Camping
-
Keyword:
-
Monocrystalin Solar Panel
Quick Details
-
Cell size:
-
125mmx125mm
-
Brand Name:
-
Sunpal
-
Model Number:
-
Flexible Solar Panel
-
Place of Origin:
-
China
-
Panel Dimensions:
-
1065-1200/540-800/18mm
-
Panel Efficiency:
-
23%
-
Module:
-
Flexible Solar Panel
-
Cell Orientation:
-
24/36/54/72 Cells
-
Weight:
-
2-4.5kg
-
Backsheet:
-
White
-
Power tolerance:
-
0/+3
-
Maximum system voltage:
-
500VDC
-
Junction Box Type:
-
IP 68
-
Cell Type:
-
Mono/Poly
-
Application:
-
Boat RV Camping
-
Keyword:
-
Monocrystalin Solar Panel
Product Description
Product Paramenters
|
Maximum Rating Power
|
W
|
100
|
120
|
180
|
200
|
250
|
260
|
|||||
|
Open Circuit Voltage
|
V
|
21.58
|
24.48
|
37.30
|
40.88
|
49.35
|
49.48
|
|||||
|
Maximum Power Voltage
|
V
|
18.72
|
20.52
|
31.29
|
34.2
|
41.55
|
41.70
|
|||||
|
Short Circuit Current
|
A
|
6.85
|
6.75
|
6.81
|
6.22
|
6.39
|
6.43
|
|||||
|
Maximum Power Current
|
A
|
5.87
|
5.84
|
5.75
|
5.84
|
6.14
|
6.23
|
|||||
|
Module Efficienty
|
%
|
22
|
21.33
|
21.33
|
21.33
|
22.67
|
231
|
|||||
|
Power Tolerance
|
%
|
0/+3
|
0/+3
|
0/+3
|
0/+3
|
0/+3
|
0/+3
|
|||||
|
Solar Cell
|
|
32 mono 125*125mm
|
36 mono 125*125mm
|
54 mono 125*125mm
|
60 mono 125*125mm
|
72 mono 125*125mm
|
|
|||||
|
Dimensions
|
|
1065*540*18mm
|
1200*540*18mm
|
1200*800*18mm
|
1320*800*18mm
|
1580*800*18mm
|
|
|||||
|
Weight
|
|
2.0kg
|
2.4kg
|
3.1kg
|
3.55kg
|
4.5kg
|
|
|||||
|
Nominal Operating Temp
|
|
45 ± 2 ℃
|
|
|
|
|
|
|||||
|
Series Fuse Rating
|
|
15A
|
|
|
|
|
|
|||||
|
Front Materials
|
|
Epoxy Fiberglass Board
|
|
|
|
|
|
|||||
Professional packaging
Project
Certifications
Payment Term
|
Payment Term
|
T/T
|
EXW
|
30% T/T in advance, paid the balance before shipment
|
|
|||
|
|
|
FOB
|
|
|
|||
|
|
|
CFR(CNF)
|
30% T/T in advance, paid the balance against copy of B/L
|
|
|||
|
|
|
CIF
|
|
|
|||
|
|
L/C
|
L/C amount above 50,000 usd, we can accept L/C at sight
|
|
|
|||
|
|
Weight Union
|
Amount Lower than 5000usd
|
|
|
|||
|
Delivery Time
|
7-10 Working Days After Receiving Payment
|
|
|
|
|||
