Horizontal Turning Lathe Machine
-
Machine Type:
-
Horizontal CNC lathe
-
Product name:
-

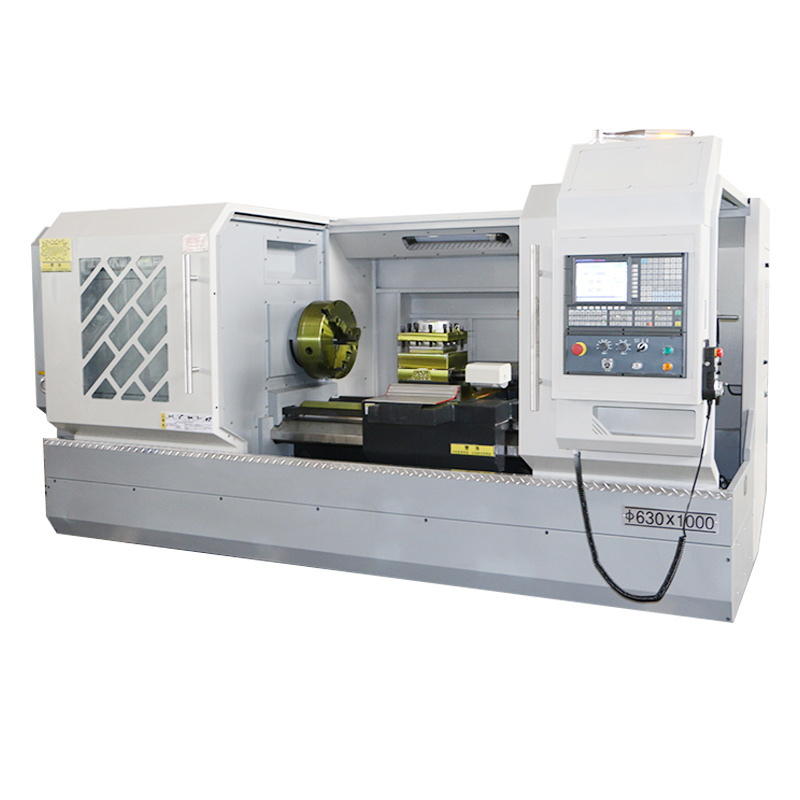

CK6163 CNC lathe
-
Chuck:
-
Four-jaw hydraulic chuck 1000 mm(optional)
-
Spindle Speed Ranges:
-
17-653r/min
-
Product Material:
-
High quality cast iron
-
After-sales Service Provided:
-
Video technical support, Online support
-
Max. Processing length:
-
6000mm
Quick Details
-
Type:
-
Horizontal
-
Max. Length of Workpiece (mm):
-
2000
-
Max. Weight of Workpiece(kg):
-
2000
-
Spindle Motor Power(kW):
-
15
-
Max. Turned Length (mm):
-
2000
-
Place of Origin:
-
Hebei, China
-
Dimension(L*W*H):
-
7300*1800*1800mm
-
Brand Name:
-
Shenzhong
-
Model Number:
-
CK6163
-
Voltage:
-
Customer's Requirement
-
CNC Control System:
-
GSK 980TDi
-
Weight (KG):
-
6800
-
Applicable Industries:
-
Construction engineering manufacturing, Shipbuilding, Automotive industry, Machinery Repair Shops, Manufacturing Plant
-
Keyword:
-
Horizontal Turning Lathe Machine
-
Machine Type:
-
Horizontal CNC lathe
-
Product name:
-
CK6163 CNC lathe
-
Chuck:
-
Four-jaw hydraulic chuck 1000 mm(optional)
-
Spindle Speed Ranges:
-
17-653r/min
-
Product Material:
-
High quality cast iron
-
After-sales Service Provided:
-
Video technical support, Online support
-
Max. Processing length:
-
6000mm
Products Description
Appearance size
Main performance characteristics
：
1. High rigidity bed The CK6163 meter machine tool bed is made of high-quality cast iron with a reasonable layout of internal ribs. The bed is an integral type with a guide rail width of 550mm and good rigidity. The sliding guide rail adopts medium frequency quenching, with a deep quenching layer and a hardness of over HRC50 °. The joint surface between the drag plate and the bed is laminated with plastic. 2. Introduction to the main transmission
The spindle of this series of machine tools adopts manual four speed stepless speed regulation, with a spindle speed of (1st gear 20-80 rpm/2nd gear 50-200 rpm/3rd gear 100-330 rpm/4th gear 220-790 rpm), high torque, and good reliability. Optional hydraulic four-speed stepless speed regulation, with the spindle speed regulation being 17-70 rpm in first gear, 38-155 rpm in second gear, 75-293 rpm in third gear, 170-653 rpm in fourth gear. The spindle bearing adopts high-precision bearings, ensuring smooth operation and high accuracy.
3. Feed system The Z-axis feed system of the machine tool uses a servo motor to drive the ball screw, while the X-axis feed system uses a servo motor to directly drive the ball screw through a coupling. The main screw of the machine tool adopts high-precision screw, and the lubrication points of the feed system are regularly lubricated by the centralized lubrication system. 4. Knife holder This series of lathes adopts a vertical four station electric tool holder. The tool body on the four station tool holder does not need to be lifted during rotation, eliminating the interference of coolant and cutting on the tool holder during rotation, and has high sealing performance. 5. Electrical system (1) CNC system and servo drive system The CNC numerical control system of machine tools adopts a wide range of numerical control systems, which can adapt to efficient, high-speed, and high-precision mechanical processing, and has the characteristics of convenient operation, complete functions, and high reliability. (2) The electrical cabinet adopts a fully enclosed type
Main technical parameters
|
Technical parameters of CK6163 series high-quality CNC lathe
|
|
|
||
|
Maximum swivel diameter of the bed
|
mm
|
630
|
||
|
Maximum swing diameter on the tool holder
|
mm
|
350
|
||
|
Maximum workpiece length
|
mm
|
1000/1500/2000/3000/4000/5000
|
||
|
Spindle through-hole diameter
|
mm
|
105
|
||
|
CNC controller system
|
|
GSK980TDI controller system
|
||
|
Number of spindle speed stages
|
|
Hydraulic four-speed stepless speed regulation
|
||
|
Spindle speed range（Manual fourth gear）
|
r/min
|
1st gear 20-80 rpm/2nd gear 50-200 rpm/3rd gear 100-330 rpm/4th gear 220-790 rpm
|
||
|
Spindle speed range（Hydraulic fourth gear）
|
r/min
|
1st gear 17-70 rpm/2nd gear 38-155 rpm/3rd gear 75-293 rpm/4th gear 170-653 rpm
|
||
|
Main motor power
|
|
15KW
|
||
|
X-axis travel
|
mm
|
315
|
||
|
Z-axis travel
|
mm
|
1000/1500/2000/3000/4000/5000
|
||
|
Rail width
|
mm
|
550
|
||
|
Maximum load-bearing
|
T
|
2
|
||
|
Standard chuck (optional)
|
|
Diameter 400mm three-jaw manual chuck
|
||
|
Total weight1000
|
T
|
4 tons (5% up and down)
|
||
|
Total weight1500
|
T
|
4.5 tons (5% up and down)
|
||
|
Total weight2000
|
T
|
4.7 tons (5% up and down)
|
||
|
Total weight3000
|
T
|
5.3 tons (5% up and down)
|
||
|
Total weight4000
|
T
|
6 tons (5% up and down)
|
||
|
Total weight5000
|
T
|
6.8 tons (5% up and down)
|
||
|
Machine size（Length * width * height）1000
|
mm
|
3300*1800*1800
|
||
|
Machine size（Length * width * height）1500
|
mm
|
3800*1800*1800
|
||
|
Machine size（Length * width * height）2000
|
mm
|
4300*1800*1800
|
||
|
Machine size（Length * width * height）3000
|
mm
|
5300*1800*1800
|
||
|
Machine size（Length * width * height）4000
|
mm
|
6300*1800*1800
|
||
|
Machine size（Length * width * height）5000
|
mm
|
7300*1800*1800
|
||
PRODUCT CONFIGURATION
CNC controller system 。
The standard control system is GSK980TDI system, which can adapt to efficient, high-speed and high-precision processing.
Chuck。
The standard machine tool chuck is a 400mm 3-jaw manual chuck that can be optionally configured according to your needs.
Center shelf 。
The 300-well center frame is standard and can be customized to your needs.
Four-station electric tool holder 。
This series of lathes adopts vertical four-station electric tool holder, which does not need to lift the cutter body when the four-station tool holder rotates, and has high sealing.
Manual tail stock
。
The tailstock consists of two parts: the upper body and the lower body. The upper body is equipped with a sleeve and a sleeve fast and slow movement mechanism. The tailstock sleeve cone hole of the machine is 6 on the Mohs scale and can be used with a Mohs 5 tip if attached to the cone sleeve. The tailstock of the machine tool has the characteristics of high precision, strong bearing capacity, long maintenance cycle and reliable work.
Guide rail
.
CK6163 machine bed is made of high-quality cast iron, the internal rib layout is reasonable, the bed adopts split type, the guide rail width is 550mm, and the rigidity is good. The sliding guide rail adopts medium frequency quenching, the hardening layer is deep, the hardness is above HRC50°, and the joint surface of the drag plate and the bed is pasted.
