2" Fig 1502 2202 Hammer union/Weco seals/Buna/Rubber/Gasket seals

FOB Reference Price: Get Latest Price

≥10 Pieces

US $1.03

≥500 Pieces

US $0.95

≥1000 Pieces

US $0.91

Free Inquiry

Customized Request

Product Details

{{item.text}}

Quick Details

Model Number:: Figure 1502

Company type:: Manufacturer

Product name:: Hammer union seals

Material:: NBR, FKM, HNBR

Hardness:: 70-95 Shore A

Working pressure:: 15000psi

Standard or Nonstandard:: Standard

Factory visit:: Available

Sample:: Available

Service:: Stock, OEM or ODM

Application:: Union, Valve, Pressure manifold

Quick Details

Size:: 1-10"

Place of Origin:: Hebei, China

Brand Name:: SIPAITUO

Model Number:: Figure 1502

Company type:: Manufacturer

Product name:: Hammer union seals

Material:: NBR, FKM, HNBR

Hardness:: 70-95 Shore A

Working pressure:: 15000psi

Standard or Nonstandard:: Standard

Factory visit:: Available

Sample:: Available

Service:: Stock, OEM or ODM

Application:: Union, Valve, Pressure manifold

Products Description

Hammer Union Seals are used in hammer union-style pipe connections to establish flow lines and prevent leakage. Hammer Unions are made by Weco, FMC, and Kemper Valve among others and are used in the oil & gas industry, in steel mills, chemical plants, strip mining, and marine dredging.

We SIPAITUO offers Hammer Union Seals in Nitrile (also known as NBR, Buna, or Buna-N) for standard service, as well as
FKM (also known as fluoroelastomer) for increased temperature and chemical resistance or HNBR for Sour Gas Service or
PTFE. In addition to the standard molded rubber seals, anti-extrusion rings can be reinforced in brass Hammer Union Seals or stainless steel Hammer Union Seals.

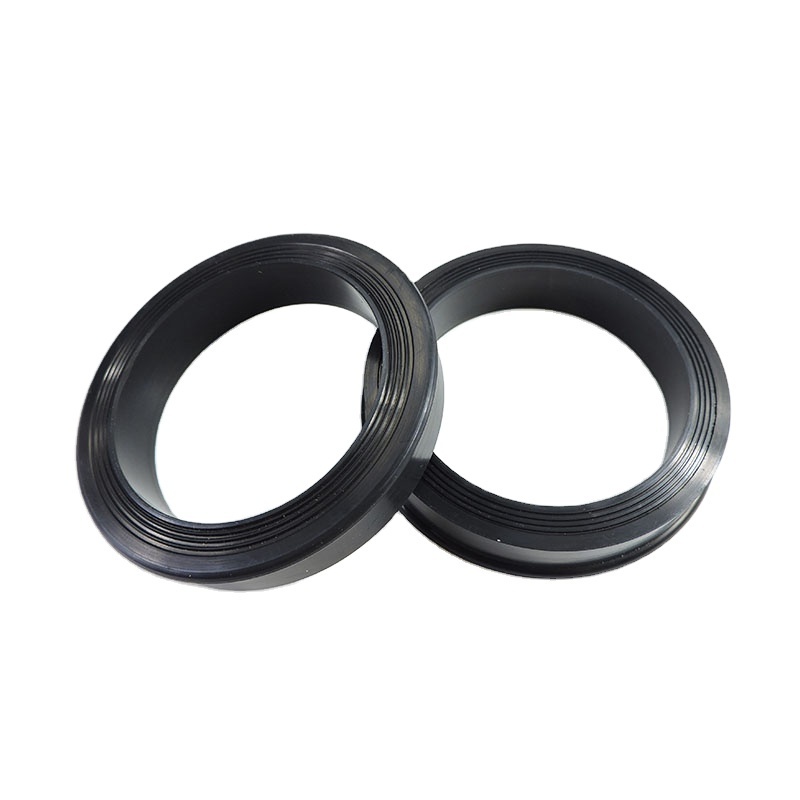

Hammer Union Seals

With Stainless Steel Ring

With Brass Ring

We offer Hammer Union Seals in any of the following varieties:

1. 1-4 inch

2. NBR, FKM, HNBR, and PTFE material

3. For cold weather applications we offer both a low temperature rated (-50°C to +120°C) NBR and HNBR elastomers.

3. All elastomer seals are 70-95 durometer

4. Various colors

5. We can provide NBR HNBR and FKM are reinforced with brass or stainless steel anti-extrusion ring.

Features

1. The hammer union seal is exposed to the gases and fluids that flow through the coupling making the choice of the optimum rubber
compound critical.

2. Recommended service: Cementing, fracturing, acidizing, testing, and choke-and-kill lines.
3. Hammer unions use a special rubber seal ring for positive sealing with minimum torque. This ring snap-fits into a detent within the hub to prevent its loss. Hammer unions are available in 1 inch to 4 inch line pipe sizes.
