Quick Details
-
Application::
-
Gold Recovery Processing
-
Drive Mode:
-
AC Motor
-
Production Capacity:
-
Depends on Type
-
Function:
-
Gold Extraction
-
Dimension(L*W*H):
-
Depends on Type
-
Height demensions(mm):
-
1665
-
Effective Volume(m3):
-
0.58
-
Max length demensions(mm):
-
1300
Quick Details
-
Weight (KG):
-
5000
-
Place of Origin:
-
Henan, China
-
Brand Name:
-
Hengchang
-
Application::
-
Gold Recovery Processing
-
Drive Mode:
-
AC Motor
-
Production Capacity:
-
Depends on Type
-
Function:
-
Gold Extraction
-
Dimension(L*W*H):
-
Depends on Type
-
Height demensions(mm):
-
1665
-
Effective Volume(m3):
-
0.58
-
Max length demensions(mm):
-
1300
Product Description
Design High Capacity Rate Gold Leaching Tank High-Efficiency Agitation Tank for Mines
I. Introduction of
Rate Gold Leaching Tank High-Efficiency Agitation Tank for Mines
The mixing tank is driven by a motor triangle belt to drive the impeller to rotate. It fully mixes the drug and the slurry to increase the reaction time of the drug.
The mixing bucket is suitable for a variety of metal ores. It is mainly used for stirring before flotation. It fully mixes the medicament and the pulp. It can also be used for stirring other non-metallic minerals.
gold leaching tank design
/
gold leaching tank capacity
/

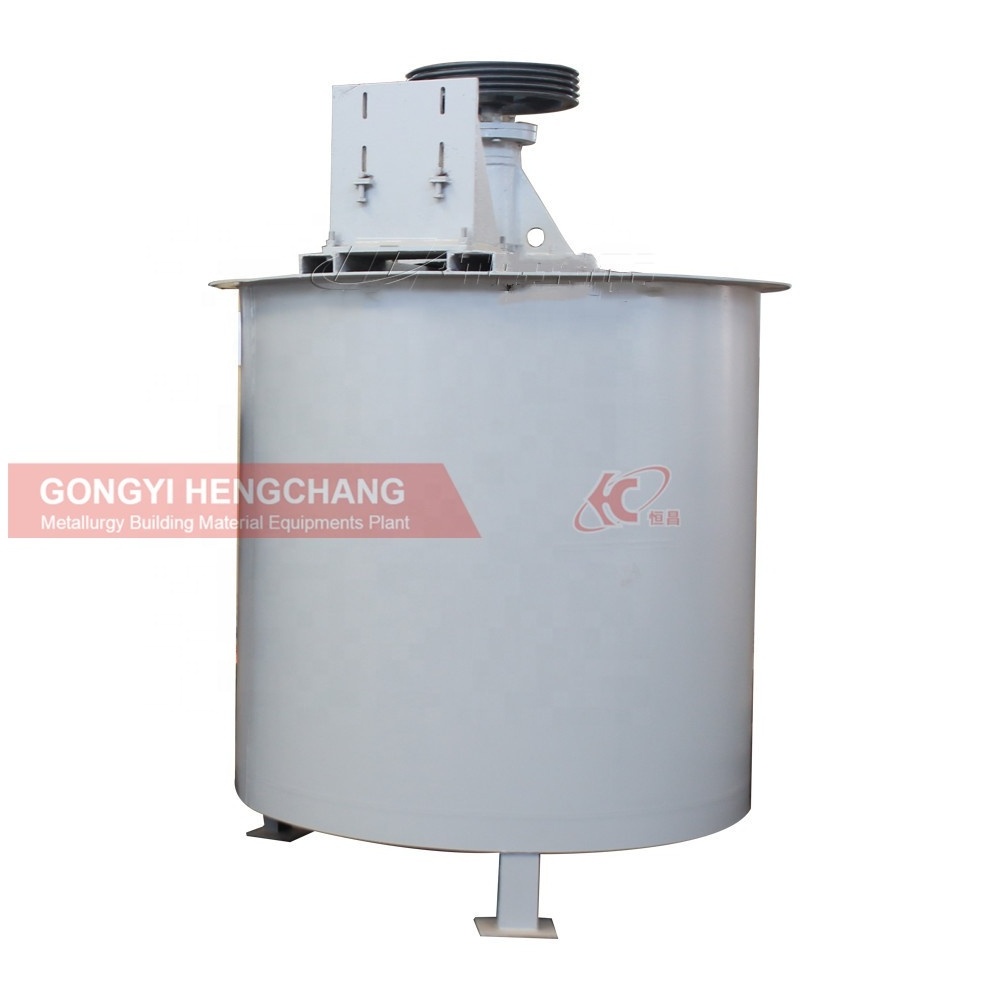

Gold Leaching Tank
II.Working Principle of
Rate Gold Leaching Tank High-Efficiency Agitation Tank for Mines
It is used for the concentration of not more than 30% (calculated by weight) and the particle size of the fixed component is less than 1mm. It is in the form of a flat-bottomed barrel radial circulation spiral impeller mechanical stirring type. Stirring bucket instructions Before use, fasten the bolts on the pump body before turning the pump shaft to make it flexible, and then start the machine. Others are the same as flotation machines. Consumable parts: impeller, stator.
The medicine mixing tank is mainly suitable for preparing various medicines in flotation plants.
When the stirring tank is working, under the rotation of the impeller, the ore slurry and the medicament produce large and small cyclic movements, so that the ore slurry and the medicament in the entire tank are uniformly mixed, and the mixed suspension is discharged from the overflow port. The working principle of the mixing bucket is as follows
III.
Application of
Rate Gold Leaching Tank High-Efficiency Agitation Tank for Mines
It is used when the concentration of the fixed component is not more than 30% (by weight) and the particle size of the fixed component is less than 1mm. It is in the form of a flat-bottomed barrel radial circulation spiral impeller with mechanical stirring.
It is mainly used in the front of the flotation machine. The main function is to make the agent and ore slurry fully contact before the flotation operation, and quickly play the role of the agent. It is mainly used for the concentration of not more than 100 30% and the ore concentration is not greater than 3.5 percent of the slurry and flotation agent stirring.
gold leaching tank design / gold leaching tank capacity / Gold Leaching Tank
Technical Parameter
|
Model
|
Tank size (mm)
|
Volume (m3)
|
Impeller dia. (mm)
|
Impeller speed (r/min)
|
Power (kw)
|
Weight (kg)
|
|
SJ-2025
|
Φ2000×2500
|
6
|
900
|
52
|
2.2
|
2100
|
|
SJ-2531
|
Φ2500×3150
|
13.14
|
935
|
52
|
2.2
|
3100
|
|
SJ-3030
|
Φ3000×3000
|
18
|
1130
|
41
|
4
|
4150
|
|
SJ-3035
|
Φ3000×3500
|
21
|
1130
|
43
|
4
|
4400
|
|
SJ-3535
|
Φ3500×3500
|
30
|
1310
|
52
|
5.5
|
4900
|
|
SJ-3540
|
Φ3500×4000
|
32.7
|
1310
|
52
|
5.5
|
5200
|
gold leaching tank design / gold leaching tank capacity / Gold Leaching Tank
V.
Main Features
of
Rate Gold Leaching Tank High-Efficiency Agitation Tank for Mines
1.Compact structure, good tightness, and set up ash shield at the inlet to prevent water mist from cross-linking;
2. Stir evenly, the blades are fan-shaped, and the contact area with the medium is large when stirring;
3. The nozzles are arranged in multiple rows, the water volume is even and adjustable;
4. The residual ash rate is low, and the watershed at the bottom of the box ensures no dead corners in the equipment.
5. Mine mixing drum equipment has advanced performance, stable finished product quality, uniform mixing, and rapid discharge.
