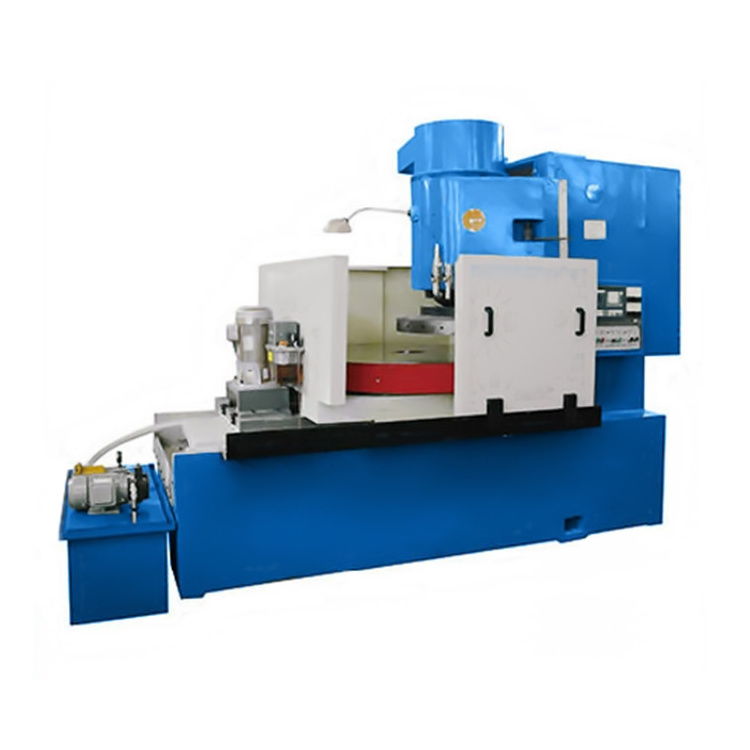

Advanced Well Function Vertical Spindle Surface Grinding Machine Surface Grinder
Advanced Well Function Vertical Spindle Surface Grinding Machine Surface Grinder
Advanced Well Function Vertical Spindle Surface Grinding Machine Surface Grinder
Advanced Well Function Vertical Spindle Surface Grinding Machine Surface Grinder
Advanced Well Function Vertical Spindle Surface Grinding Machine Surface Grinder
Advanced Well Function Vertical Spindle Surface Grinding Machine Surface Grinder
Advanced Well Function Vertical Spindle Surface Grinding Machine Surface Grinder
Advanced Well Function Vertical Spindle Surface Grinding Machine Surface Grinder

Advanced Well Function Vertical Spindle Surface Grinding Machine Surface Grinder

FOB Reference Price: Get Latest Price
≥1 Sets
US $15500
≥10 Sets
US $14560
≥50 Sets
US $12890
≥500 Sets
US $10320
Free Inquiry
Customized Request
  • Product Details
  • {{item.text}}

Quick Details

Voltage:
380V or as your requirements
Dimension(L*W*H):
mm
Weight (KG):
2000
Power (kW):
50
After-sales Service Provided:
Engineers available to service machinery overseas
Name:
vertical spindle surface grinding machine
Color:
as your requirement
Benchdia:
800
Max grinding size (dia x H):
1000x400
Emery tle size:
wp25x80x150
Bench rotational speed:
11.12
Bench shifting distance:
570
Bench, shifting speed:
3.7

Quick Details

Year:
latest date
Place of Origin:
Jiangsu, China
Brand Name:
SMAC
Voltage:
380V or as your requirements
Dimension(L*W*H):
mm
Weight (KG):
2000
Power (kW):
50
After-sales Service Provided:
Engineers available to service machinery overseas
Name:
vertical spindle surface grinding machine
Color:
as your requirement
Benchdia:
800
Max grinding size (dia x H):
1000x400
Emery tle size:
wp25x80x150
Bench rotational speed:
11.12
Bench shifting distance:
570
Bench, shifting speed:
3.7
Recommend Products
Products Description

The series of machine tools have made greater improvement on bed and grinding head rigidity; increase one set of electronic oil pumping system each for bottom guide rail and upright post guide rail of work bench, can pump oil automatically and oil volume is adjustable.upright post adopts three-point adjustment,compace structure,work bench is round powerful electromagnetic chuck,magnetic froce is uniform, precision is stable, power is big, electronic magnetizing and demagetizing ,and equips with coolant purification device.
Characteristic






The surface grinding machine with vertical spindle and round table is to grind the end face of grinding wheel ,is a high
efficiency,precise and stable machine tool.



The workpiece is absorbed or clamped on the worktable by the rectangular electromagnetic worktable, and makes longitudinal reciprocating motion. The grinding wheel carriage can move intermittently along the dovetail guide rail of the sliding seat ( see machine tool guide rail ), and the sliding seat can move intermittently vertically along the guide rail of the column. The grinding accuracy is high when grinding the workpiece with the grinding wheel.
Specifcation
Main Specitications
17300 VSG80
Benchdia
800
Attraction scope of electorma gnetic bench
80-120
Max grinding size (dia x H)
1000x400
Emery tle size
wp25x80x150
Bench rotational speed
11.12
Bench shifting distance
570
Bench, shifting speed
3.7
Bench ratational motor ponrer
2.4/1.5
Bench. shifting motor poier
1.1
Grind heed main shaft rotational speed
740
Grind heed mobile shifting speed
0.15
Grind heed mitor poer
45
Grind heed lift motor pamrer
0.55
Vertical movement of Grind Heed Per hend diae
0.4
Vertical movement of Grind Heed Per Scale diae
0.01
Vertical movement of Grind Heed PerTum diae
1
Pump mator power
0.25
Machinachine toal tatal powver
50
Màchine tool total iweight (APPR
7500
