Quick Details
-
Brand Name:
-
WESHINE
-
Model Number:
-
VS-9901
-

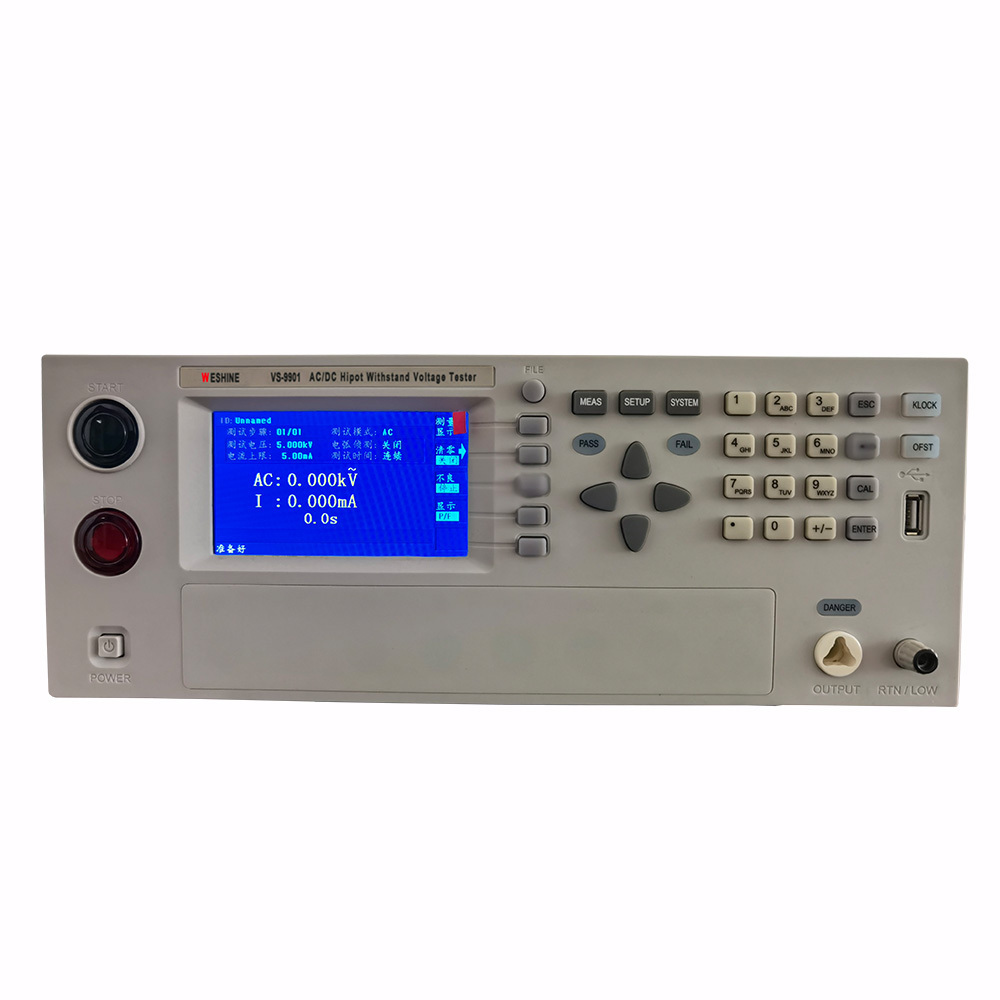

Product Name:
-
DIELECTRIC WITHSTAND TESTER
-
AC Output Voltage:
-
0.05 to 5 kV
-
AC Output Current:
-
30 mA
-
IR Output Voltage:
-
0.05 to 1 kV
-
Dimension and Weight:
-
330 mm * 110 mm * 420 mm, 20kg
-
Certification:
-
CE,EMC,LVD,ISO
-
IR Test Range:
-
1 MΩ to 50 GΩ
-
DC Output Current:
-
10 mA
-
DC Output Voltage:
-
0.05 to 6 kV
-
Typical Application:
-
ACV/DCV/IR/SCAN
Quick Details
-
Warranty:
-
1 YEAR
-
Power:
-
Electronic
-
Place of Origin:
-
Hebei, China
-
Brand Name:
-
WESHINE
-
Model Number:
-
VS-9901
-
Product Name:
-
DIELECTRIC WITHSTAND TESTER
-
AC Output Voltage:
-
0.05 to 5 kV
-
AC Output Current:
-
30 mA
-
IR Output Voltage:
-
0.05 to 1 kV
-
Dimension and Weight:
-
330 mm * 110 mm * 420 mm, 20kg
-
Certification:
-
CE,EMC,LVD,ISO
-
IR Test Range:
-
1 MΩ to 50 GΩ
-
DC Output Current:
-
10 mA
-
DC Output Voltage:
-
0.05 to 6 kV
-
Typical Application:
-
ACV/DCV/IR/SCAN
Discount Benefits
Product Description
Product introduction：
Hipot testing, in conjunction with earth bond testing (where applicable) form the core tests for electrical safety testing on a production line.
The hipot test, derived from the term High Potential Test, is a direct application of a high voltage to a unit under test. The
test voltage is usually much higher than the usual operating voltage in order to stress the dielectric properties of the device under test.
test voltage is usually much higher than the usual operating voltage in order to stress the dielectric properties of the device under test.
The test is designed to detect that gaps or clearances between conductive parts and earth (or the product chassis) are sufficient and that degradation, such as pin holes, cracks in insulation and other protection devices have not resulted through production processes and or wear and tear, for example, a live conductor has not accidentally been crushed between the mating parts of the chassis, causing it to become live when switched on.
Breakdown in the insulation will result in current flowing across the test points of the Hipot tester, this current flow is
commonly known as leakage. If this leakage current is too high the item under test is deemed to be unsafe and the test will fail.
commonly known as leakage. If this leakage current is too high the item under test is deemed to be unsafe and the test will fail.
WESHINE invented the VS-9900 series of test instruments has been built to provide a cost effective, yet powerful solution to hipot testing, whether on a production line or in a laboratory environment for compliance testing purposes. With the ability to perform either 5kV AC or 6kV DC dielectric strength tests and up to 500VA AC power output the VS-9900 series can aid testing to many international safety standards including IEC, EN, UL and CSA to name but a few. With many features, the VS-9900 series ensures testing is performed accurately, efficiently and safely.
For further information on
W
eshine
's Service Solutions, contact our
24/7
online sales representative on alibaba.com
or you may
>>
Click Here
(for PC)
or Click "
Send Inquiry
"
at the bottom
(for APP)
to get quotes from
W
eshine
.
|
Product Name
|
DIELECTRIC WITHSTAND TESTER
|
|
|
||
|
AC Output Voltage
|
0.05 to 5 kV
|
|
|
||
|
AC Output Current
|
30 mA
|
|
|
||
|
IR Output Voltage
|
0.05 to 1 kV
|
|
|
||
|
Dimension and Weight
|
330 mm * 110 mm * 420 mm, 20kg
|
|
|
||
|
IR Test Range
|
1 MΩ to 50 GΩ
|
Typical Application
|
ACV/DCV/IR/SCAN
|
||
|
DC Output Current
|
10 mA
|
DC Output Voltage
|
0.05 to 6 kV
|
||
