Quick Details
-
Place of Origin:
-
Hebei, China
-
Model Number:
-
XJ-P001
-
Brand Name:
-
XUEJIE
-
Color:
-
Blue/white/Customized Color
-
Capacity:
-
15L 20L 25L 30L 35L
-
Shape:
-
Square Shape
-
Application:
-
Oil Storage/Chemical Drum/Water/Beer/Liquid Storage
-
Logo:
-
Customrized Logo
-
Packing:
-
PP Bag
-
Sample:
-
Availableble
-
Min.wall thickness(mm):
-
>1.5
-
Filling Diameter(mm):
-
60±0.2
Quick Details
-
Material:
-
Plastic
-
Type:
-
Barrel
-
Usage:
-
Water / Milk / Beer / Gasoline / Paint
-
Place of Origin:
-
Hebei, China
-
Model Number:
-
XJ-P001
-
Brand Name:
-
XUEJIE
-
Color:
-
Blue/white/Customized Color
-
Capacity:
-
15L 20L 25L 30L 35L
-
Shape:
-
Square Shape
-
Application:
-
Oil Storage/Chemical Drum/Water/Beer/Liquid Storage
-
Logo:
-
Customrized Logo
-
Packing:
-
PP Bag
-
Sample:
-
Availableble
-
Min.wall thickness(mm):
-
>1.5
-
Filling Diameter(mm):
-
60±0.2
Product Description

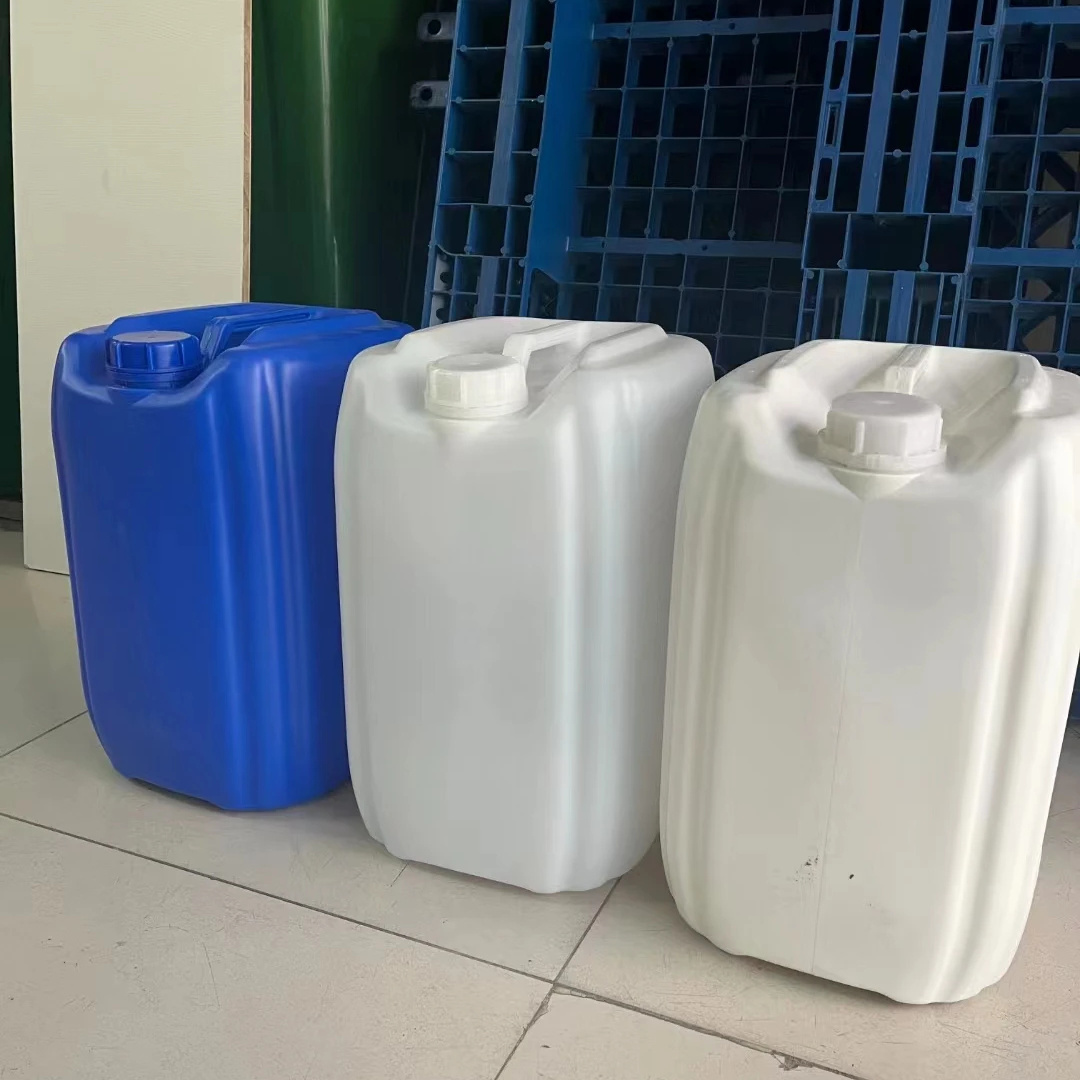

Drum: extrusion blow molding, blue.
Bungs: HDPE material; A variety of sealing materials optional; Two-way ventilation installation.
|
Sealed Stacking Barrel 20L
|
|
|
|
|||
|
Production
|
A
|
B
|
C
|
|||
|
Brimful volume(L)
|
≥22
|
≥22
|
≥22
|
|||
|
Dimension(mm)
|
290*240*400
|
285*260*395
|
285*225*460
|
|||
|
Total weight(g)
|
1300±20
|
1300±20
|
1300±20
|
|||
|
Min.wallthickness(mm)
|
≥1.5
|
≥1.5
|
≥1.5
|
|||
|
Filling diameter(mm)
|
60±2
|
60±2
|
60±2
|
|||
|
UN approal
|
3H1/Y1.5/100/**
CN/372301 鲁XK16-204-00117 |
|
|
|||
|
Sealed Stacking Barrel 25L
|
|
|
||
|
Production
|
B
|
C
|
||
|
Brimful volume(L)
|
≥26.5
|
≥26.5
|
||
|
Dimension(mm)
|
290*240*460
|
280*280*438
|
||
|
Total weight(g)
|
1500±20
|
1500±20
|
||
|
Min.wallthickness(mm)
|
≥1.5
|
≥1.5
|
||
|
Filling diameter(mm)
|
60±0.2
|
60±0.2
|
||
|
UN approa
|
3H1/Y1.5/100/**
CN/372301 鲁XK16-204-00117 |
|
||
|
SEALED STACKING BARREL 30L
|
|
|
|
|||
|
Production
|
A
|
B
|
C
|
|||
|
Brimful volume(L)
|
≥30.5
|
≥31
|
≥31
|
|||
|
Dimension(mm)
|
305*266*480
|
331*287*495
|
310*270*480
|
|||
|
Total weight(g)
|
1700±20
|
1700±20
|
1700±20
|
|||
|
Min.wallthickness(mm)
|
≥1.5
|
≥1.5
|
≥1.5
|
|||
|
Filling diameter(mm)
|
60±2
|
60±2
|
60±2
|
|||
|
UN approal
|
3H1/Y1.5/100/**
CN/372301 鲁XK16-204-00117 |
|
|
|||
Product characteristic：
Outing standing nature of chemical stability and anti-drops.
Easy removal of residues, dumping Angle of 20°.
Residual material is less than 5ml, easy cleaning, can be used repeatedly, cost saving.
Save storage space, 20ft container can loading 880 PCS (pallet) or 1080 PCS (bulk).
Suitable for -18°~60 co° condition.
Outing standing nature of chemical stability and anti-drops.
Be safety for transportation,especially for dangerous chemicals.
Wall thickness distribution is more uniform and reasonable, so as to improve the anti-drop performance of the product.
Easy removal of residues, dumping Angle of 20°.
Residual material is less than 5ml, easy cleaning, can be used repeatedly, cost saving.
Save storage space, 20ft container can loading 880 PCS (pallet) or 1080 PCS (bulk).
Suitable for -18°~60 co° condition.
