Quick Details
-
Product name:
-

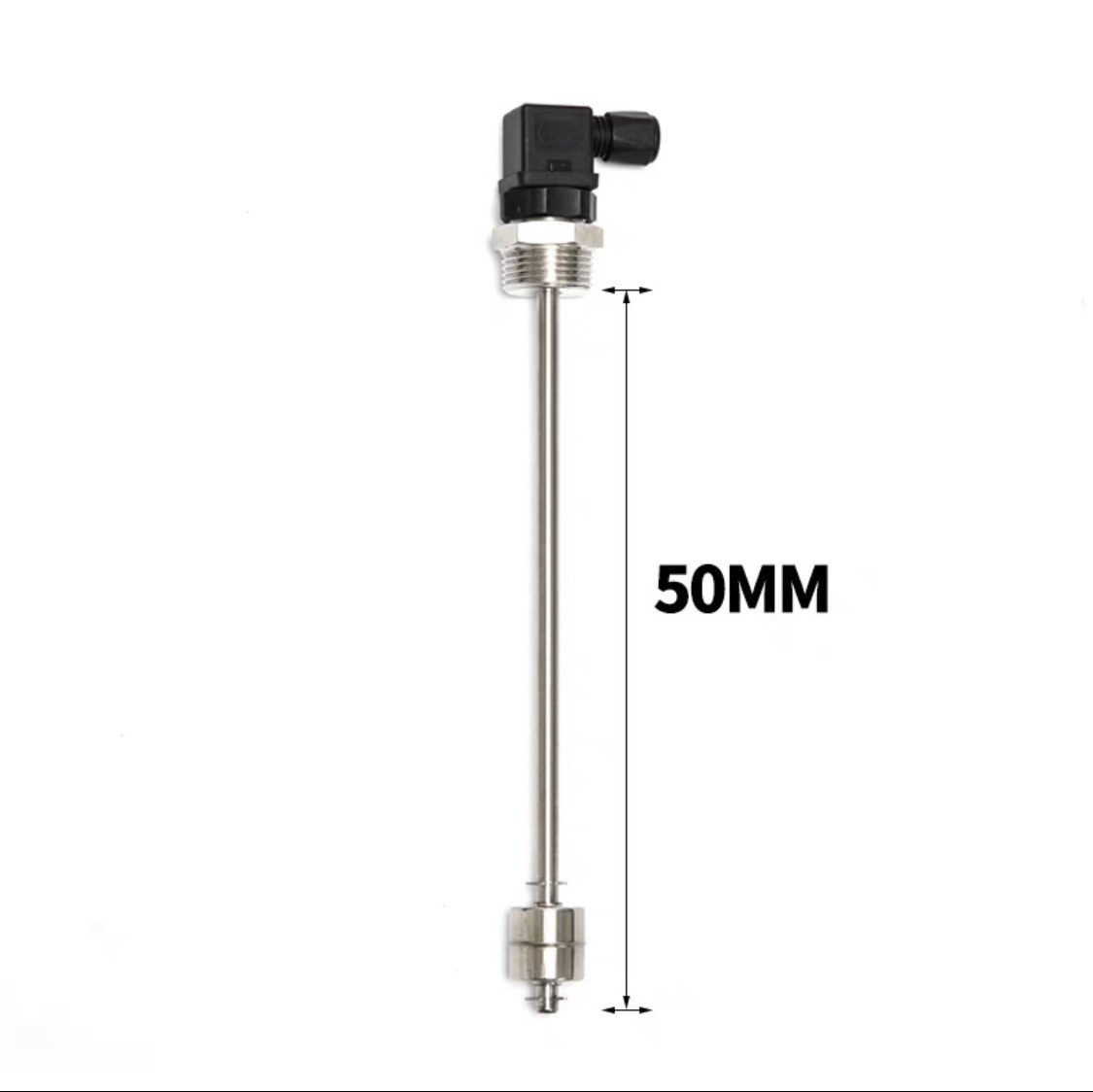

water tank liquid level switch
-
Material:
-
SS304
-
Thread:
-
G1
-
Diameter of probe:
-
8mm
-
Thread material:
-
SS304
-
Work temp:
-
-30-120C
-
Max Voltage:
-
100V /220V
-
Float ball material:
-
SS304
-
Max Resistance:
-
100Ohm
-
Max Current:
-
0.5A/1.5A
Quick Details
-
Grade:
-
Industrial
-
Warranty:
-
3 years
-
Place of Origin:
-
Jiangsu, China
-
Product name:
-
water tank liquid level switch
-
Material:
-
SS304
-
Thread:
-
G1
-
Diameter of probe:
-
8mm
-
Thread material:
-
SS304
-
Work temp:
-
-30-120C
-
Max Voltage:
-
100V /220V
-
Float ball material:
-
SS304
-
Max Resistance:
-
100Ohm
-
Max Current:
-
0.5A/1.5A
Product advantage
* Hersman connector, clear line sequence, easy connection
* Stainless steel 304, laser welded float
Product Parameter
|
Max Power
|
10VA
|
50VA
|
|
Max Voltage
|
100V AC/DC
|
220V AC/DC
|
|
Max Current
|
0.5A
|
1.5A
|
|
Max Resistance
|
100 Ohm
|
100 Ohm
|
|
Temperature Rating
|
-30--+120°C
|
-30--+120°C
|
|
Float Ball Material
|
SS304
|
SS304
|
|
Probe Material
|
SS304
|
SS304
|
Product wiring
Float switch can not directly control the solenoid valve or high-power relay, AC contactor, etc., need to add a small relay transition
* At low water level, the magnetic reed switch is in a closed state, which is called normally closed
* When the water level is low, the magnetic reed switch is in a normally open state, which is called normally open
* When the water level is low, the magnetic reed switch is in a normally open state, which is called normally open
Product Photos
About Us
Yancheng Hengsheng Inernational Trade Co.,Ltd integrates development and manufacturing in-house,founded in 1983.Our main product is PWHT mahcines and related accessories.And also offer different types temperature sensor and electrode drying oven.After doing business with other countries for more than 20 years, we have rich experience in dealing with any process in the trade. Our company promises: ''reasonable prices, short production time and satisfactory after-sales service ''We hope to cooperate with more customers for mutual development and benefits. Welcome potential buyers to contact us.
Packing & Delivery
FAQ
1. What's your idea about your offer?
We have factory,we offer high quality products with proper price.
2.What's the MOQ?
The MOQ is one pc,but our price base on the qty,if you need more,the price will be cheap.
3.What type of payment do you have available?
We accept TT and L/C,as sample order,the Western union,Moneygram and Aliexpress is available.
4.What's the delivery time?
3-4days after we get the payment.
5.How to make an order ?
Tell us the size and qty you need or tell us where to use,our technician will suggest the size you need.
Then pay to our bank account,we will arrange the production and send you ASAP.
