Quick Details
-
Brand Name:
-
Dafang Dingsheng
-
Model Number:
-
DFDS-KB
-
Product Name:
-

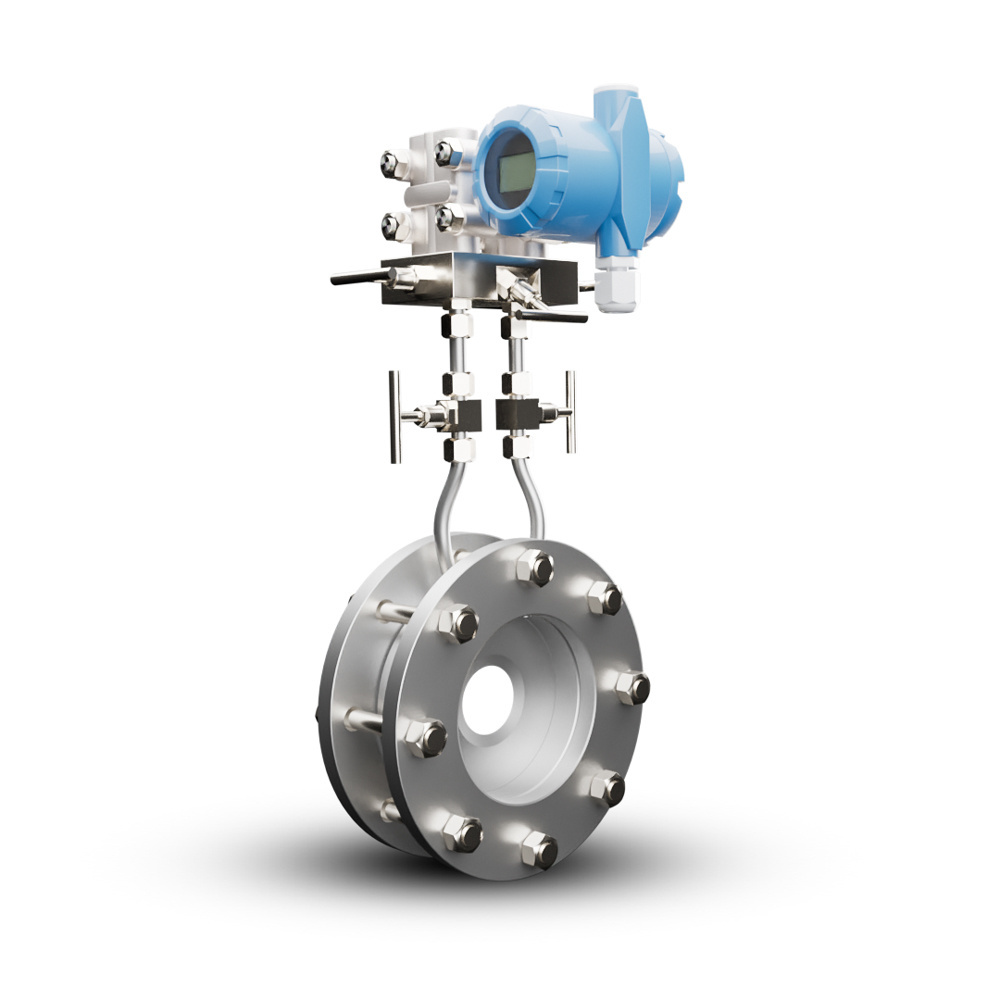

Stainless steel flange propane gas restriction orifice plate flowmeter
-
Keywords:
-
orifice plate
-
Medium:
-
Gas/Steam/Liquid
-
Diameter:
-
DN50~DN1000
-
Nominal pressure:
-
≤40MPa
-
Power supply:
-
220VAC/ 24VDC
-
Connection:
-
Flange Connection
-
Medium temperature:
-
300 ~350
-
Flow range:
-
0.2~32m/s
-
Size:
-
DN15mm~DN6000mm
Quick Details
-
Type:
-
Variable Area Water Flowmeters, Variable Area Air & Gas Flowmeters
-
Warranty:
-
1 year
-
Place of Origin:
-
Henan, China
-
Brand Name:
-
Dafang Dingsheng
-
Model Number:
-
DFDS-KB
-
Product Name:
-
Stainless steel flange propane gas restriction orifice plate flowmeter
-
Keywords:
-
orifice plate
-
Medium:
-
Gas/Steam/Liquid
-
Diameter:
-
DN50~DN1000
-
Nominal pressure:
-
≤40MPa
-
Power supply:
-
220VAC/ 24VDC
-
Connection:
-
Flange Connection
-
Medium temperature:
-
300 ~350
-
Flow range:
-
0.2~32m/s
-
Size:
-
DN15mm~DN6000mm
ANSI Flange stainless steel propane gas liquid flow meter restriction orifice plate flowmeter price
orifice plate flow meter
Product Description -------------------------------------------
The annular orifice plate is suitable for various fluid (gas, steam, liquid) media, such as: saturated steam, Hot steam, various gas (coke oven gas, blast furnace gas, mixed gas, city gas, water gas, semi-water gas, etc.), compressed air, Gas, burner exhaust, cooling water, heavy oil, residual oil, fuel oil, condensate, various corrosive chemical solutions, etc.
The standard orifice plate is simple, firm, easy to install and use, etc.
The throttling device should meet the following fluid conditions:
1 .
The fluid must be filled with tubing and the flow is continuous.
2.
The fluid must be a Newtonian fluid (such as ordinary water, acid, alkali solution, superheated steam, various gases, dry saturated steam), and the fluid should not undergo a phase change near the throttling device (from liquid to gas or vice versa) The fluid should be single-phase (gas phase or liquid phase) or can be considered as single-phase [for example, there are no more than 2% (mass component) uniformly dispersed solid particles in the gas stream, and no more than 5% in the liquid stream) (volume component) uniformly dispersed bubbles.
3.
Before the fluid flows through the throttling device, its flow must be parallel to the axis of the pipe, and there must be no swirling or eccentric flow, and no pulsating or critical flow.
Advantages ---------------------------------------------------
- Simple structure ,strong,convenient installation.
- Can measure all kinds of flow of gas ,steam and liquid,and wide usage.
- Don’t need real flow calibration ,with moderate precision.
- Attachment is complete ,it can design and calculation for the user.
- It can be equipped with Intelligent differential pressure transmitter, and realize temperature ,pressure compensation or the scene concentric line communicating mode.
| Taking pressure mode | Corner joint (Riting chamber or drill alone )taking pressure, Flange taking pressure, D-D/2 taking pressure |
| Nominal pressure | ≤40Mpa,(when ≥20Mpa ,it can use high pressure lens orifice plate or welding type) |
| Accuracy(Inderterminacy) | ±0.5% ~ ±1.5% |
Stainless steel flange propane gas restriction orifice plate flowmeter price
Stainless steel flange propane gas restriction orifice plate flowmeter price
Stainless steel flange propane gas restriction orifice plate flowmeter price
-
How is the flow meter warranty?
We could provide 12~18 months warranty for your flow meter .
-
Could you provide me the shortest lead time?
Our shortest lead time is 5~7 days after your payment.
-
How to pay for that ?
Of course we could accept T/T,Paypal,Trade Assurance Order. You will get full protection for your orders ,more details kindly click Trade Assurance .
-
Do you accept OEM?
Yes, we accept OEM.
-
How to deal with the after-sales?
We will have professional engineers to answer your questions during installation and use.
