Quick Details
-
Mounting Type:
-
PCB Mount
-
Description:
-
Sense Position With Magnet/Counting/Anti theft
-
Manufacturing Date Code:
-
By Actual Production Date
-
Model Number:
-

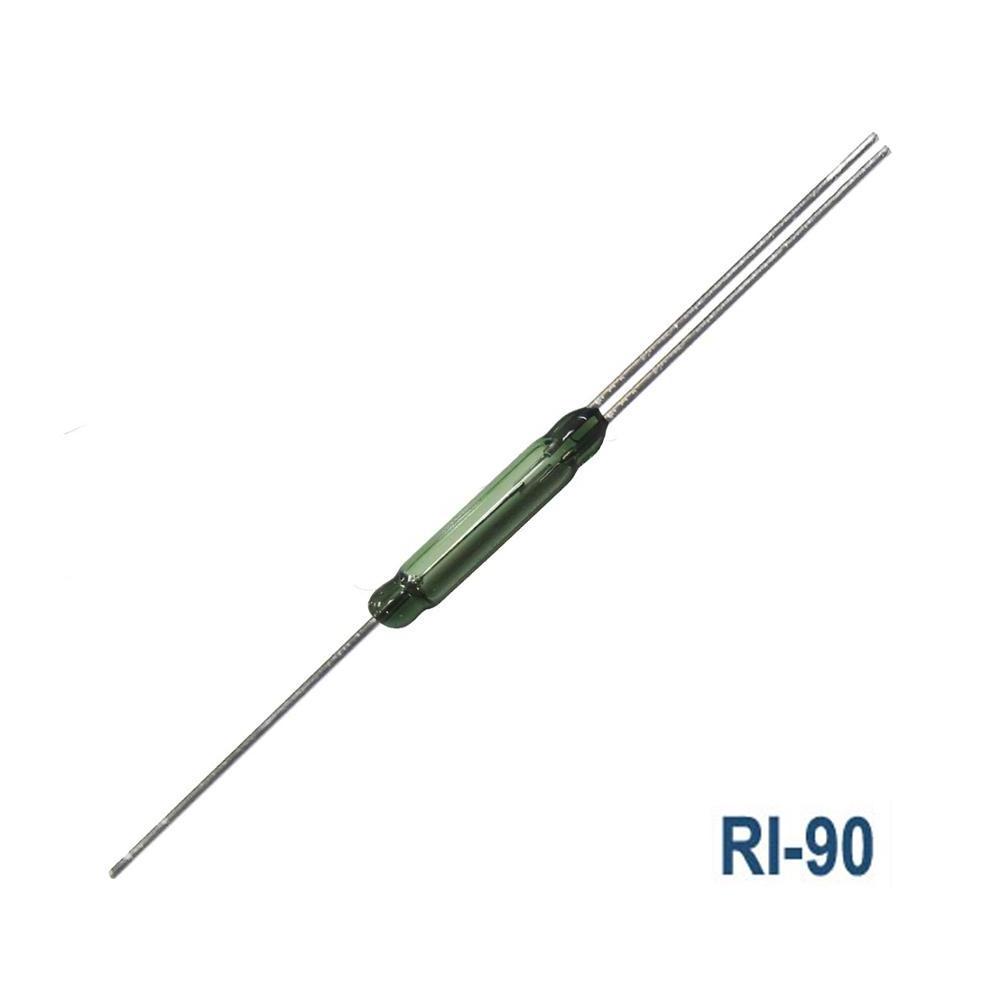

RI-90
-
Place of Origin:
-
Netherlands
-
Brand Name:
-
COTO
-
Theory:
-
Magnetic Reed Contact
-
Output:
-
Switching Signal ON/OFF
-
Size:
-
2.54x14.3 mm
-
Contact Form:
-
Normally Open and Closed(Change Over)
-
Operate Range:
-
AT10-15/AT15-20/AT20-25/AT25-30/AT30-35
-
Switched Power:
-
5W Max.
-
Switched Vdc/Vac:
-
175/125 Max.
-
Switched Current:
-
0.28A/0.40A Max.
-
Breakdown Voltage:
-
200V Min.
-
Temp. Range:
-
-55 ~ +125°C
-
Package:
-
1000pcs/box
-
Other customize:
-
cut and bend/plastic housing/wired
Quick Details
-
Use:
-
Limit Position/Anti theft for Door/Counting
-
Series:
-
Magnetic Reed Switch
-
Features:
-
Glass Tube, Metal Leads, 2 Pins
-
Mounting Type:
-
PCB Mount
-
Description:
-
Sense Position With Magnet/Counting/Anti theft
-
Manufacturing Date Code:
-
By Actual Production Date
-
Model Number:
-
RI-90
-
Place of Origin:
-
Netherlands
-
Brand Name:
-
COTO
-
Theory:
-
Magnetic Reed Contact
-
Output:
-
Switching Signal ON/OFF
-
Size:
-
2.54x14.3 mm
-
Contact Form:
-
Normally Open and Closed(Change Over)
-
Operate Range:
-
AT10-15/AT15-20/AT20-25/AT25-30/AT30-35
-
Switched Power:
-
5W Max.
-
Switched Vdc/Vac:
-
175/125 Max.
-
Switched Current:
-
0.28A/0.40A Max.
-
Breakdown Voltage:
-
200V Min.
-
Temp. Range:
-
-55 ~ +125°C
-
Package:
-
1000pcs/box
-
Other customize:
-
cut and bend/plastic housing/wired
