Quick Details
-
2.4G Wi-Fi Transmission Rate:
-
300 Mbps
-
Type:
-
Wireless
-
Brand Name:
-
WZHL
-
Place of Origin:
-
Guangdong, China
-
Product name:
-
Industrial 4G Wifi Router
-
Chipset:
-
MT7620A
-
Antenna:
-
4* 5dBi Antennas
-
Wireless Speed:
-
300Mbps Single frequency wireless Router
-
SIM card slot:
-
1 SIM Card Support
-
Interface:
-
1WAN+4LAN
-
WIFI:
-
802.11 B/g/n
-
Power supply:
-
DC 12V 1A
-
Flash:
-
16MB Nor Flash
-
RAM:
-
128MB DDR2
Quick Details
-
Max. LAN Data Rate:
-
300Mbps
-
With Modem Function:
-
NO
-
Wi-Fi Supported Frequency:
-
2.4G
-
2.4G Wi-Fi Transmission Rate:
-
300 Mbps
-
Type:
-
Wireless
-
Brand Name:
-
WZHL
-
Place of Origin:
-
Guangdong, China
-
Product name:
-
Industrial 4G Wifi Router
-
Chipset:
-
MT7620A
-
Antenna:
-
4* 5dBi Antennas
-
Wireless Speed:
-
300Mbps Single frequency wireless Router
-
SIM card slot:
-
1 SIM Card Support
-
Interface:
-
1WAN+4LAN
-
WIFI:
-
802.11 B/g/n
-
Power supply:
-
DC 12V 1A
-
Flash:
-
16MB Nor Flash
-
RAM:
-
128MB DDR2
Product Description

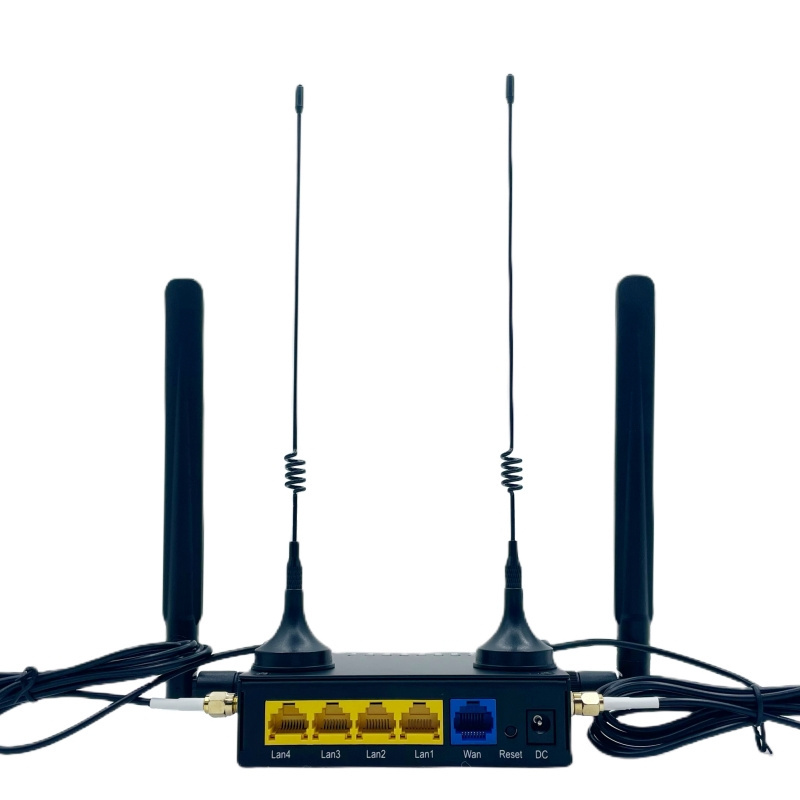

WE286 is a 4G routing product targeted at home or vehicle. It accesses the Internet through 4G mobile communication dial-up or 100Mbps WAN port dial-up, and then shares the Internet network via wireless WiFi4 and 1000Mbps wired LAN.
Product Feature
1.
Using
MT7620A
,MIPS24KEc architecture CPU, main frequency up to 580MHz.
2.MT7620A integrates 2.4G WIFI functions, IEEE 802.11n/g/b, maximum rate
300Mbps
.
3.
Using
16MB Nor Flash+128MB DDR2
RAM
.
4.
1 WAN Port+4 LAN Ports,
support Auto MDI/MDIX, 1 USB 2.0 Port
.
5.Supports RESET function.
6.Built in mini PCIE standard interface, which can be used to connect 4G mobile communication module
7.External standard SIM card interface, supporting SIM/USIM card.
8.External high gain omnidirectional antenna, no dead angle for 360°wireless signal.
Hardware&software (support OpenWRT)
|
Processor
|
MT7620A,MIPS24KEc architecture CPU, main frequency up to 580MHz
|
|
2.4G WIFIchip
|
MT7620A integrates 2.4G WIFI functions
IEEE 802.11n/g/b, maximum rate 300Mbps |
|
Memory
|
SOC built-in DDR2 128MB
|
|
Flash Memory
|
Nor Flash 16MB
|
|
|
WAN port 1, 100Mbps supports auto-flip (Auto MDI/MDIX)
Complies with IEEE 802.3/802.3u |
|
|
LAN port 4, 100Mbps supports auto-flip (Auto MDI/MDIX)
Complies with IEEE 802.3/802.3u |
|
SIM card interface
|
SIM card interface 1，supporting SIM/USIM card
|
|
Power connector
|
DC5.0 * 2.1MM interface
|
|
Pushbutton
|
Reset button 1pcs
|
|
Antenna
|
Omni-directional 5dbi 2.4G external antenna 2pcs
|
|
|
Omni-directional 5dbi 4G external antenna 2pcs
|
|
4G module interface
|
Built in mini PCIe interface
|
