Quick Details
-
After-sales Service Provided:
-
Online service
-
Name:
-
Soap production line
-
Machine Type:
-
automatic
-
Function:
-
making soap
-
Usage:
-
Hotel, household, travel soap
-
Material:
-
Mainly composed of stainless steel
-
Capacity:
-
100-300kg/h
-
Component:
-
Mixer,Three Roll Mill,Single screw plodder,Cutting,stamping,Packing
-
Raw material:
-
soap noodles
-
Power:
-
Based on 380V/50Hz, 3 phase
Quick Details
-
Place of Origin:
-
Guangdong, China
-
Weight (KG):
-
1323
-
Marketing Type:
-
Production line
-
After-sales Service Provided:
-
Online service
-
Name:
-
Soap production line
-
Machine Type:
-
automatic
-
Function:
-
making soap
-
Usage:
-
Hotel, household, travel soap
-
Material:
-
Mainly composed of stainless steel
-
Capacity:
-
100-300kg/h
-
Component:
-
Mixer,Three Roll Mill,Single screw plodder,Cutting,stamping,Packing
-
Raw material:
-
soap noodles
-
Power:
-
Based on 380V/50Hz, 3 phase
Machine Description

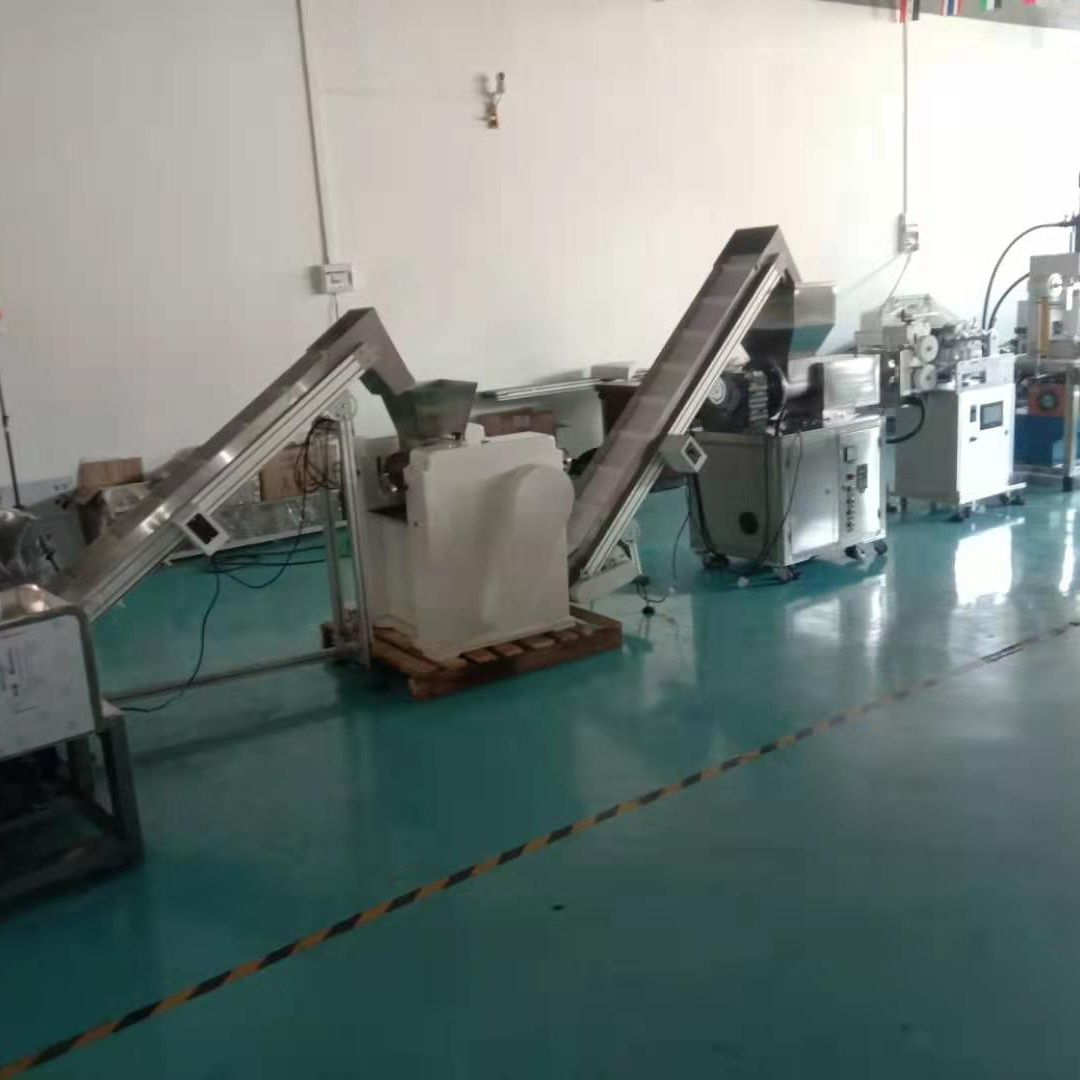

Soap production line
Soap production line use soap noodle to produce toilet soap bath soap hotel soap multi-pose soap. use soap noodle to produce.
toilet soap the line capacity have 0-300 kg/h, 0-500 kg/h, 500-1000 kg/h. its a full set production line.
including: Mixer, 3 roller mill,single screw plodder,Cutting Machine,stamping machine and packing machine.
Machine Details
Mixer
|
Equipment model
|
GP-100
|
|
Mixing style
|
Z type
|
|
Mixing time
|
5 －8min/time
|
|
Capacity
|
200kg
|
|
Revolution
|
40rpm
|
|
Diameter of roller
|
Φ450mm
|
|
Power
|
4kw
|
|
Discharge Mode
|
Manually
|
|
Size
|
1200*600*1000mm
|
|
Weight
|
250kg
|
Soap mixing machine is used to mix various additives and soap particles to produce soap, stir well. Select domestic famous brand gear deceleration motor,long service life. The blades is installed in the direction of rotation,which is conducive to fully breaking and mixing the soap.
Three roll mill machine
|
Equipment model
|
GPS-150
|
|
Diameter of roller
|
150mm
|
|
Length of roller
|
300mm
|
|
Speed rate of roller
|
1： 3： 9
|
|
Power consumption
|
4kw
|
|
Material
|
Frame –cast iron
roller－high Chrome alloy
|
|
Size
|
900*800*880mm
|
|
Weight
|
150kg
|
Used to mill soap particles and various auxiliary materials more evenly and to improve the density and quality of soap.The machine in the horizontal direction is assambled three roller shafts,through different speeds of extrusion and grinding the raw materials . The roller is made of high quality alloy material.
Single screw plodder
|
Equipment model
|
GPYJ-100
|
|
Capacity
|
100kg/h
|
|
Diameter of roller
|
Φ140mm
|
|
Revolution
|
10-23r/min （speed adjustable）
|
|
Power
|
4.4kw
|
|
Material
|
Fame-Q235 carbon steel 60 splicer made, the part
reached by soap noodle- stainless steel |
|
Size
|
1500*600*1400mm
|
|
Weight
|
200kg
|
The soap plodder machine is to make those mix and grind the soap pieces,thin strips,soap powder and other soap raw materials into a continuous soap bar for printer printing. This machine adopts single worm strip shaft,driven by frequency conversion speed regulating motor, wide range of speed regulation,can be well matched with printing. The outlet is provided with electric temperature control Heating device to ensure that the soap has a certain internal strength and good appearance quality.
Cutting Machine
|
Equipment model
|
GY-QZ001
|
|
Cutting Speed
|
Cutting speed is determined by the
speed strip cutting machine. |
|
Soap Cutting Size
|
According to customer
requirements |
|
Capacity
|
0-200ps/min（Can be adjusted）
|
|
Power
|
2 kw
|
|
Size
|
900*600*1200mm
|
|
Weight
|
110kg
|
Cutting machine is mainly used forcutting soap and laundry soap. Adopt the global famous brand PLC、touch screen,servo,photoelectric encoder composed of control system and conjugate cam linkage mechanism to ensure high accuracy and high reliability of the machine.
Stamping machine
|
Equipment model
|
YZ-S80-35T
|
|
|
||
|
Stamping speed
|
700-800 times/hour
|
|
|
||
|
Machine size
|
950* 1110* 1780mm
|
|
|
||
|
Machine power
|
4.2KW
|
|
|
||
|
Machine voltage
|
AC220V (other voltages can be customized)
|
|
|
||
|
weight
|
203kg
|
|
|
||
Automatic rolling film automatic stamping, die depth adjustable, film length adjustable, release stay.Time adjustable, clear marks.
Soap packing machine
|
Equipment model
|
GY-BZ003
|
|
Maximum package size
|
120 * 100 *600mm
|
|
Gas source
|
0.6-0.8mpa
|
|
Output
|
40-60 units per minute
|
|
Size
|
2500 * 600 * 1500mm
|
|
Weight
|
250kg
|
New design, beautiful appearance, more reasonable structure, more advanced technology PLC computer control system, color touch screen, easy to operate, intuitive and efficient.The film is controlled by servo motor to realize high precision positioning and accurate size.External film release mechanism is adopted to facilitate the installation of packaging film.Vertical sealing and sealing process, automatic adjustment of deviation, greatly reducing labor intensity.
Packaging machine conveyor table
Conveyor belt
Easy to transfer, and save labor costs
