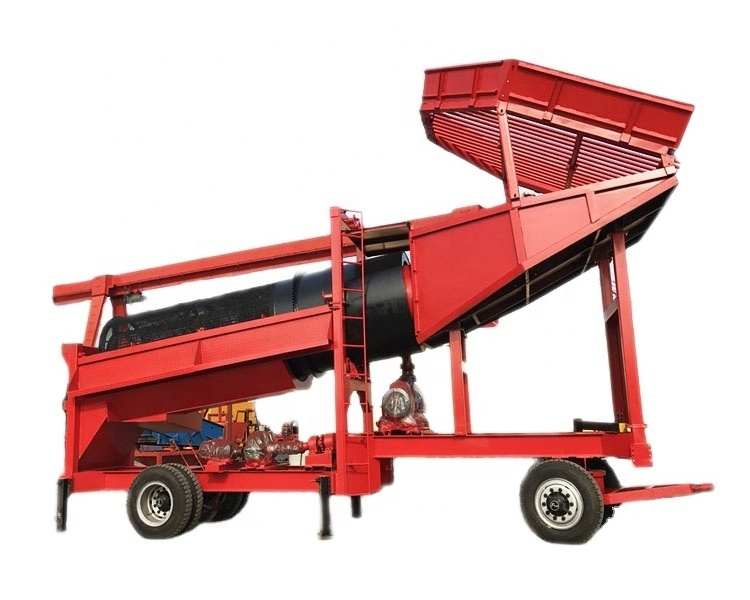

Gold washing trommel plant is one of the most widely used sand gold washing equipment, which is suitable for modern
mechanized production. Patented unique design, the modular design is easy for installation and debugging to adapt to different sand and gold ore deposits.
The main structure is divided into feeding system, cleaning and screening system, collection and recovery system.
Below are its main characteristics:
1) Patented unique design
2) Higher capacity, longer drum life and no blockage.
3) Easy to move, it can be dragged by wheel loader or excavators.
4) Gold Recovery rate can be more than 90%
5) Low water and electricity requirements
6) Customized by your detailed requirement.
- Product Details
- {{item.text}}
Quick Details
-
Voltage:
-
220V/380V
-
Dimension(L*W*H):
-
9800*3000*5175 mm
-
Weight:
-
4000 KG
-
Performance Working Capacity:
-
200-300 m³/h
-
Main Power Engine Power:
-
75 kw
-
Feeder Hopper Size((L*w*h):
-
3800*3000 mm
-
Trommel Size:
-
1500*5000 mm
-
Trommel Power:
-
15 kw
-
Chute with Carpet Size:
-
1000*6000 mm
-
Chute with Carpet Quantity:
-
2
-
Water system Pump Power:
-
45kw
Quick Details
-
Production Capacity:
-
98%
-
Place of Origin:
-
Shandong, China
-
Brand Name:
-
KEDA
-
Voltage:
-
220V/380V
-
Dimension(L*W*H):
-
9800*3000*5175 mm
-
Weight:
-
4000 KG
-
Performance Working Capacity:
-
200-300 m³/h
-
Main Power Engine Power:
-
75 kw
-
Feeder Hopper Size((L*w*h):
-
3800*3000 mm
-
Trommel Size:
-
1500*5000 mm
-
Trommel Power:
-
15 kw
-
Chute with Carpet Size:
-
1000*6000 mm
-
Chute with Carpet Quantity:
-
2
-
Water system Pump Power:
-
45kw
Product Description
The Trommel Screen provide a simple, efficient ,economical solution.This method of screening helps to reduce operating and investment cost and to ncrease product quality, while allowing rapid and large volume processing.
a. Good quality guaranteed. Every step of the producing is strictly supervised. Certified by ISO9001.
b. Portable. With four wheels and can be dragged by forklift or pick-up and move around easily.
c. Large scale processing capacity, range from one ton per hour to 400 tons per hour with 5 models.
d. Good after sales service. Overseas service for installation and debugging and problem consult.
e. Customized. Can be produced according to customers' requirement, such as the color and so on.
a. Good quality guaranteed. Every step of the producing is strictly supervised. Certified by ISO9001.
b. Portable. With four wheels and can be dragged by forklift or pick-up and move around easily.
c. Large scale processing capacity, range from one ton per hour to 400 tons per hour with 5 models.
d. Good after sales service. Overseas service for installation and debugging and problem consult.
e. Customized. Can be produced according to customers' requirement, such as the color and so on.
Performance characteristics
characteristics
Product Configuration
Successful Project
Specification
|
Technical Parameter
|
|
|
|
|
||||
|
|
|
KDTJ-50
|
KDTJ-100
|
KDTJ-200
|
||||
|
Performance
|
Dimension(L*w*h)
|
7000*2000*3000mm
|
8300*2400*4700mm
|
9800*3000*5175mm
|
||||
|
|
Working Capacity
|
30-50m³/h
|
100-150m³/h
|
200-300m³/h
|
||||
|
Main Power
|
Engine Power
|
24kw
|
55kw
|
75kw
|
||||
|
Feeder Hopper
|
Size((L*w*h)
|
2000*2000mm
|
3000*2200mm
|
3800*3000mm
|
||||
|
Trommel
|
Size
|
1000*3000mm
|
1200*4000mm
|
1500*5000mm
|
||||
|
|
Power
|
7.5kw
|
11kw
|
15kw
|
||||
|
Chute with Carpet
|
Size
|
1000*4000mm
|
1000*6000mm
|
1000*6000mm
|
||||
|
|
Quantity
|
2
|
2
|
2
|
||||
|
Water system
|
Pump Power
|
18.5kw
|
30kw
|
45kw
|
||||
|
Optional Components
|
Wheel,Grizzly,Conveyor, Shaking Chute, Centrifugal Machine
|
|
|
|
||||
Packing & Delivery
Our gold trommel has been exported to Ghana, Zimbabwe, Honduras, Madagascar, Outer Mongolia, North Korea, Indonesia, Philippines,Burma, Thailand, America, Argentina, Angola, Chile, Ecuador etc. and gained good feedback.
To better ensure the safety of your goods, professional, environmentally friendly, convenient and efficient packaging services will be provided.
