Quick Details
-
Resolution:
-
240*320
-
Interface:
-
18 bits RGB vertical stripe+3Wire-SPI
-
Viewing Angle:
-
ALL
-
MOQ:
-
NO
-
Business policy:
-
long time supply
-
Dimensional outline:
-
50.00(H) x 69.20(V) x2.3(T) (FPC not include)mm
-
Backlight:
-
4 White LED
-
Touch panel:
-
resistive or capacitive touch panel for option
-
Display Size:
-
2.8 inch tft touch screen
Quick Details
-
Brand Name:
-
OEM
-
Item:
-

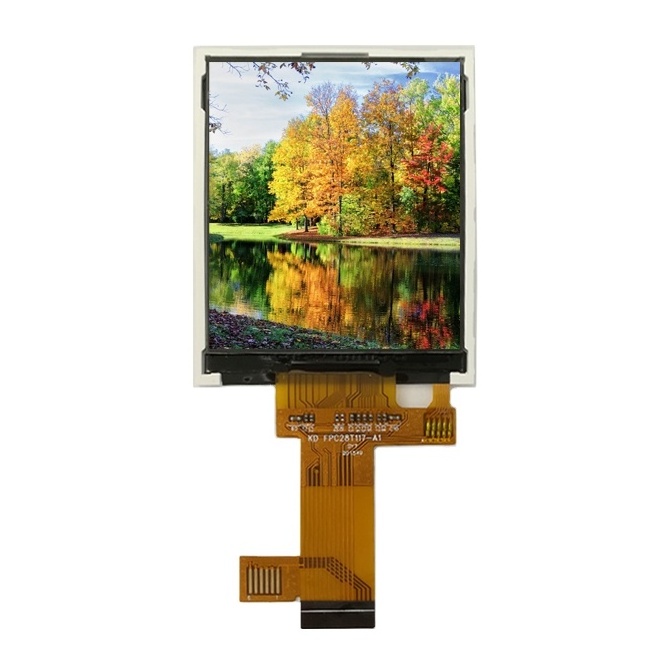

2.8 inch tft lcd touch screen ili9341
-
Driver IC:
-
ST7789V
-
Resolution:
-
240*320
-
Interface:
-
18 bits RGB vertical stripe+3Wire-SPI
-
Viewing Angle:
-
ALL
-
MOQ:
-
NO
-
Business policy:
-
long time supply
-
Dimensional outline:
-
50.00(H) x 69.20(V) x2.3(T) (FPC not include)mm
-
Backlight:
-
4 White LED
-
Touch panel:
-
resistive or capacitive touch panel for option
-
Display Size:
-
2.8 inch tft touch screen
National High-Tech Enterprise
ISO9001:2015 ROHS CE cerrification.
Resistive or capacitive touch optional.
100% brand new A grade quality glass.
Full inspection, 100% Strictly Tested before shipment.
Never End of Supply, Long-term Continuity Supply Warranty!
Notes: For reference only. Please contact us and get the technical spec. Or just tell me what kind of lcds do you need ( Size, Resolution, Interface, Touch panel, Cover glass etc .) , we will recommend the best solution for your reference.
|
Part NO. |
2.8 inch lcd display | |
|
LCD Mode |
TFT/Transmissive |
|
|
Resolution |
Graphic 240RGB*320 Dot-matrix |
|
|
Pin Descriptions |
45 pin or customizable |
|
|
Interface |
18 bits RGB vertical stripe+3Wire-SPI or optional |
|
|
Dimensional outline |
50.00(H) x 69.20(V) x2.3(T) (FPC not include) mm |
|
|
LCD Active Area |
43.20(H) x 57.60(V) mm |
|
|
Luminance |
O ptional |
|
|
LED |
4 chip white led ( parallel ) |
|
|
Viewing Direction |
TN | |
Q1 . Are you a factory or trading company?
A1: We are a professional TFT LCD Display manufactuer factory and factory based on Bao'an Shenzhen, passed the certification of ISO9001:2015 and obtained the national high-tech enterprise certification.
Q2 . How do you guarantee the quality?
A2: 1) The quality is strictly controlled in designing, material incoming, production process, equipment and checking.
2) All products are 100% inspected before shipment.
3) Reliability test will be done for all new projects.
Q3
.
Do you accept customization for tft lcd display?
A3 : Sure,
TFT lcd module has different tooling cost,
we charge lower cost than other suppliers for tooling and we can return the tooling charge for your formal orders.
Q4 . What is the MOQ?
A4: There are no MOQ requirements, We can cooperate step by step.
Q5
.
What is your delivery method?
A5: DHL, UPS, FEDEX,TNT, or ship the goods to your HK forwarder.
Q6
.
What's the lead time of the products?
A6: Sample in stock, 2-4 weeks for mass production.
Q7
.
Terms of payment?
A7: T/T, paypal, L/C,
Online trade
Trade Assurance
are available.
Q8
.
How long is the waranty period?
A8: 12 months or more.
