Quick Details
-
Model Number:
-
KCD1-106A-2P
-
Max. Current:
-
6(3)A
-
Mechanical Life:
-
≥10,000 Cycles
-
Color:
-
Black&Red
-
Certificate:
-
CQC CE
-
Function:
-
ON-OFF
-
Rating:
-
3A 250VAC/6A 125VAC
-
Insulation Resistance:
-
≥100MΩ
-
Contact Resistance:
-
≤50mΩ
-
Dielectric Strength:
-
1500VAC/5S
-
Endurance:
-
≥10,000 Cycles
-
Amibent Temperature:
-
-25℃-+85℃(T85)
-
Material:
-
Brass
-
Certification:
-
CE CQC
Quick Details
-
Max. Voltage:
-
250(125)V
-
Place of Origin:
-
Guangdong, China
-
Brand Name:
-
KYT
-
Model Number:
-
KCD1-106A-2P
-
Max. Current:
-
6(3)A
-
Mechanical Life:
-
≥10,000 Cycles
-
Color:
-
Black&Red
-
Certificate:
-
CQC CE
-
Function:
-
ON-OFF
-
Rating:
-
3A 250VAC/6A 125VAC
-
Insulation Resistance:
-
≥100MΩ
-
Contact Resistance:
-
≤50mΩ
-
Dielectric Strength:
-
1500VAC/5S
-
Endurance:
-
≥10,000 Cycles
-
Amibent Temperature:
-
-25℃-+85℃(T85)
-
Material:
-
Brass
-
Certification:
-
CE CQC
Specification
|
Name
|
Rocker switch
|
|
Rated current
|
3A/6A
|
|
Rated voltage
|
250V/125V
|
|
Contact resistance
|
≤50mΩ
|
|
Insulation resistance
|
≥100mΩ
|
|
Dielectric strength
|
≥1500V AC/min
|
|
Temperature resistance range
|
-25~85℃
|
|
Mechanical life
|
≥10000 times
|

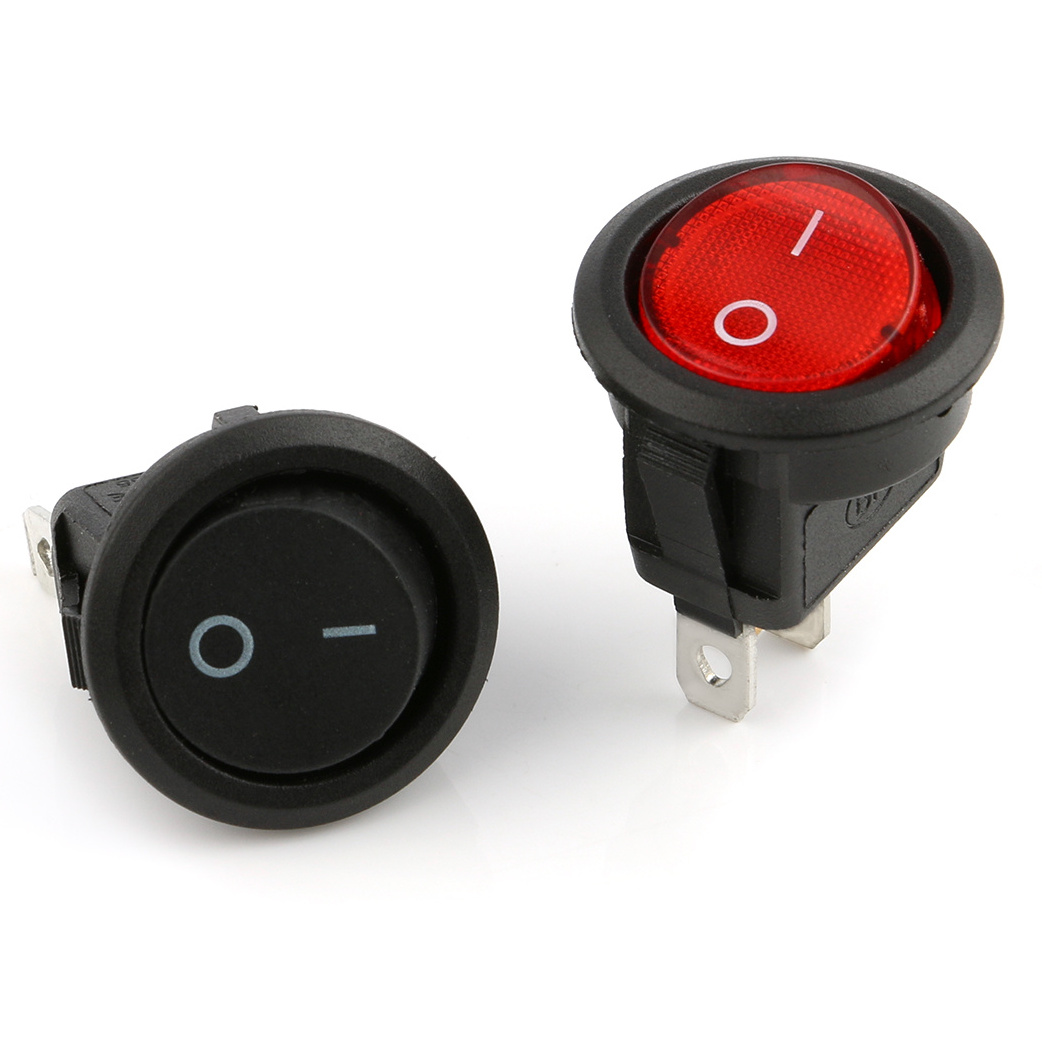

KCD1 2 pins 3 position rocker switch 3A 250AC boat rocker switch
Rocker type switch
is commonly used as power switch of electronic equipment, suitable for small high capacity power switch of home appliances and office equipment.
