Quick Details
-
Place of Origin:
-
Zhejiang, China
-
Brand Name:
-
KETE
-
Model Number:
-
KTNW-B
-
Voltage:
-
220v / 380v
-
Dimension(L*W*H):
-
10500 x 2200 x 2100mm
-
Weight:
-
3500 KG
-
Keywords:
-
non woven bag machine
-
Product name:
-
Non Woven Loop Handle Bag Making Machine
-
Speed:
-
20-120gsm
-
Bag material:
-
Non Woven
-
Application:
-
Making Non Woven Bags
-
After sales Service Provided:
-
Servise Machinery Overseas
-
Automatic:
-
Full-automatic
-
Processing Type:
-
Computer Control
-
Type of bag:
-
w cutting bag, T-shirt bag, d cutting bag
-
Certification:
-
CE
Quick Details
-
Machine Type:
-
Bag Forming Machine
-
Bag Type:
-
Shopping Bag
-
Material:
-
Non Woven Bag
-
Place of Origin:
-
Zhejiang, China
-
Brand Name:
-
KETE
-
Model Number:
-
KTNW-B
-
Voltage:
-
220v / 380v
-
Dimension(L*W*H):
-
10500 x 2200 x 2100mm
-
Weight:
-
3500 KG
-
Keywords:
-
non woven bag machine
-
Product name:
-
Non Woven Loop Handle Bag Making Machine
-
Speed:
-
20-120gsm
-
Bag material:
-
Non Woven
-
Application:
-
Making Non Woven Bags
-
After sales Service Provided:
-
Servise Machinery Overseas
-
Automatic:
-
Full-automatic
-
Processing Type:
-
Computer Control
-
Type of bag:
-
w cutting bag, T-shirt bag, d cutting bag
-
Certification:
-
CE
Product Description
Description:

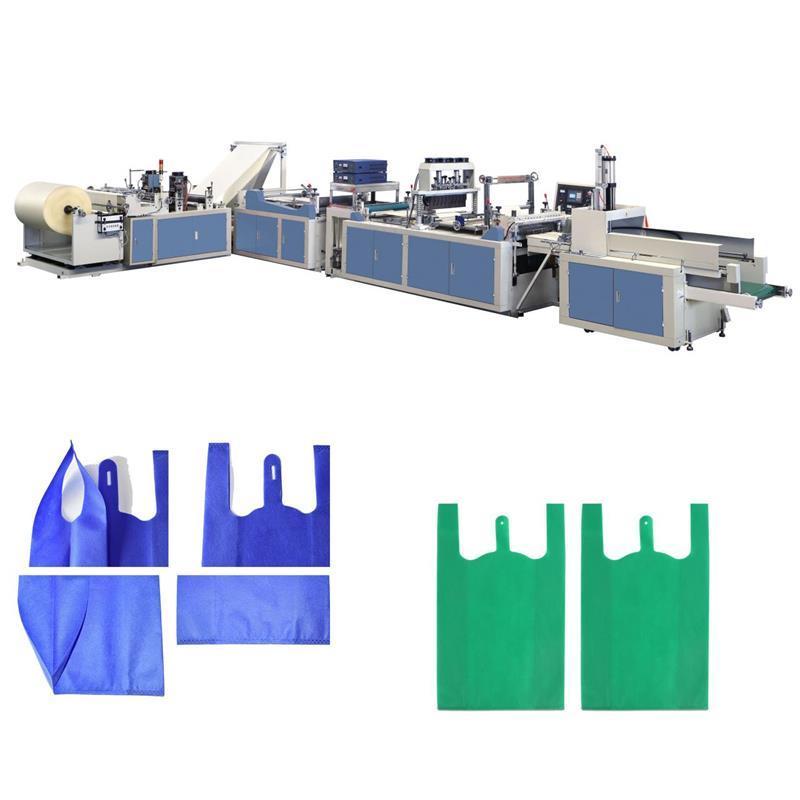

This fully automatic non woven bag making machine is suitable to use roll-type non woven fabrics to make D cut bags and T-shirt bag
.
Performance and Characteristics:
1. With PLC touch Screen Control System.
2. With Ultrasonic Sealing System
3. Material feeding Control by Step motor
4. Unwind with Auto Loading and EPC System.
5. With Auto Length Control System
6. With Automatic Counting System.
7. With Auto Temperature Control System.
8. With Auto Photo Senor Checking System.
9. D Cut Bag with Auto Banana Handle Punch System.
10. T -shirt Bag with Auto W Cut and U Cut Punch system.
1. With PLC touch Screen Control System.
2. With Ultrasonic Sealing System
3. Material feeding Control by Step motor
4. Unwind with Auto Loading and EPC System.
5. With Auto Length Control System
6. With Automatic Counting System.
7. With Auto Temperature Control System.
8. With Auto Photo Senor Checking System.
9. D Cut Bag with Auto Banana Handle Punch System.
10. T -shirt Bag with Auto W Cut and U Cut Punch system.
Specification
|
Model
|
KTNW-B
|
|
Raw Material Width
|
1250mm
|
|
Material Thickness
|
30-120gsm
|
|
Raw Material Diameter
|
800mm
|
|
Bag Making Speed
|
20-120pcs/min
|
|
D cut Bag Width
|
100-800mm
|
|
D cut Bag Height
|
200-580mm
|
|
D cut Bag Top Gusset
|
40-80mm
|
|
D cut Bag Bag Bottom Gusset
|
50-100mm
|
|
D cut Bag Hole Size
|
20x80mm
|
|
T-shirt Bag Width
|
200-450mm
|
|
T-shirt Bag Length
|
100-800mm
|
|
T-shirt Bag Side Gusset
|
50-100mm
|
|
Total Power
|
15kw
|
|
Machine Weight
|
3500kg
|
|
Machine Voltage
|
220v/ 380v
|
|
Machine Size (LWH)
|
10500 x 2200 x 2100mm
|
