Quick Details
-
Dimensions(L*W*H):
-
3900*2060*2950 mm
-
Weight:
-
5000 KG
-
After-sales Service Provided:
-
Video technical support
-
Keyword:
-
Flexografic Printing Machine
-
Printing color:
-
1-6 Colors
-
Material:
-
Non-woven Fabric. Paper. Film.OPP.PE.BOPP.PE.NY.PET.CPP
Quick Details
-
Place of Origin:
-
Zhejiang, China
-
Brand Name:
-
HERO
-
Voltage:
-
380V
-
Dimensions(L*W*H):
-
3900*2060*2950 mm
-
Weight:
-
5000 KG
-
After-sales Service Provided:
-
Video technical support
-
Keyword:
-
Flexografic Printing Machine
-
Printing color:
-
1-6 Colors
-
Material:
-
Non-woven Fabric. Paper. Film.OPP.PE.BOPP.PE.NY.PET.CPP

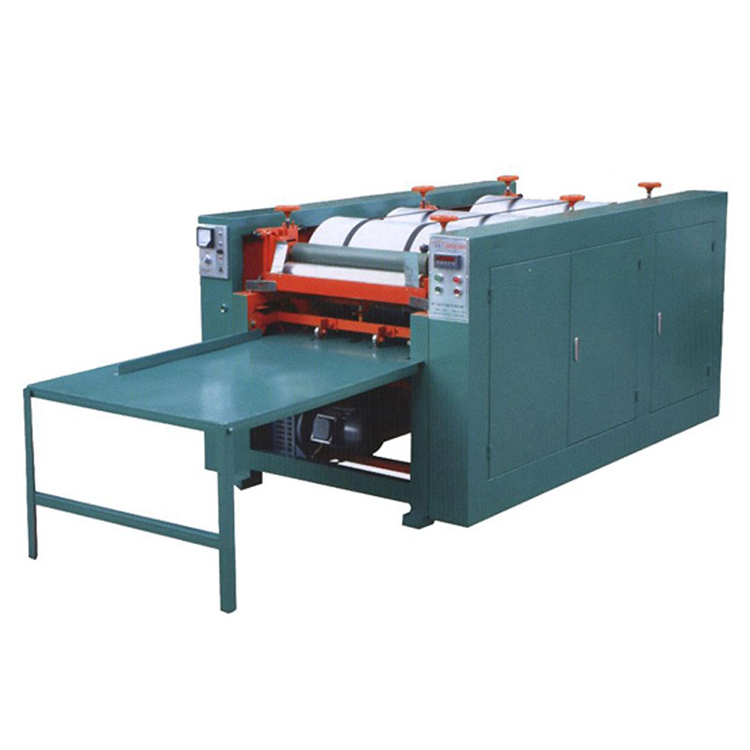

4 color pouch roll flexo printing machine pet film kraft paper pp plastic polythene bag flexo printing machine
Products Description
Brief Introduction
Introduce sensitization resin as flexible printing plate, suitable for printing such packing materials as polyethylene,polyproplene bag,cellophane and roll paper, etc. It is a kind of ideal printing equipment for producing paper packing bag for good, supermarket handbag, vest bag and clothes bag,etc.
Main Features
1. Take it easy, accurate color, long life.
2. Use motors, variable frequency speed control, saving electricity, small running fluctuations.
3. Off printing roll automatic stop the ink-running motor, and up-printing roll automatic start running the ink.
4. Use special diagonal-tooth gear, accurate printing size.
5. Two sets of heating devices, including central heating and constant temperature control system for group control.
6. Low-roller special steel processing, and special process, and plating thickness of 0.1mm protective layer of hard chromium.
7 Alloy roll with hard oxidation, treating by dynamic balance, static balanced.
8 With cold wind bellows, and can effectively prevent produce with ink adhesion after printing
9. Print produce are clear and good arrangement quality.
10. Bearing: NSK, Japan Brand, Germany ASNU aluminum alloy roll
Optional
1.
EPC correction system
2.
Automatic tension adjustment system
3.
Still image (monitor printing status)
4.
Friction winding (depending on printing material)
|
Model
|
HR6-800
|
|
Printing Material
|
BOPP, Polyester, HDPE, PP
|
|
Machine color
|
6Color
|
|
Max. Material width
|
850mm
|
|
Max. Printing width
|
800mm
|
|
Max.printing length
|
250-900mm
|
|
Max. Machine speed
|
120m/min
|
|
Max. Printing speed
|
100m/min (According to material )
|
|
Register precision
|
Crosswise：±0.25mm Longitudinal：±0.25mm
|
|
Plate thickness
|
2.28mm or 1.7mm （Or customer requirement ）
|
|
Double tap thickness
|
0.38mm（3M）
|
|
Machine total power
|
40Kw
|
|
Voltage
|
Voltage 380V, 3 PH, 50 Hz
|
The machine color printing width can be customized according to your needs
