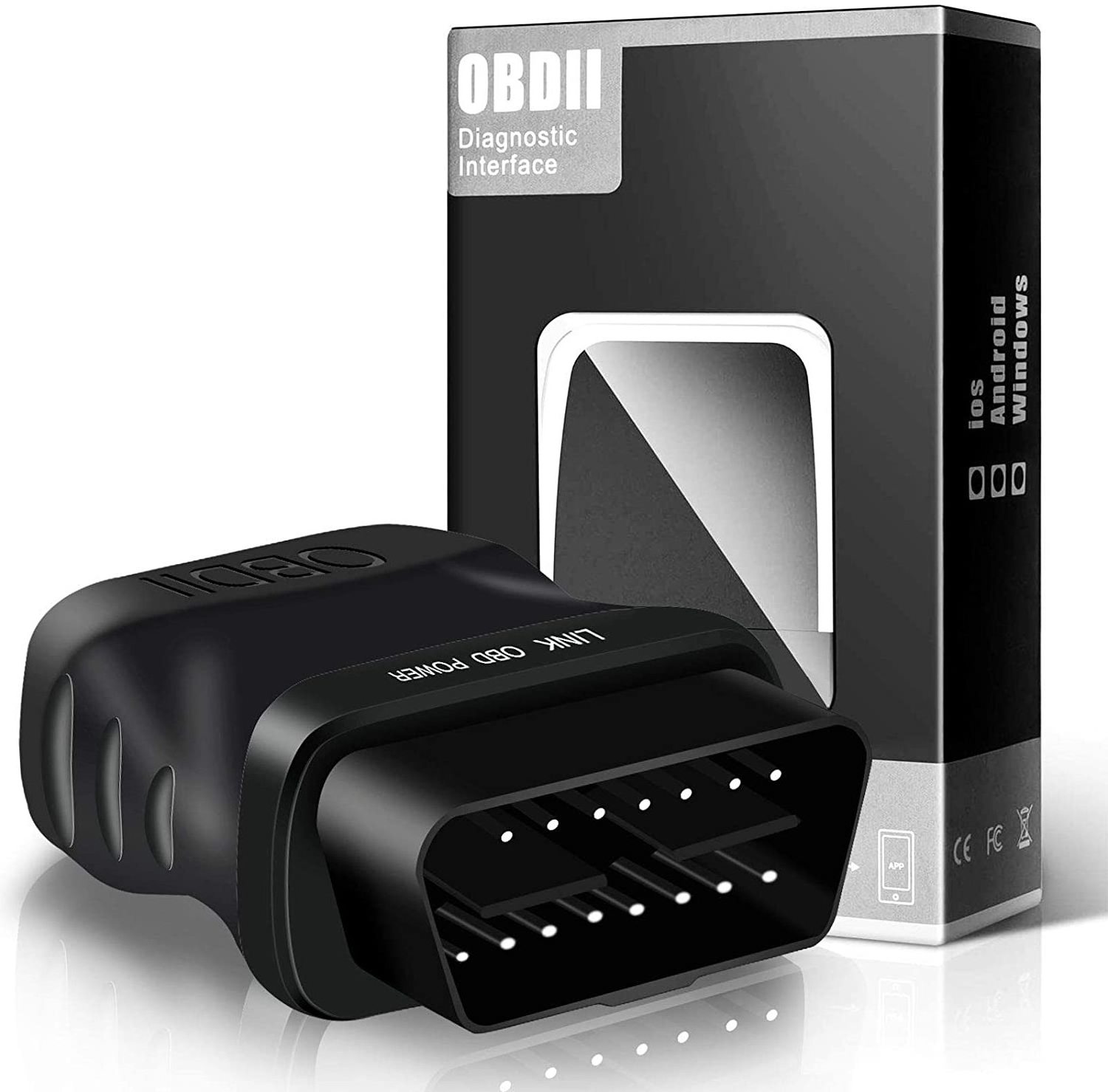

V015 Detector Scanner OBD2 BT 4.0 Most Car Diagnostic Tools OBD Diagnostic Tools PK ELM327

The OBD2 Scanner Oscillator frequency is 24mhz.
The product is not PIC18F25K80, it support ATPPS commands and can be used with FORSCAN, but it does not guarantee that all functions on this software can be used. (FORSCAN is a software specially used to change some ECU parameters of Ford cars.)

ELM327 V1.5 BT4.0 is mainly used to read the data of car engine and emissions, diagnostic car engine trouble, and erase trouble codes. It is small size, highest chip integration, Passed CE, FCC, and RoHS certification.

ELM327 V1.5 BT4.0 Functions:

Read diagnostic trouble codes, both generic and manufacturer-specific, and display their meaning (over 3000 generic code definitions in the database).
Clear the error codes and turn off the MIL ("Check Engine" indicator)
Displays current sensor data, including:
Engine speed per minute (RPM)
Calculated load value
Coolant temperature
Fuel system status
Vehicle speed
Short-term fuel condition
Long-term fuel condition
Intake manifold pressure
Injection advance time
Intake air temperature
Air Flow Rate
Absolute throttle position
Oxygen probe voltage associated with short-term fuel status
Fuel system status
Fuel pressure
There are many other data available for fuel consumption monitoring ...

Software Platforms:

1. Compatible software
Window versions: ScanMaster-ELM, ScanTool.net, PCMSCAN, etc.
Android version: Torque, DashCommand, OBD Car Doctor, Auto Doctor, Mini OBDII, EOBD, etc.
Symbian version: OBDScope. 2.
2. Compatible Platforms
Software support platform: Windows XP, Windows 7/8/10, Android, Symbian, etc.

Support Protocol:

SAE J1850 PWM (41.6 Kbaud)
SAE J1850 VPD (10.4 Kbaud)
ISO 9141-2(5 baud init,10.4 Kbaud)
ISO 14230-4 KWP ( 5 baud init,10.4 Kbaud)
ISO 14230-4 KWP (fast init,10.4 Kbaud)
ISO 15765-4 CAN (11bit ID,500 Kbaud)
ISO 15765-4 CAN (29bit ID,500 Kbaud)
ISO 15765-4 CAN (11bit ID,250 Kbaud)
ISO 15765-4 CAN (29bit ID,250 Kbaud)

BT 4.0 OBDII Car Diagnostic Scanner

Diagnose Engine Trouble Code
Clear Engine Trouble Code
Car Information Reading
Work After Connect Car
Supports Almost Kinds Of Cars
Small & Convenient

How to Use the OBD II Scanner

1. Keep the key in the Lock , plug the OBD II adapter to the car OBD II port. The OBD interface may located in different place for different vehicle models. (Generally located on the underside of the dashboard on the driver's side of the car, or above the accelerator pedal).

2. Download the app: Scan the QR code on the box or manually enter "www.elm327.com". Recommend "Torque" for Android.

3. Start the vehicle, enable BT of your smart device, and pair with OBDII. (For Android: pairing code is 1234 or 0000).

4. Open the app and choose OBDII as the BT device to connect.

5. After connecting to BT, you can add a dashboard according to your needs, OBDII will read data and diagnose vehicles for you.

Package Contents:
1 * Car Diagnostic Tool
1 * English instruction manual

Remark: This device can’t be upgrade. If you try to upgrade, we don't bear any responsibility & cost. Please attention!!!
