Quick Details
-
Brand Name:
-
HEYA/OEM
-
Model Number:
-
SDR-5000
-
Use:
-
Household use/ SDR Series
-
Power:
-
According customer demand
-
Input/output display:
-
LED
-
Circuit Protction:
-
Circuit Breaker
-
Cooling System:
-
Fan
-
Properties:
-
High-Energy-Ray Medical Equipments
-
Input:
-
140-260V/80-260V
-
Output:
-
220V
-
Frequency:
-
50Hz
-
Technology:
-
Relay control
-
Type:
-
automatic voltage protector
Quick Details
-
Phase:
-
Single Phase
-
Current Type:
-
AC
-
Place of Origin:
-
Zhejiang, China
-
Brand Name:
-
HEYA/OEM
-
Model Number:
-
SDR-5000
-
Use:
-
Household use/ SDR Series
-
Power:
-
According customer demand
-
Input/output display:
-
LED
-
Circuit Protction:
-
Circuit Breaker
-
Cooling System:
-
Fan
-
Properties:
-
High-Energy-Ray Medical Equipments
-
Input:
-
140-260V/80-260V
-
Output:
-
220V
-
Frequency:
-
50Hz
-
Technology:
-
Relay control
-
Type:
-
automatic voltage protector

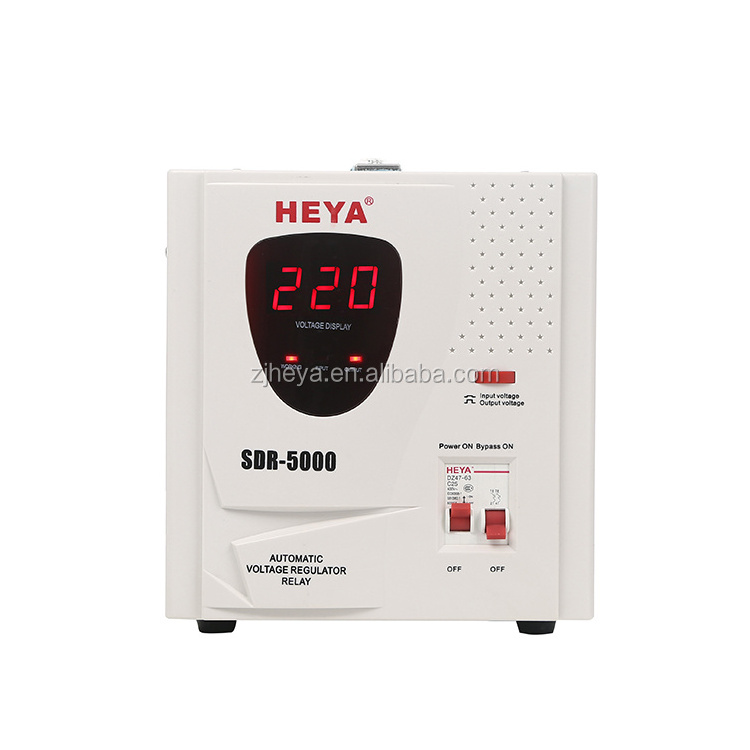

SDR-5000 single phase ac automatic voltage protector
ARU YOU WORRIED ABOUT
VOLTAGE INSTABILITY?
| Model |
SDR-500 |
SDR-1000 |
SDR-1500 |
SDR-2000 |
SDR-3000 |
SDR-5000 |
SDR-8000 |
SDR-10000 |
SDR-12000 |
|
Nominal Power |
500VA |
1000VA |
1500VA |
2000VA |
3000VA |
5000VA |
8000VA |
10000VA |
12000VA |
|
Power Factor |
0.6-1.0 |
||||||||
| Input | |||||||||
|
Operating Voltage Range |
A:70~285V,B:90~285V,C:125~285V |
||||||||
|
Regulation Voltage Range |
A:80~260V,B:100~260V,C:140~260V |
||||||||
|
Frequency |
50HZ |
||||||||
|
Connection Type |
0.5~3KVA(Power cord with plug), 5~12KVA(Input terminal block) |
||||||||
| Output | |||||||||
|
Operating Voltage |
180~255V |
||||||||
|
High Cut Voltage |
255V |
||||||||
|
Low Cut Voltage |
180V |
||||||||
|
Safety Cycle |
3?Seconds / 180 Seconds (Optional) |
||||||||
|
Frequency |
50HZ |
||||||||
|
Connection Type |
0.5-3KVA(Output socket), ?5~12KVA(Output terminal block) |
||||||||
| Regulation | |||||||||
|
Regulation % |
8% |
||||||||
|
Number of Taps |
7,6,5 |
||||||||
|
Transformer Type |
Toroidal auto transformer |
||||||||
|
Regulation Type |
Relay type |
||||||||
| Indicators | |||||||||
|
LED display |
Input voltage ,Output voltage ,Delay time |
||||||||
| Protection | |||||||||
|
Over Temperature |
Auto Shutdown at 120 ℃ |
||||||||
|
Short Circuit |
Auto Shutdown |
||||||||
|
Overload |
Auto Shutdown |
||||||||
|
Over / Under Voltage |
Auto Shutdown |
||||||||
|
Model |
Unit(PCS) |
Device Size(MM) |
Package Size(MM) |
G.W.(KGS) |
|
SDR-500 |
8 |
210*110*150 |
495*280*350 |
19.52 |
|
SDR-1000 |
8 |
210*110*150 |
495*280*350 |
23.12 |
|
SDR-1500 |
8 |
240*150*185 |
375*305*435 |
17.60 |
|
SDR-2000 |
4 |
240*150*185 |
375*305*435 |
21.92 |
|
SDR-3000 |
4 |
240*150*185 |
375*305*435 |
23.32 |
|
SDR-5000 |
2 |
340*220*250 |
515*420*300 |
22.72 |
|
SDR-8000 |
1 |
385*220*250 |
460*265*300 |
13.50 |
|
SDR-10000 |
1 |
385*220*250 |
460*265*300 |
15.20 |
|
SDR-12000 |
1 |
385*220*250 |
460*265*300 |
16.20 |
