Quick Details
-
Warranty(Year):
-
5-Year
-
Brand Name:
-
ONOFF/ OEM
-
Model Number:
-
LS5075-1.2M
-
Place of Origin:
-
Guangdong, China
-
Product Weight（kg）:
-
2
-
Product Dimension:
-
1200x50x70mm
-
Packing Dimension:
-
125x30x30cm
-
PCs/ Ctn:
-
12
-
Lamp Luminous Flux(lm):
-
4000
-
Beam Angle(°):
-
120
-
Product name:
-
5070 new LED linear pendant light
-
Material:
-
Aluminum housing and opal PC
-
Input voltage:
-
AC120V, AC220V
-
Wattage:
-
40W
-
Length options:
-
1.2m= 4ft
-
Control options:
-
on/off, 0/1~10V dimmable, Dali dimmable, Triac dimmable
-
Housing color options:
-
Black, White, Silver
-
IP Rating:
-
IP20 for indoor only
-
Linkable:
-
Seamless connection
Quick Details
-
Design Style:
-
Modern
-
Application:
-
Office Building
-
Body Material:
-
Aluminum
-
Warranty(Year):
-
5-Year
-
Brand Name:
-
ONOFF/ OEM
-
Model Number:
-
LS5075-1.2M
-
Place of Origin:
-
Guangdong, China
-
Product Weight（kg）:
-
2
-
Product Dimension:
-
1200x50x70mm
-
Packing Dimension:
-
125x30x30cm
-
PCs/ Ctn:
-
12
-
Lamp Luminous Flux(lm):
-
4000
-
Beam Angle(°):
-
120
-
Product name:
-
5070 new LED linear pendant light
-
Material:
-
Aluminum housing and opal PC
-
Input voltage:
-
AC120V, AC220V
-
Wattage:
-
40W
-
Length options:
-
1.2m= 4ft
-
Control options:
-
on/off, 0/1~10V dimmable, Dali dimmable, Triac dimmable
-
Housing color options:
-
Black, White, Silver
-
IP Rating:
-
IP20 for indoor only
-
Linkable:
-
Seamless connection
Product Description
Wide 2 inch, W50xH70mm Profile LED linear light,
we offer various lengths, they are
1.0m(3.3ft) 24W, 1.2m
(4ft) 30W
, 1.5m
(5ft) 40W
, 1.8m
(6ft) 50W
,
Length 1.2m(4ft) is our hottest selling size, normally we have hundreds pieces in stock. Fast delivery time.
And this lamp is linkable with seamless connection, it is allowed to connect long continuous light such as 3m, 6m, 12m, 20m, 30m, 60m etc. Besides, L shape, Rectangle shape, and other customized designs are welcome.
Product features
CRI>80, 105lm/w ±5%, inside with reflective sheet,
flicker-free, metal case driver built-in,
no visible screws on end cap(aluminum material), nice outlook design,
50,000 hours lifespan, with branded LED chips and power driver,
5 years warranty.
0-10V dim, DALI dim, Triac dim are standard.
Detailed Images
Advantage:
Extra slim edge of PC cover, lighting uniformly with reflective sheet.
Aluminum end cap, no visiable screw. Screws are fixed inside.
LED PCB board as light source, has good heat dissaption.
Normally we supply separate L joint 300x300mm
connectors
, client could form the rectangular shapes with linear light.
About line straight connection:
With 2pcs metal straps and 8pcs screws, using a
screwdriver, peopel can finish one connection within one minute.
Make sure to put 2 lamps are as close together as possible. The fixing is tight, no gap, no light leakage, and easy operation for project also save time.
Product Paramenters
|
Item Number
|
Dimension
|
Power
|
Shell Color
|
Light color
|
Other spec
|
|
LS5070-1.0M
|
L1000xW50xH70mm
|
18W
|
White
Black
Silver
|
3000K
4000K
5700K
6500K
|
PF>0.95,
LED PCB, branded LED chip,
branded power driver,
FLICKER-FREE,
105m/w ±5%,
CRI>80
different mounting available.
|
|
LS5070-1.2M
|
L1200xW50xH70mm
|
30W
|
|
|
|
|
LS5070-1.5M
|
L1500xW50xH70mm
|
40W
|
|
|
|
|
LS5070-1.8M
|
L1800xW50xH70mm
|
50W
|
|
|
|
Product Application

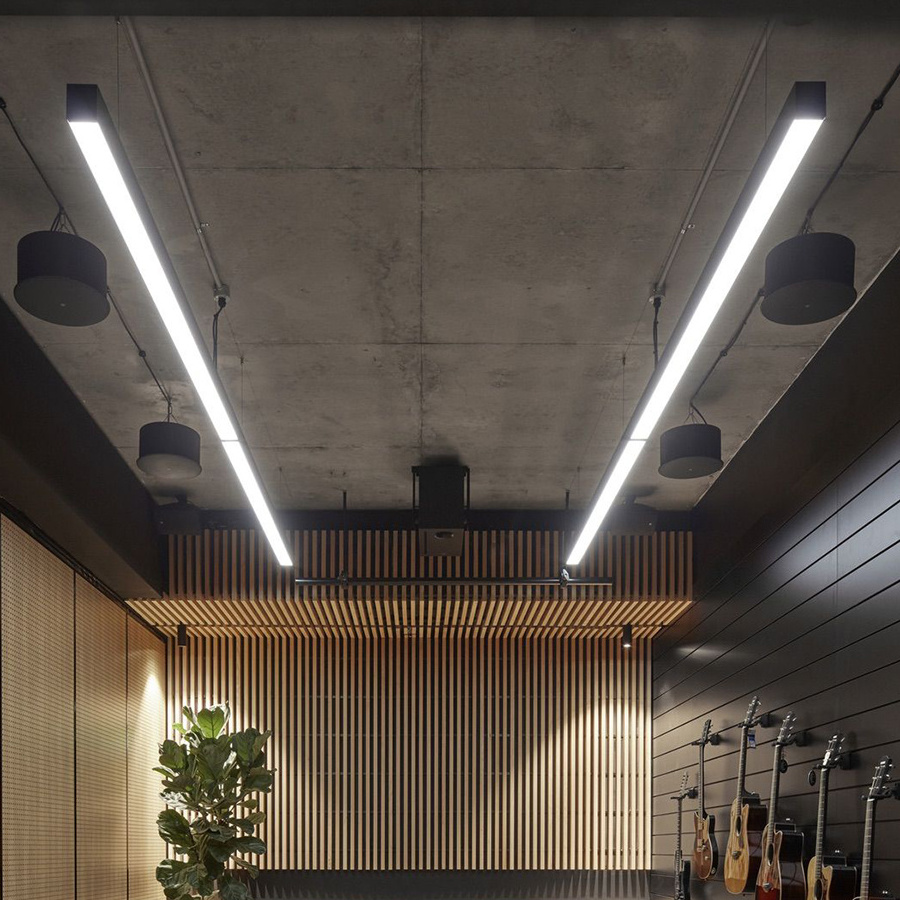

Apply to shopping mall, commercial office, school, meeting room, retail store, car dealer display hall, bank, hospitality,
residence, lobby, hotel,
garage, warehouse,
other indoor places, etc.
