Quick Details
-
Junction Box:
-
IP65 Rated Standard Waterproof with bypass diode
-
Pv cable:
-
MC4 900mm
-
Efficiency:
-
20%-22.5% High Efficiency
-
Maximum System Voltage:
-
DC1000V (IEC)
-
Bendale degree:
-
30-90
-
Backsheet:
-
TPT
-
Connector:
-
MC4 Compatible Connector
-
Warranty:
-
10Years Output Power Guarantee
Quick Details
-
Place of Origin:
-
Henan, China
-
Type:
-

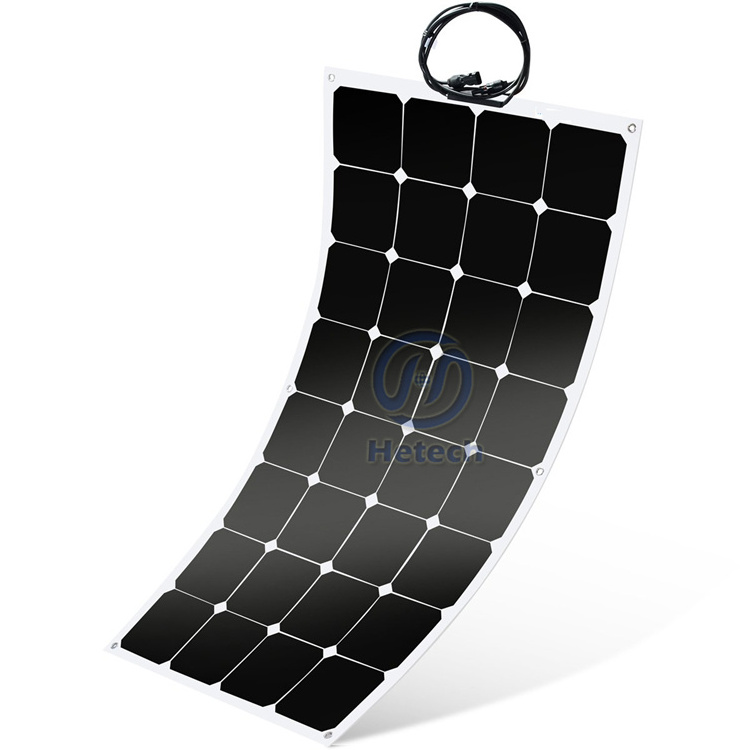

100w Sunpower flexible solar panel
-
Solar cell:
-
20.5% sunpower mono Solar Cells
-
Junction Box:
-
IP65 Rated Standard Waterproof with bypass diode
-
Pv cable:
-
MC4 900mm
-
Efficiency:
-
20%-22.5% High Efficiency
-
Maximum System Voltage:
-
DC1000V (IEC)
-
Bendale degree:
-
30-90
-
Backsheet:
-
TPT
-
Connector:
-
MC4 Compatible Connector
-
Warranty:
-
10Years Output Power Guarantee
Product Description
| Electrical Characteristic: | |
| Module Type | HT-M100W-32P |
| Peak power | 100W 0~+3%Toleracne |
| Optimum Operating Voltage(Vmp) | 16.0V |
| Optimum Operating Current(Imp) | 6.25A |
| Open-Circuit Voltage(Voc) | 19.2V |
| Short-Circuit Current(Isc) | 6.88A |
| Maximum system voltage | DC1000V |
| Warranty |
5 years product defect warranty.
90% in 10 years, 80% of 25 years. |
| Mechanical Characteristics: | |
|---|---|
| Module type | HT-M100W-32P |
| Size | 1060*540*3mm |
| Weight | 2kg |
| No. of Cells | 32(4*8) pcs |
| Cell dimension | Mono sunpower 125*125mm |
| Junction Box | IP67/IP65 rated |
| Connectors | MC4 |
| Temperature coefficient: | |
| NOCT cell | 46±2°c |
| Temperature coefficient Voc(%) | +0.04±0.015%/°c |
| Temperature coefficient Pm(%) | -0.3±0.02%/°c |
| Temperature coefficient Im(%) | -0.45±0.05%/°c |
| Temperature coefficient Vm(%) | +0.04%/°c |
| Operating temperatures | -0.32±0.02%/°c |
| Operating temperatures | -40°c~+90°c |
| Surface pressure | 60m/s(200kg /m² ) |
