Quick Details
-
Filling Accuracy:
-
±0.5-1%
-
Packaging Type:
-
strong wooden case
-
Voltage:
-
220V/380V 50/60Hz
-
Place of Origin:
-
Tianjin, China
-
Brand Name:
-
Solidpack
-
Dimension(L*W*H):
-
2000*900*2200mm (L*W*H)
-
Weight:
-
450 KG
-
Product name:
-
Piston Filling Machine
-
Material:
-
Stainless Steel 304/316
-
Keywords:
-
cooking edible oil filler machine
-
Usage:
-
cooking edible oil filler machine
-
Suitable for:
-
High Viscous Products
-
Feature:
-
High Precision Filling Level
-
Control:
-
PLC+ Touch Screen
-
After Warranty Service:
-
Video technical support Online support
-
After-sales Service Provided:
-
Video technical support Online support
-
Certification:
-
CE
Quick Details
-
Machinery Capacity:
-
Other, 2000BPH
-
Packaging Material:
-
Wood
-
Filling Material:
-
Other, Oil
-
Filling Accuracy:
-
±0.5-1%
-
Packaging Type:
-
strong wooden case
-
Voltage:
-
220V/380V 50/60Hz
-
Place of Origin:
-
Tianjin, China
-
Brand Name:
-
Solidpack
-
Dimension(L*W*H):
-
2000*900*2200mm (L*W*H)
-
Weight:
-
450 KG
-
Product name:
-
Piston Filling Machine
-
Material:
-
Stainless Steel 304/316
-
Keywords:
-
cooking edible oil filler machine
-
Usage:
-
cooking edible oil filler machine
-
Suitable for:
-
High Viscous Products
-
Feature:
-
High Precision Filling Level
-
Control:
-
PLC+ Touch Screen
-
After Warranty Service:
-
Video technical support Online support
-
After-sales Service Provided:
-
Video technical support Online support
-
Certification:
-
CE
Our Advantages
Specification
|
Material
|
SUS304 and SUS316L
|
|
|
|
|
||||
|
Filling heads
|
4
|
6
|
8
|
10
|
12
|
||||
|
Filling range
|
10-100ml/ 30-300ml/ 50-500ml/ 100-1000ml/ 250-2500mml/ 300-3000ml/ 500-5000ml (600-6000ml can be tailor made)
|
|
|
|
|
||||
|
Filling speed (bottles/hour&based on 500ml)
|
2000-2500
|
2500-3000
|
3000-3500
|
3500-4000
|
4000-4500
|
||||
|
Filling precision
|
±0.5-1%
|
|
|
|
|
||||
|
power
|
220/380V 50/60Hz 1.5Kw (Can be tailor made to suit different countries)
|
|
|
|
|
||||
|
Air pressure
|
0.4-0.6Mpa
|
|
|
|
|
||||
|
Machine size(L*W*Hmm)
|
2000*900*2200
|
2400*900*2200
|
2400*900*2200
|
3200*900*2200
|
3200*900*2200
|
||||
|
Weight
|
450kg
|
500kg
|
550kg
|
600kg
|
650kg
|
||||

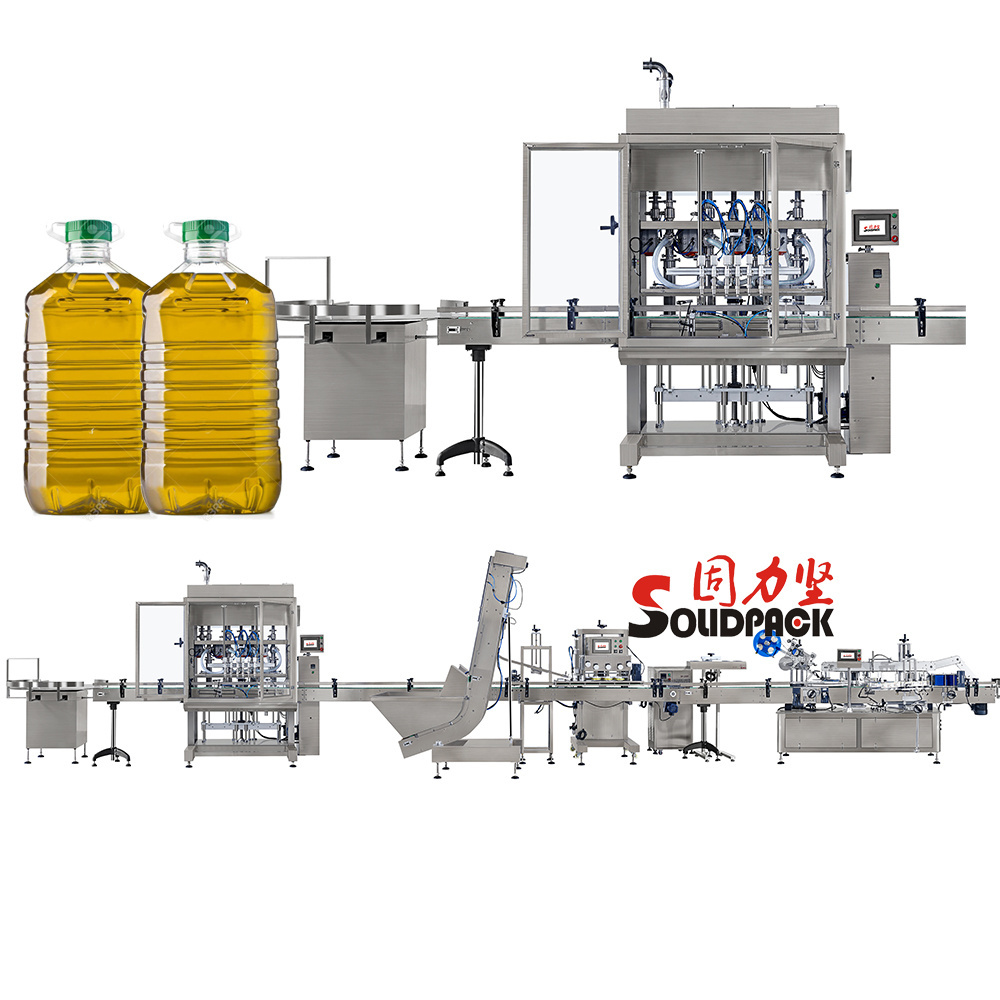

Product Description
This machine adopts piston pump and rotary valve
Suitable for filling all kinds of thick& sticky material:
In food industry like cooking edible oil filler machine , yogurt, tomato paste, chilli sauce, honey, butter, ketchup lunch meat etc.
In food industry like cooking edible oil filler machine , yogurt, tomato paste, chilli sauce, honey, butter, ketchup lunch meat etc.
The filling heads are specially made, with the function of anti-drop and anti-drawing & bubble-kill. Can make diving filling heads to move together with liquid level.
To ensure the bottles and filling heads are in the correct position, we add a special bottles position device to make the whole filling process smooth and stable. No bottle no filling
The machine adopts full-auto PLC + human-computer touch screen control system. For different grams for example, 100ml, 500ml, 1000ml, we set three procedures, mode 1, mode 2, model 3``` The PLC can save these parameters for later use. Operators do not need too much complicated adjustments; the filling machine can switch between the three models easily.
cooking edible oil filler machine
