Quick Details
-
Place of Origin:
-
Shandong, China
-
Brand Name:
-
QK
-
Voltage:
-
380V
-
Power:
-
10.5KW
-
Dimension(L*W*H):
-
3500*800*1400mm
-
Weight:
-
800 kg
-
Marketing Type:
-
New Product 2022
-
Input voltage:
-
380V
-
Machine power:
-
10.5KW
-
Processing speed:
-
0-4m/min
-
The smallest processing size:
-
45 degrees
-
Machinable thickness:
-
1-20mm
-
Total machine weight:
-
800kg
-
Dimensions:
-
3500*800*1400mm
-
Total power:
-
11.5Kw
-
Minimum grinding size:
-
60mm * 60mm
Quick Details
-
Machine Type:
-
Other
-
Glass Thickness:
-
1-20mm
-
Production Capacity:
-
/
-
Place of Origin:
-
Shandong, China
-
Brand Name:
-
QK
-
Voltage:
-
380V
-
Power:
-
10.5KW
-
Dimension(L*W*H):
-
3500*800*1400mm
-
Weight:
-
800 kg
-
Marketing Type:
-
New Product 2022
-
Input voltage:
-
380V
-
Machine power:
-
10.5KW
-
Processing speed:
-
0-4m/min
-
The smallest processing size:
-
45 degrees
-
Machinable thickness:
-
1-20mm
-
Total machine weight:
-
800kg
-
Dimensions:
-
3500*800*1400mm
-
Total power:
-
11.5Kw
-
Minimum grinding size:
-
60mm * 60mm
Product Description

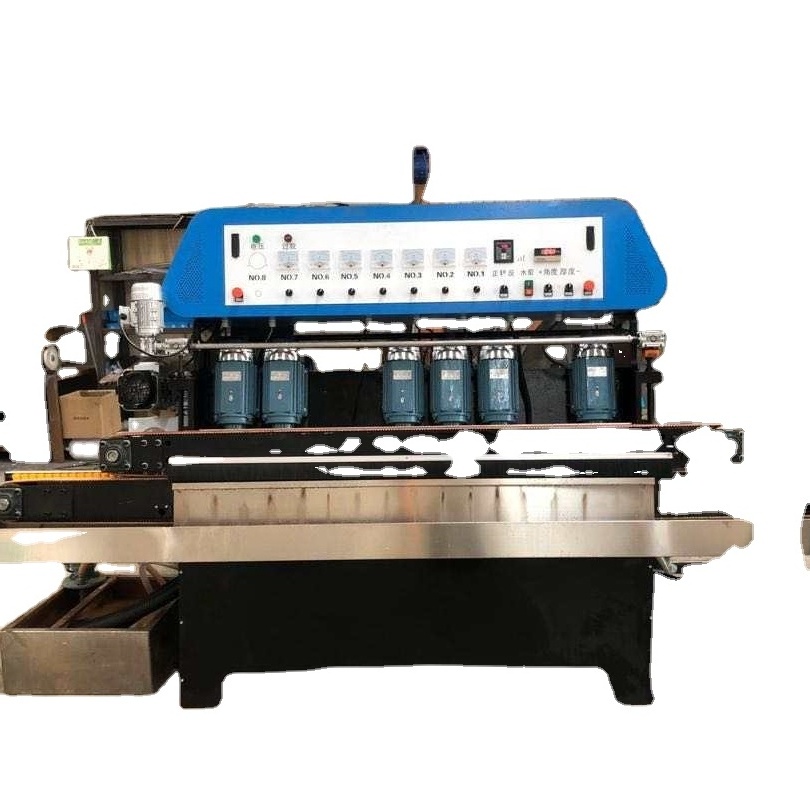

Glass Processing Machinery Industrial automatic high speed Glass Straight-Line edging Machine Glass Edger
The glass edging machine is mainly suitable for the processing of furniture glass, building glass and craft glass. It is mainly used for grinding and polishing the bottom edge and chamfering of ordinary plate glass. Generally there are manual, digital display control, PLC computer control configuration. Reasonable operation, daily clean lubrication maintenance, can ensure the normal operation of machinery, prolong the life of machinery, improve the processing output.
Product Performance
|
Product name
|
The glass edging machine is mainly suitable for the processing of furniture glass, building glass and craft glass. It is mainly
used for grinding and polishing the bottom edge and chamfering of ordinary plate glass. Generally there are manual, digital display control, PLC computer control configuration. Reasonable operation, daily clean lubrication maintenance, can ensure the normal operation of machinery, prolong the life of machinery, improve the processing output. |
|
|
|
|||
|
Input voltage
|
380V
|
|
|
|
|||
|
Machine power
|
10.5KW
|
|
|
|
|||
|
Processing speed
|
0-4m/min
|
|
|
|
|||
|
The smallest processing size
|
45 degrees
|
|
|
|
|||
|
Machinable thickness
|
1-20mm
|
|
|
|
|||
|
Total machine weight
|
800kg
|
|
|
|
|||
|
Dimensions
|
3500*800*1400mm
|
|
|
|
|||
|
Key Selling Points
|
Long Service Life
|
|
|
|
|||
|
Total power
|
11.5Kw
|
|
|
|
|||
|
Minimum grinding size
|
60mm * 60mm
|
|
|
|
|||
Product Pictures
Precautions when using the linear edger: The working mode of the linear edger (straight edge machine, round edge machine, bevel edger) is to clamp the glass by the front and rear platens and drive its linear motion for grinding. Two points must be paid attention to when using:
①The joint surfaces of the front and rear pressure plates and the guide rails should be lubricated frequently, otherwise the normal service life of the machine will be affected due to the premature wear of the front and rear pressure plates and the working surfaces of the guide rails. Although some models have automatic lubricating devices, it is necessary to check whether the lubricating pipeline is smooth;
② The clamping force should be appropriate when clamping the glass, too loose will affect the grinding quality, too tight will increase the load of the machine, easy to produce shaking and crawling phenomenon, and it is easy to break the glass when grinding thin glass. The clamping force can be tested by clamping a piece of slightly larger glass on the machine, that is, clamping the glass in the middle of the machine, and moving the glass with both hands when the machine is stopped.
Glass Processing Machinery Industrial automatic high speed Glass Straight-Line edging Machine Glass Edger
