This access control board's software provides numerous access control and alarm monitoring features: expiry date for clubs,
automatic activation, time zones, supervision, anti-passback, activity reports... Each alarm input is programmable: operating mode (NO or NC), time zones, local reflex (activation of outputs according to input status). Specific alarms are triggered according to the number of unsuccessful attempts, the time limit for door closing (door alarm), the duress code...Whenever required, the data stored in the controllers is transferred to the computer and activity reports are printed. Each controller works independently and keeps its own database.
- Product Details
- {{item.text}}
Quick Details
-
Brand Name:
-
ACM
-
Model Number:
-
ACM-WEG04
-
Product name:
-
Four Doors Access Control Board Door Access Control Panel
-
Card Capacity:
-
20000
-
Communication:
-
Wiegand
-
Transaction Capacity:
-
100000
-
Indicator:
-
Color LED Indicator
-
Panel size:
-
160*106mm
-
Communication Protocol:
-
TCP/IP, Wiegand 26 , Wiegand 34
-
Weight:
-
0.5kg
-
Power supply:
-
DC 12V
-
Keyword:
-
Access Control Solution System
Quick Details
-
Special Features:
-
Other
-
Customized support:
-
OEM, ODM
-
Place of Origin:
-
Guangdong, China
-
Brand Name:
-
ACM
-
Model Number:
-
ACM-WEG04
-
Product name:
-
Four Doors Access Control Board Door Access Control Panel
-
Card Capacity:
-
20000
-
Communication:
-
Wiegand
-
Transaction Capacity:
-
100000
-
Indicator:
-
Color LED Indicator
-
Panel size:
-
160*106mm
-
Communication Protocol:
-
TCP/IP, Wiegand 26 , Wiegand 34
-
Weight:
-
0.5kg
-
Power supply:
-
DC 12V
-
Keyword:
-
Access Control Solution System
Product Description
Entry Door Security System Wiegand Solution Controller Board TCP IP RFID Network Two Door Access Control Panel
|
Product Parameter
|
Parameter Description
|
|
Model
|
WG04
|
|
User
|
40,000
|
|
Event Buffer
|
100,000
|
|
Power / Current
|
DC 9.6V-14.4V, Rated Max.1A
|
|
Reader Port
|
4ea (26bit Wiegand, 8bit Burst for PIN)
|
|
Communication
|
Wiegand 26 , Wiegand 34， TCP/IP
|
|
Baud Rate
|
38,400bps (Recommended) / 9600bps, 19,200bps, 57,600bps (selectable)
|
|
Input Port
|
6ea (Exit Button#1, Exit Button#2, Door Sensor#1, Door Sensor#2, Aux#1, Aux#2)
|
|
Output Port
|
2ea (2 FORM-C Relay Output, SPDT 5A@36VDC/8A@30VAC)
|
|
|
2ea (2 Aux FORM-C Relay Output, SPDT 2A@30VDC)
|
|
LED Indicator
|
Yes, LED indication for communication, power, status and punch card
|
|
Operating Temperature
|
0to +55C
|
|
Operating Humidity
|
10% to 80% relative humidity non-condensing
|
|
Dimension (L*W)mm
|
218(W)*106(H)(single board )
345(W)*275(H)*70(D)(with power supply and metal box) |
|
Certification
|
CE, FCC, RoHS
|

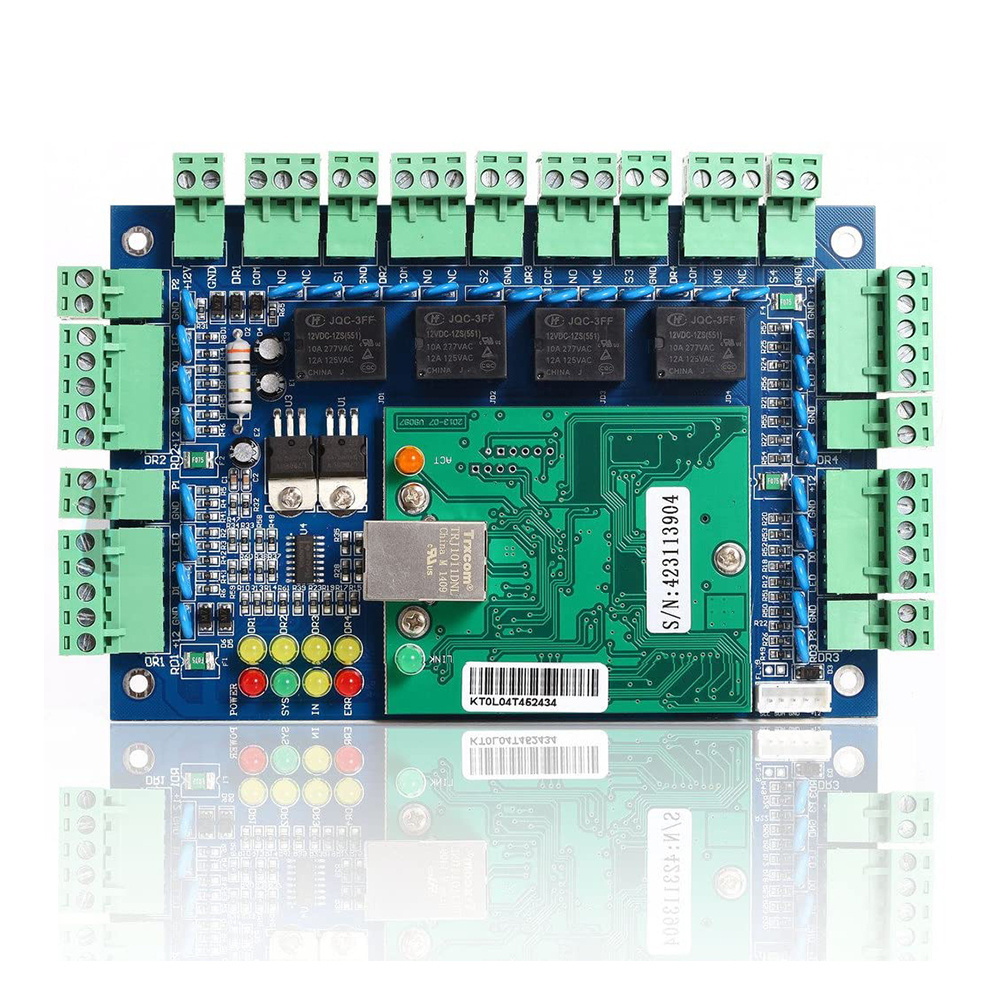

Detailed Images
Hardware:
1. Support 4 doors--Door with four readers and two push button interface.
2. With door sensor for door
3. Relay output for use with Normally Open and/or Normally Closed type locks.
4. Can Opeate off-line and real-time monitoring.
5. 100,000 events can be stored.(off-line), Can store unlimited events to PC.
6. 40,000 users can be registered.
7. Network communication using TCP/IP 10M/100M adaptive.
8. Expandable to use unlimited number of controllers.
