Quick Details
-
Model Number:
-
H44X
-
Brand Name:
-
THT
-
Standard or Nonstandard:
-
Standard
-
Type:
-
flapper type check valve
-
Connection:
-
flange end
-
Body material:
-
Ductile Iron
-
Certificate:
-
ISO9001:2008 CE API
-
Medium:
-
clean water, sewage
-
nominal diameter:
-
DN50-DN600
-
Product name:
-

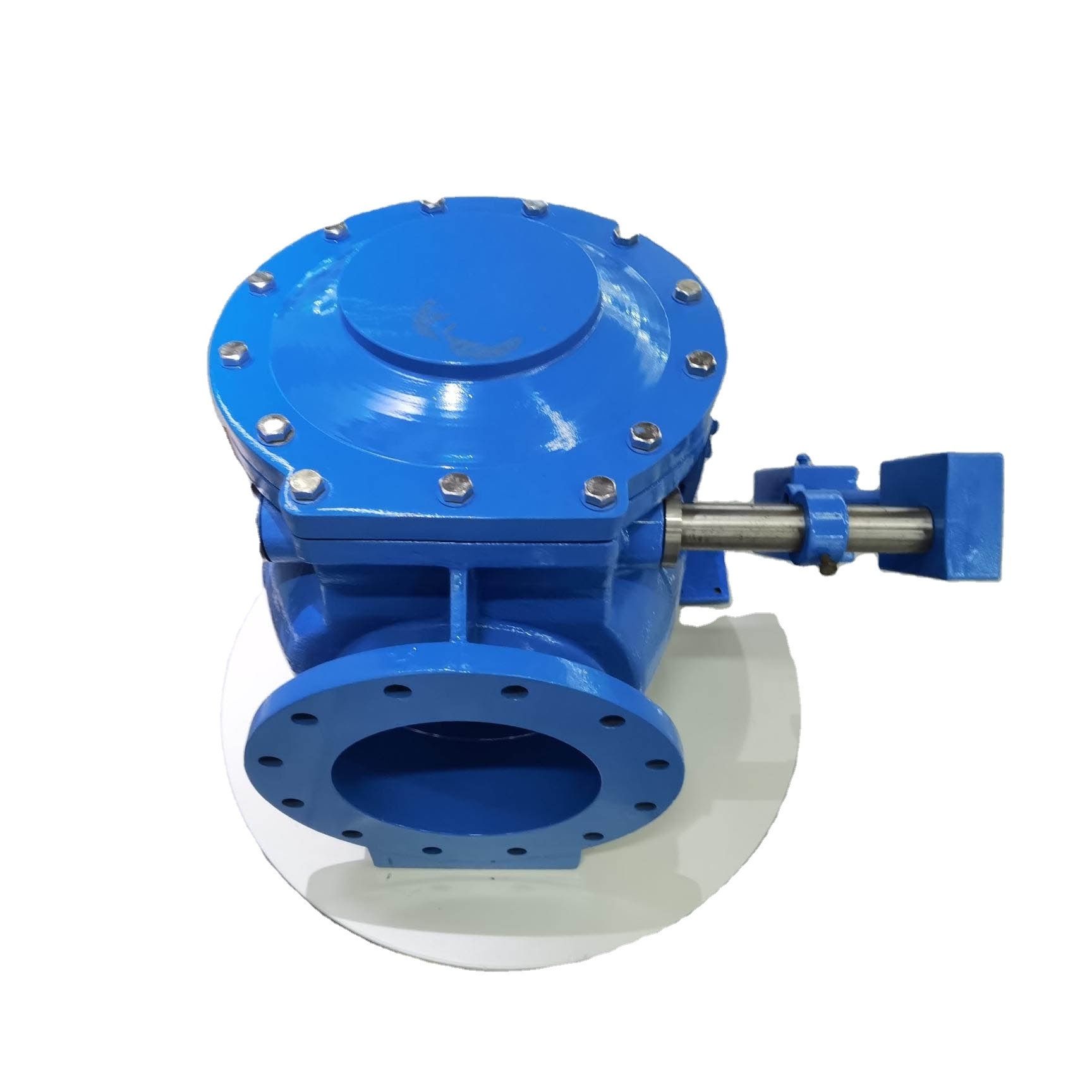

flange type ductile iron swing flapper check valve
Quick Details
-
Port Size:
-
DN50-DN600
-
Warranty:
-
12 months
-
Place of Origin:
-
Tianjin, China
-
Model Number:
-
H44X
-
Brand Name:
-
THT
-
Standard or Nonstandard:
-
Standard
-
Type:
-
flapper type check valve
-
Connection:
-
flange end
-
Body material:
-
Ductile Iron
-
Certificate:
-
ISO9001:2008 CE API
-
Medium:
-
clean water, sewage
-
nominal diameter:
-
DN50-DN600
-
Product name:
-
flange type ductile iron swing flapper check valve
Product Description
Brief introduction
The rubber disc in the check valve is made of steel plate, steel rod and reinforced nylon cloth as the substrate, and the outer layer is covered with rubber. The service life of the valve disc can reach 1 million times. The rubber disc check valve is designed with full flow area, which has the characteristics of small head loss, less accumulation of debris and easy maintenance.
Rubber disc check valve is mainly suitable for horizontal installation of water supply and drainage system. It can be installed at the outlet of water pump to prevent backflow and water hammer damage to the pump. The rubber disc check valve can also be installed on the bypass pipe of the inlet and outlet pipes of the reservoir to prevent the backflow of pool water into the water supply system.
The rubber disc check valve
is generally suitable for clean media, not for media containing solid particles and high viscosity.
|
Performance specification
|
|
|
|
|
||||
|
Nominal Pressure
|
|
PN10, PN16
|
|
|
||||
|
Testing Pressure
|
|
Shell: 1.5 times rated pressure,
Seat: 1.1 times rated pressure. |
|
|
||||
|
Working Temperature
|
|
≤80°C
|
|
|
||||
|
Suitable Media
|
|
Clean water, sewage
|
|
|
||||
|
Material of main parts
|
|
|
|
|
||||
|
Body material
|
|
|
Ductile iron
|
|
||||
|
Disc material
|
|
|
rubber assembly
|
|
||||
|
Bonnet material
|
|
|
Ductile iron
|
|
||||
|
Spring material
|
|
|
Stainless steel
|
|
||||
