Quick Details
-
Product name:
-

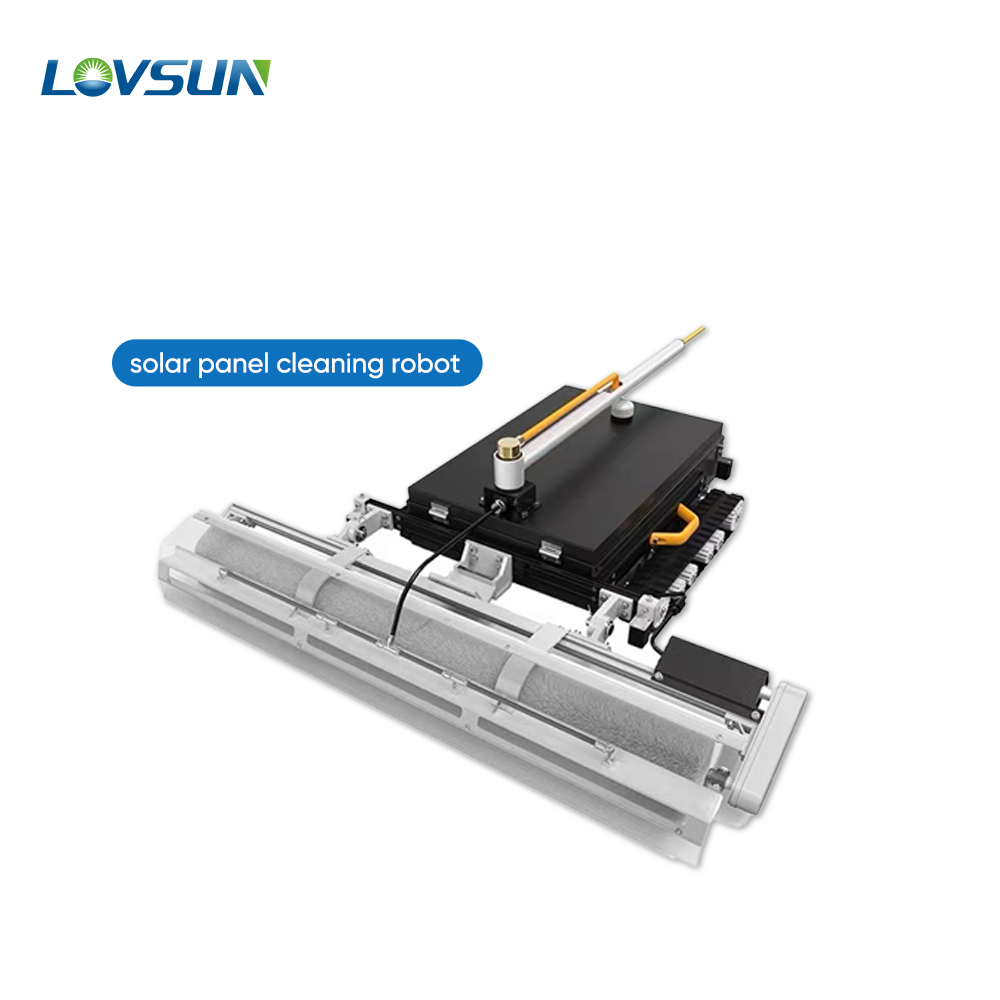

Solar Panel Cleaning Brush
-
Application:
-
Clean Solar Photovoltaic Panels
-
Function:
-
PV Module Clean
-
Cleaning Mode:
-
Rolling Brush + Water Spray
-
Feature:
-
Fully Autonomous
-
Power Supply:
-
220V / Lithium Battery
-
Cleaning type:
-
Water Washing
-
Usage:
-
Water Dust Cleaning
-
Work Efficiency:
-
0.5-0.8MWp/day/pcs
-
Length:
-
150m
Quick Details
-
Place of Origin:
-
Anhui, China
-
Brand Name:
-
Lovsun
-
Model Number:
-
LS-X8
-
Product name:
-
Solar Panel Cleaning Brush
-
Application:
-
Clean Solar Photovoltaic Panels
-
Function:
-
PV Module Clean
-
Cleaning Mode:
-
Rolling Brush + Water Spray
-
Feature:
-
Fully Autonomous
-
Power Supply:
-
220V / Lithium Battery
-
Cleaning type:
-
Water Washing
-
Usage:
-
Water Dust Cleaning
-
Work Efficiency:
-
0.5-0.8MWp/day/pcs
-
Length:
-
150m
Product Description
|
Technical parameters
|
|
|
|
operating voltage
|
24V
|
|
|
dle speed
|
250 rpm
|
|
|
Travel speed
|
22m/min
|
|
|
Cleaning width
|
1100mm
|
|
|
endurance
|
3-4 hours
|
|
|
Cleaning type
|
Washing/Dry cleaning
|
|
|
Working angle
|
Washing 15°/Dry cleaning 15°
|
|
|
power supply mode
|
Lithium battery (24V)*2
|
|
|
Maximum water consumption
|
20L/min
|
|
|
operating temperature range
|
-20-50℃
|
|
|
Brush wire material
|
New nylon yarn
|
|
|
Equipment weight
|
29kg(excluding battery)
|
|
|
outline dimension
|
1200*1000*350mm
|
|
Product Feature
Technical Parameter
|
technical parameter
|
|
|
|
|||
|
Specification
|
X8-1
|
X8-2
|
X8-3
|
|||
|
Applicable Specification
|
1650 board
|
1960 board
|
Full size
|
|||
|
Cleaning method
|
Wash/Dry clean
|
Wash/Dry clean
|
Wash/Dry clean
|
|||
|
brush header
|
2
|
2
|
2
|
|||
|
single row brush length
|
1650mm
|
1960mm
|
Customer design
|
|||
|
Travel speed（m/min)
|
12-15m
|
12-15m
|
12-15m
|
|||
|
Power supply
|
Lithium ion battery
|
Lithium ion battery
|
Lithium ion battery
|
|||
|
battery life
|
5-6hours
|
5-6hours
|
5-6hours
|
|||
|
brush speed
|
500-600rpm
|
500-600rpm
|
500-600rpm
|
|||
|
8 hours effciency
|
1.2-1.5mw
|
1.2-1.5mw
|
1.2-1.5mw
|
|||
