The MENGSHAN® is
anti-corrosion self adhesive pipe wrap tape
a multilayer system used for the protection of steel pipelines.
MENGSHAN
® 1019,1027 Liquid Adhesives can be used as primers for this system.In addition to serving as primers, these liquidadhesives themselves represent an anti corrosion layer and provide a uniformly smooth contact surface to promote high adhesion of the coating system to the pipe. They are designed for machine or brush application and formulated with stress-corrosion cracking inhibitors.
- Product Details
- {{item.text}}
Quick Details
-
Model Number:
-
980-15
-
Backing:
-
Special blend of stabilized polyethylene
-
Adhesive:
-
Butyl rubber and Adhesion Promoting Resins
-
qualification:
-
ASTM D1000,AWWA C 214,EN 12068 standards
-
Color:
-
Black
-
Thickness:
-
15mils(0.381mm),20mils(0.508mm),25mils(0.635mm),30mils(0.762mm)
-
Width:
-
2"(50mm),,4"(100mm),6"(150mm),9"(228mm),12"(305mm)18" (457mm)
-
OEM:
-
Available
-
Brand:
-
MENGSHAN
-
Certification:
-
DVGW
-
Performance:
-
AWWA C-214,ASTM D 1000,EN 12068
Quick Details
-
Processing Service:
-
Moulding, Cutting
-
Place of Origin:
-
Shandong, China
-
Brand Name:
-
MENGSHAN
-
Model Number:
-
980-15
-
Backing:
-
Special blend of stabilized polyethylene
-
Adhesive:
-
Butyl rubber and Adhesion Promoting Resins
-
qualification:
-
ASTM D1000,AWWA C 214,EN 12068 standards
-
Color:
-
Black
-
Thickness:
-
15mils(0.381mm),20mils(0.508mm),25mils(0.635mm),30mils(0.762mm)
-
Width:
-
2"(50mm),,4"(100mm),6"(150mm),9"(228mm),12"(305mm)18" (457mm)
-
OEM:
-
Available
-
Brand:
-
MENGSHAN
-
Certification:
-
DVGW
-
Performance:
-
AWWA C-214,ASTM D 1000,EN 12068

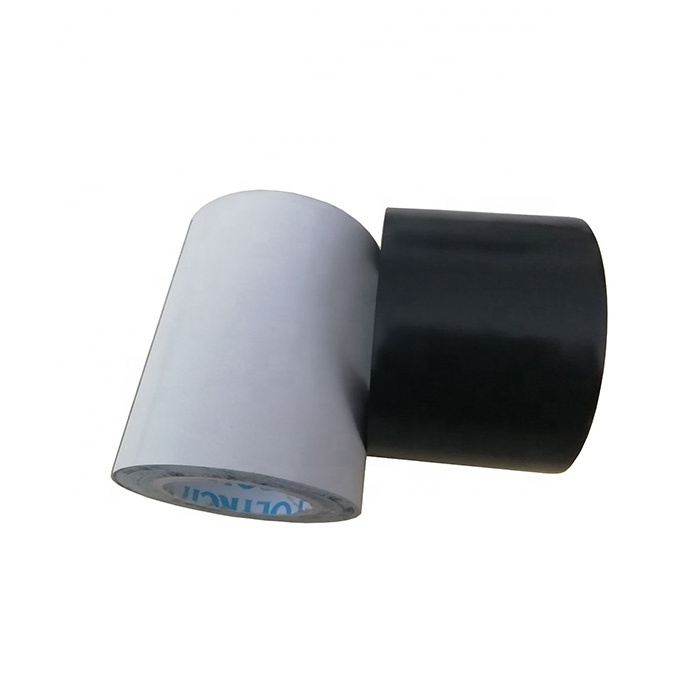

Product Description
MENGSHAN
butyl rubber anti corrosion tape
The Anti-Corrosion layer MENGSHAN® is engineered to assure a high bond to the primed surface with excellent conformability characteristics. The mechanical protection layer
MENGSHAN
® ,achieves a complete bond to the
MENGSHAN
® inner layer, providing maximum handling and in-service protection for the coating system. The adhesives in these and all
MENGSHAN
tape systems contain proven anti-microbial additives.The
MENGSHAN
® 980/955 can also be used for ductile iron pipes, in this case the use of
MENGSHAN
®1027 primer is recommended.
Features
-Resistant to soil stress
- Excellent adhesion to pipe and self
-Low cathodic protection
-Long-term in-ground performance
- Serve for low-high temperatures - Cold applied
-Uniform coating thickness
-Compatible with all pipe diameters and generic plant
coating systems
-Qualified ASTM D1000,AWWA C 214,EN 12068 standards
|
PRODUCT PROPERTIES
|
MENGSHAN980-15
|
MENGSHAN 980-20
|
MENGSHAN 980-25
|
MENGSHAN 980-30
|
|
Total Thickness
|
15mil(0.381mm)
|
20mil(0.508mm)
|
25mil(0.635mm)
|
30mil(0.762mm)
|
|
Backing of PE Film
|
10mils(0.254 mm)
|
15mil(0.381mm)
|
20mil(0.508mm)
|
25mil(0.635mm)
|
|
Butyl Rubber Adhesive
|
5 mils(0.127 mm)
|
5mil(0.127mm)
|
5mil(0.127mm)
|
5mil(0.127mm)
|
|
Tensile Strength
|
50N/cm
|
60N/cm
|
70 N/cm
|
80 N/cm
|
|
Elongation
|
300%
|
350%
|
350%
|
450%
|
|
Peel Adhesion to Primed Steel
|
24 N/cm
|
25 N/cm
|
26.5 N/cm
|
33 N/cm
|
|
Water Vapor Transmission Rate
|
0.10g/m2
|
0.10g/m2
|
0.08g/m2
|
0.06g/m2
|
|
Water absorption At+23℃
|
0.10%
|
0.10%
|
0. 08%
|
0. 06%
|
|
Volume Resistivity
|
2.0x1015 ohm.cm
|
2.5x1015 ohm.cm
|
2.5x1015 ohm.cm
|
2.5x1015 ohm.cm
|
|
Dielectric Strength
|
30 kv
|
36 kv
|
43 kV
|
45 kV
|
About Us
Jining Qiangke Pipe Anticorrosion Materials CO.,Ltd
We are the most professional manufacturers of Coating Tapes in China for the Corrosion protection of pipelines and specialty applications .
A company supplying Polyethylene tape, Polypropylene geotextile tape , Visco-Elastic tape, 3-Ply tape Coating Systems to the corrosion industry within the oil, gas and water pipeline construction industry for both onshore and offshore applications
Approved Material Supplier of China National Petroleum Corporation (CNPC) and China Petroleum Chemical Corporation(SINOPEC),SGS .High-quality anti-corrosion systems providing anti-corrosion solutions for oil pipelines, natural gas, chemicals and water transmission and distribution pipelines, etc.
ISO 14001
ISO9001
ISO18001
MENGSHAN BRAND
CNPC CERTIFICATE
CCPIT CERTIFICATE
Testing instrument
Thickness gauge
For thickness of tape
Volume surface resistivity tester
For Volume Resistivity of tape
Electric spark detector
There is no leakage point in the tape coating
Steam tester
For Water Vapor Transmission Rate of tape
Baking machine
For Application Temperature of tape
Tension teste
For Elongation of tape
Export Display
Bangladesh
Indonesia
Iraq
FAQ
1.What is your payment method?
We prefer to T/T 30% deposit payment in advance, 70% balance paid off before shippment.
2.Can we make an small order?
Yes, we can accept small order, but there won't be discount.
3.What is the lead time?
As usual, we will complete the delivery within 5-20 days after your order.
4.Can I get some samples for testing before placing order?
Yes, we can provide you some free samples for your reference if you would like to bear the express cost.
5. Can you make other sizes and packages for this product?
Yes, we can make other sizes as your requirement, normally our quotation will contain the common package, if you need your own packages, you'd better advise your requirement ahead of time for an accurate quote.
6. Will you accept us to visit you?
Warmly welcome, we are in Jining city, welcome to visit our factory.
