Quick Details
-
Model Number:
-
Z45x-16
-
Brand Name:
-
LSB
-
standard:
-
DIN 3352 F4
-
Body material:
-
ductile iron
-
Working pressure:
-
1.6MPA
-
size:
-
DN50-600
-
Medium:
-
water
-
Certificate:
-
ISO9001
-
working temperature:
-
-10°C~120°C
-
Connection:
-
flange
-
Seal:
-
NBR/EPDM
-
stem type:
-
non rising
-
Certification:
-
GB/T 9001-2016, ISO 9001:2015
Quick Details
-
Port Size:
-
DN50-600
-
Warranty:
-
1 year
-
Place of Origin:
-
Hebei, China
-
Model Number:
-
Z45x-16
-
Brand Name:
-
LSB
-
standard:
-
DIN 3352 F4
-
Body material:
-
ductile iron
-
Working pressure:
-
1.6MPA
-
size:
-
DN50-600
-
Medium:
-
water
-
Certificate:
-
ISO9001
-
working temperature:
-
-10°C~120°C
-
Connection:
-
flange
-
Seal:
-
NBR/EPDM
-
stem type:
-
non rising
-
Certification:
-
GB/T 9001-2016, ISO 9001:2015

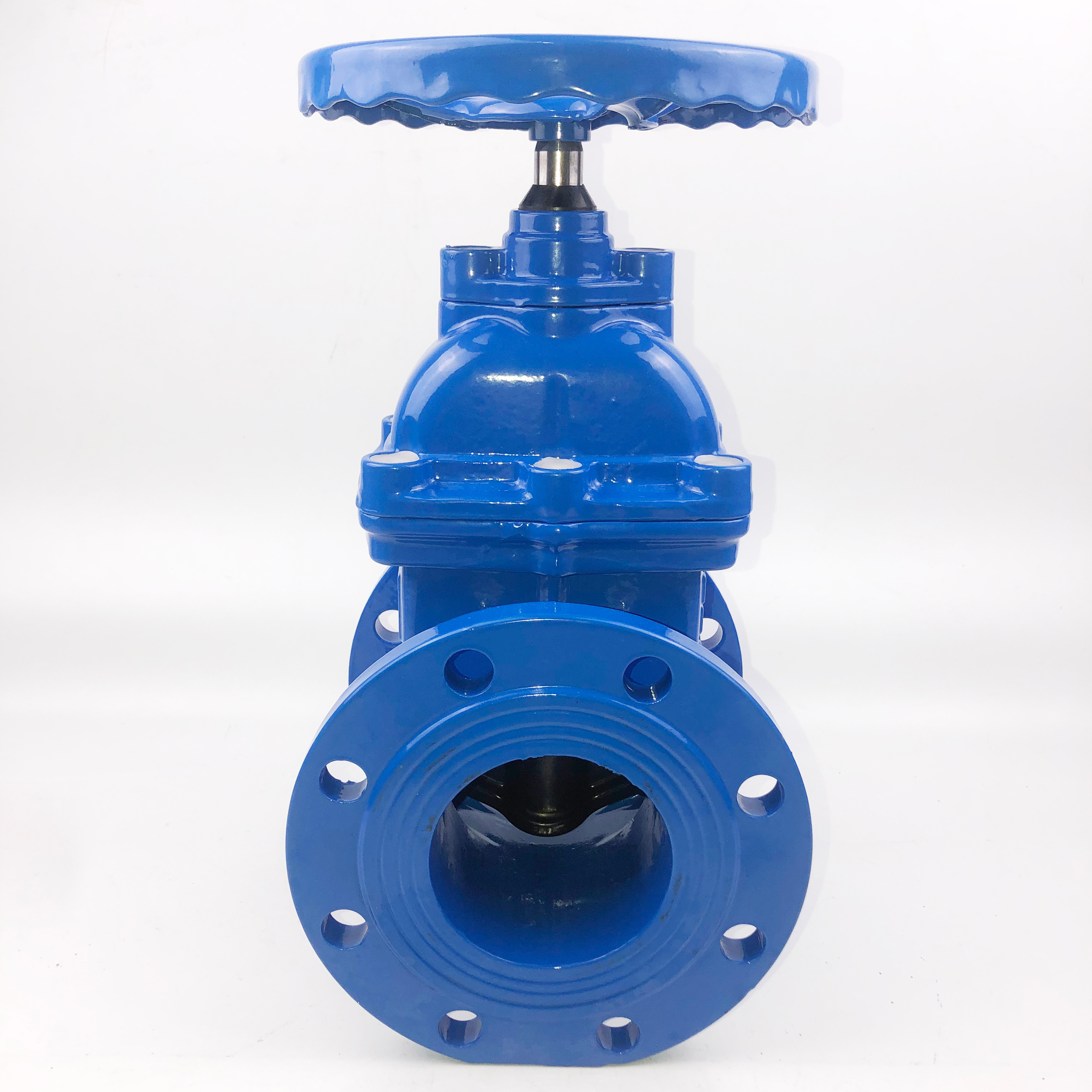

Product description
Parts and materials
|
Valve body
|
|
GGG40
|
|
||
|
Bonnet
|
|
GGG40
|
|
||
|
Sealing ring
|
|
Brass
|
|
||
|
Disc
|
|
GGG40+EPDM
|
|
||
|
Stem nut
|
|
DN50-350 Brass, DN400-600 GGG40
|
|
||
|
Stem
|
|
SS410
|
|
||
|
Bonnet gasket
|
|
EPDM
|
|
||
|
O-ring
|
|
NBR/EPDM
|
|
||
Function and Specification
1. Gate valve s are not recommended for throttling service.
2. These valves are to be used either fully closed or fully open position.
3. Different colours toidentify differents fluids.
