Shandong Duya New Energy Vehicle Industry Co., Ltd. is a company that mainly produces electric vehicles. With 15 years of experience in electric vehicle production, it is a high-tech electric vehicle enterprise engaged in the manufacture of environmentally friendly electric vehicles, and is also a key manufacturer of electric vehicles in China.
- Product Details
- {{item.text}}
Quick Details
-
seats::
-
Bus cold foam sponge + high rebound PU leather fabric
-
refit::
-
according to customer requirements
-
Controller::
-
Imbor 3528 electric control
-
tire::
-
22*9.5-10;22*11-10
-
Max. loading weight::
-
510kgs
Quick Details
-
Tire Size:
-
10 inch
-
Dimension:
-
2980*1250*1900mm
-
Product name:
-

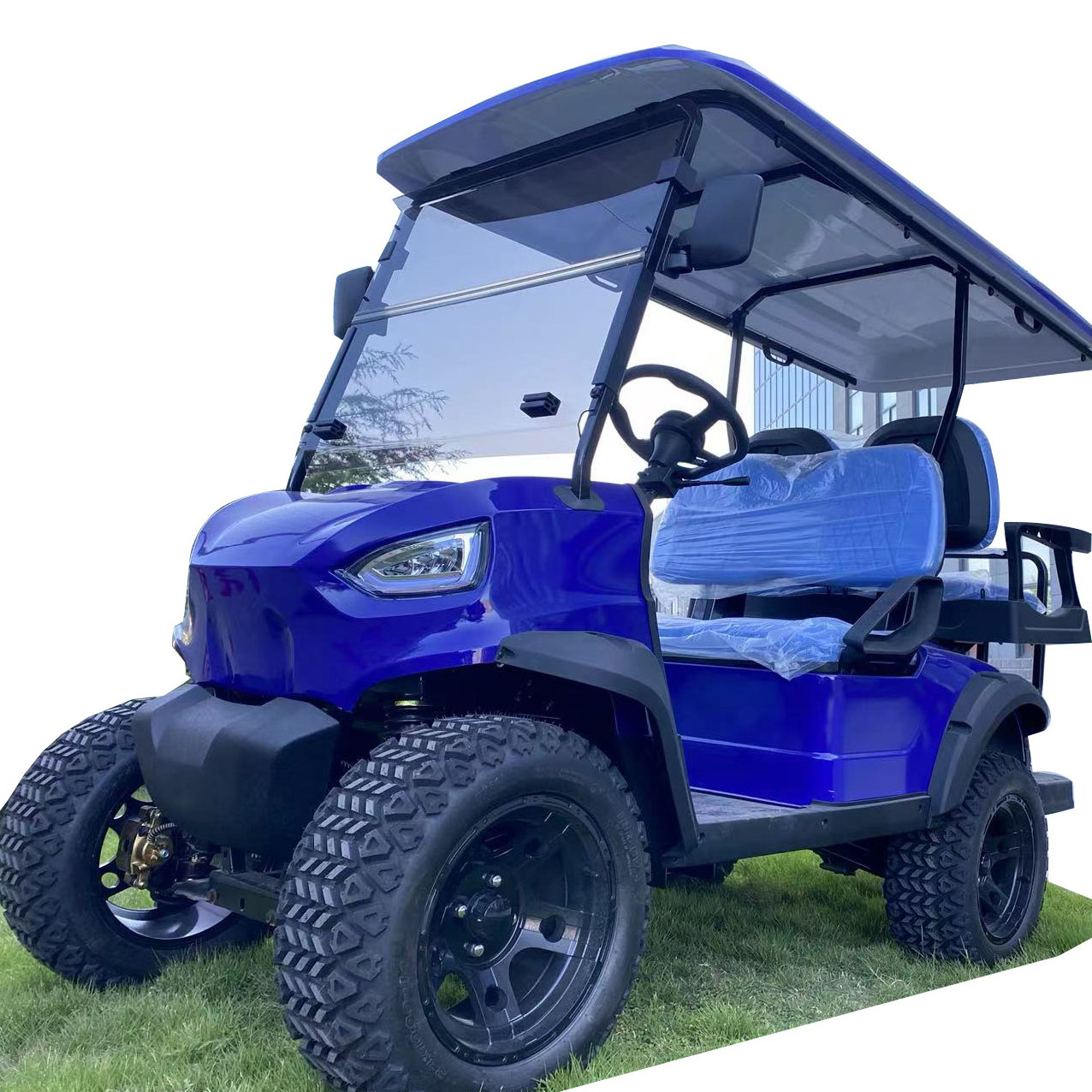

Golf Cart
-
seats::
-
Bus cold foam sponge + high rebound PU leather fabric
-
refit::
-
according to customer requirements
-
Controller::
-
Imbor 3528 electric control
-
tire::
-
22*9.5-10;22*11-10
-
Max. loading weight::
-
510kgs
Products Description
Digital Meter
LED Headlight
LED Taillight
Brake sensitive High safety facyor
12‘ Aluminum Rim
Split windshield
Product Paramenters
|
Seats
|
2 seats
|
4 seats
|
6 seats
|
8 seats
|
|
Size
|
2350*1250*1900
|
2980*1250*1900
|
3680*1250*1900
|
4350*1250*1900
|
|
Weight
|
450KG
|
510KG
|
590KG
|
670KG
|
|
2+2 seater multi-purpose electric golf cart parameters
|
|
|
|
|||
|
Key Components |
Controller
|
Inbor, SME or China Local Brand
|
|
|||
|
|
Motor
|
4KW/5KW AC motor
|
|
|||
|
|
Battery
|
48V/60V/72V120AH Battery
|
|
|||
|
Performance and Dimensions |
Passenger Capacity
|
4 (2+2)
|
|
|||
|
|
Range (Loaded) *
|
90-100kms
|
|
|||
|
|
Max.speed
|
32-40km/h
|
|
|||
|
|
Min. Turning Radius
|
3.7m
|
|
|||
|
|
Max. Gradeability
|
20%-30%
|
|
|||
|
|
Max. Loading Weight
|
320kgs
|
|
|||
|
|
Net Weight
|
510kgs
|
|
|||
|
|
Overall Dimensions
|
2980*1250*1900mm
|
|
|||
|
Body and Frame
|
|
|
|
|||
|
Frame (Chassis)
|
Welded steel framework, with anti-rust treatment of acid washing, phosphating and electro-coating
|
|
|
|||
|
Body and Roof
|
PP plastic front body and rear body; PP vacuum form roof
|
|
|
|||
|
Windshield
|
Organic plastic windshield, splited tinted
|
|
|
|||
|
Roof supports
|
Carbon Steel, powder coated
|
|
|
|||
|
Backrest and Seat
|
Reborn Sponge, artificial leather + plastic armrest
|
|
|
|||
|
Floor
|
Galvanized Steel plate and anti-slip rubber floor mat
|
|
|
|||
|
Dashboard
|
Plastic in black, with 4 cup holders, 2 glove storage box, forward/reverse switch, battery capacity indicator, ignition key
|
|
|
|||
|
Side trim
|
Plastic
|
|
|
|||
|
Sider mirror
|
2pcs, foldable
|
|
|
|||
|
Electric System
|
|
|
|
|||
|
Lighting system and horn
|
All LED lights, 2 headlights, 2 front turn signals, 2 taillights( each combined 1 brake light with 1 turn signal), with 20A
voltage reducer (converting from 72V to 12V), electric horn. |
|
|
|||
|
Backup Buzzer
|
12V
|
|
|
|||
|
Digital Meter
|
LCD screen, with speedometer, odometer, battery power meter and various indicators
|
|
|
|||
|
Charger
|
Smart charger, input 110V-240V~50Hz-60Hz, output 72V, 20A
|
|
|
|||
|
Steering, Brake, Transmission and Suspension
|
|
|
|
|||
|
Steering System
|
Single-stage rack and pinion steering system, automatic rocker compensating function
|
|
|
|||
|
Brake system
|
4 Wheels hydraulic front disc rear drum brake, regen brake
|
|
|
|||
|
Accelerator
|
Stepless speed change
|
|
|
|||
|
Driving mode
|
Rear axle two stage deceleration, motor direct driving
|
|
|
|||
|
Rear axle
|
Integrated, variable speed gear
|
|
|
|||
|
Suspension system
|
Front MacPherson Independent and rear plate leaf spring + cylinder hydraulic shock absorber
|
|
|
|||
|
Wheel & Tyre
|
205-50-10, Aluminium wheel hub, vacuum tire
|
|
|
|||
Front Brush Guard and Basket
Multimedia player
USB Port
Rear Under Seat Ice Bucket
12' Wheel.
Ball bag
Optional styles,
customiz
able in
any color
Style A
Style A
Style B
Style C
