2.The surface is treated with frosting process, which is corrosion-resistant and oxidation-resistant, and not easy to rust.
- Product Details
- {{item.text}}
Quick Details
-
Place of Origin:
-
Shandong, China
-
Voltage:
-
220V/380V
-
Power:
-
750w
-
Dimension(L*W*H):
-
1130*660*1130mm
-
Weight:
-
140 KG
-
Output product name:
-
Vegetables Slices
-
Product name:
-
Root Vegetable Cutting Machine
-
Application:
-
Root Vegetables
-
Function:
-
Cutting, Slicing, Stripping, Dicer
-
Usage:
-
Root Vegetable Cutting Machine
-
Cutting shape:
-
Slicing/Strips
-
Feature:
-
Cutting Slicing
-
Advantage:
-
Easy Operation High Efficiency
-
Material:
-
SUS304 Stainless Steel
-
Type:
-
Multifunctional Commercial Vegetable Cutting Machine
-
Processing Types:
-
Industrial Vegetable Slicer Cutting Machine
Quick Details
-
Raw material:
-
Fruit, Vegetables
-
Marketing Type:
-
New Product 2023
-
Brand Name:
-
ZHIYIN
-
Place of Origin:
-
Shandong, China
-
Voltage:
-
220V/380V
-
Power:
-
750w
-
Dimension(L*W*H):
-
1130*660*1130mm
-
Weight:
-
140 KG
-
Output product name:
-
Vegetables Slices
-
Product name:
-
Root Vegetable Cutting Machine
-
Application:
-
Root Vegetables
-
Function:
-
Cutting, Slicing, Stripping, Dicer
-
Usage:
-
Root Vegetable Cutting Machine
-
Cutting shape:
-
Slicing/Strips
-
Feature:
-
Cutting Slicing
-
Advantage:
-
Easy Operation High Efficiency
-
Material:
-
SUS304 Stainless Steel
-
Type:
-
Multifunctional Commercial Vegetable Cutting Machine
-
Processing Types:
-
Industrial Vegetable Slicer Cutting Machine
Product Description

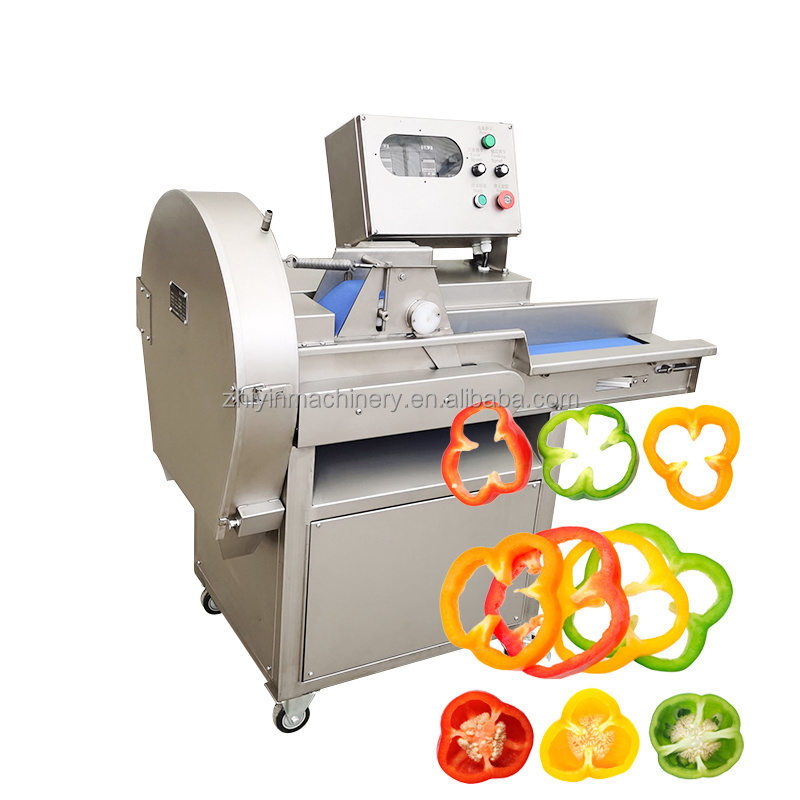

Surface Sand Blasting SUS304 Stem Vegetable Cutting Equipment Root Vegetables Onion Eggplant Dicing Shredding Machine Slicer
Surface Sand Blasting SUS304 Stem Vegetable Cutting Equipment Root Vegetables Onion Eggplant Dicing Shredding Machine Slicer
Product material:
304 stainless steel
Product Introduction:
This machine is mainly suitable for cutting leafy vegetables (such as leek, celery, spinach, green onion, etc.), and can also slice and shred root vegetables (such as cucumber, carrot ト, etc.) and shred sauerkraut, etc., cutting specifications and cutting surface tissue fresh. The whole machine is made of 304 stainless steel, surface frosted processing, corrosion resistance, oxidation resistance is not easy to produce.
Rated voltage:
380V
Production efficiency:
500-3000kg/ h
Rated power:
2.25kW
Cutting size:
1-40mm
Product size:
1200x660×1000mm
Weight:
158kg
Specification
Surface Sand Blasting SUS304 Stem Vegetable Cutting Equipment Root Vegetables Onion Eggplant Dicing Shredding Machine Slicer
|
Product name:
|
Single head vegetable cutting machine
|
|
|
|
Model:
|
ZYS225
|
ZYS300
|
|
|
Rated voltage:
|
380V
|
380V
|
|
|
Production efficiency:
|
500-3000kg/hour
|
500-4000kg/hour
|
|
|
Rated power:
|
2.25KW
|
3KW
|
|
|
Slice specifications:
|
1-40mm
|
1-40mm
|
|
|
Dicing specifications:
|
5mm/7mm/10mm/12mm
|
5mm/7mm/10mm/12mm
|
|
|
Shred specifications:
|
1-40mm
|
1-40mm
|
|
|
Product size:
|
1200x660×1000mm
|
1260x680×1230mm
|
|
|
Overall machine weight:
|
158kg
|
188kg
|
|
Feature of vegetable dicing machine :
1, The machine can cut different vegetable and fruit into cube ,such as potato ,sweet potato ,carrot ,oinon and so on.
2, it can be material into different size cube by changing the different blade unit.
3-20mm,5*5*5mm,10*10*10mm,15*15*15mm,20*20*20mm
3, Machine is equipped with four wheels ,easy to move.
4, This machine can also cut material ino stick or slice by unloading part of blades.
4, This machine can also cut material ino stick or slice by unloading part of blades.
Surface Sand Blasting SUS304 Stem Vegetable Cutting Equipment Root Vegetables Onion Eggplant Dicing Shredding Machine Slicer
Working principle :
1, The machine can cut different vegetable and fruit into cube ,such as potato ,sweet potato ,carrot ,oinon and so on.
2, it can be material into different size cube by changing the different blade unit.
3-20mm,5*5*5mm,10*10*10mm,15*15*15mm,20*20*20mm
3, Machine is equipped with four wheels ,easy to move.
4, This machine can also cut material ino stick or slice by unloading part of blades
4, This machine can also cut material ino stick or slice by unloading part of blades
Application :
The vegetable cutting machine could be used for vegetable and fruit cubes cutting, from 4 mm to 20 mm.
Commonly used for vegetables, potatoes, carrots, onions, sweet potatoes, tomatoes, peppers, etc., fruits are melon, cantaloupe,pineapple, mango, kiwi, etc.
Commonly used for vegetables, potatoes, carrots, onions, sweet potatoes, tomatoes, peppers, etc., fruits are melon, cantaloupe,pineapple, mango, kiwi, etc.
Details Images
1.The whole machine is made of 304 stainless steel.
1. Variable frequency debugging of the conveyor belt to adjust the feeding speed.
2. Blade frequency conversion, adjust the speed of the cutting blade, and freely control the thickness of the finished product.
1. The material conveyor belt does not stick to the material.
2. The conveyor belt speed can be adjusted freely
1. It is not easy to slide when cutting materials.
2. Fix the material and cut it to the required size.
2. Cutting specifications are standard, and the finished vegetables have fresh cut texture.
Production Information
Diced Root Machine
Diced size display
|
Configuration instructions of vegetable cube cutting machine
|
|
|
|
1
|
Multifunction use, cut all vegetables
|
|
|
2
|
With four blades, cut slice, strip, shred, chip, cube, rhombic, crinckle shape
|
|
|
3
|
With transporting belt, convey vegetables go ahead
|
|
|
4
|
With brush to clean the transporting belt
|
|
|
5
|
With wheels to move around freely
|
|
|
6
|
Transmission motor for changing working speed and capacity
|
|
|
7
|
Copper motor, famous brand components, thickest parts 2mm
|
|
|
8
|
Work independantly or with production line
|
|
|
9
|
Stepless speed regulation, shredding size is adjusted freely
|
|
|
10
|
Cutting size from 1mm to 25mm
|
|
FAQ:
Q1. What is your terms of payment?
T/T 50% as deposit, and 50% before delivery. We'll show you the photos of the products and packages before you pay the balance.
Q2. How about your delivery time?
Generally, it will take 15 days after receiving your advance payment. The specific delivery time depends on the items and the quantity of your order.
Q3. Can I have sample to check the quality before order?
Sure,we provide free sample and customer only pay for the shipping cost is ok.
Q4. What is your quality control process?
We have a strict quality control department ,raw material control,assembling control,machine test before packing to make sure all the machines are good.
Service
We own Professional Engineers, Aftersales Staff and a young strong Sales Teams.Based on "People Oriented, Leading Technology,
Honest Management", we will offer you reliable products and best service.
1. Before sending the machine, we will test and adjust, so you can use directly when you get it.
2. Operating video & instruction will be sent to clients, to help them better use the machines.
3. Any problems occur while using, professional advice will be given by us.
4. All kinds of frequently used parts are supplied from us all the year round.
T/T 50% as deposit, and 50% before delivery. We'll show you the photos of the products and packages before you pay the balance.
Q2. How about your delivery time?
Generally, it will take 15 days after receiving your advance payment. The specific delivery time depends on the items and the quantity of your order.
Q3. Can I have sample to check the quality before order?
Sure,we provide free sample and customer only pay for the shipping cost is ok.
Q4. What is your quality control process?
We have a strict quality control department ,raw material control,assembling control,machine test before packing to make sure all the machines are good.
Service
We own Professional Engineers, Aftersales Staff and a young strong Sales Teams.Based on "People Oriented, Leading Technology,
Honest Management", we will offer you reliable products and best service.
1. Before sending the machine, we will test and adjust, so you can use directly when you get it.
2. Operating video & instruction will be sent to clients, to help them better use the machines.
3. Any problems occur while using, professional advice will be given by us.
4. All kinds of frequently used parts are supplied from us all the year round.
