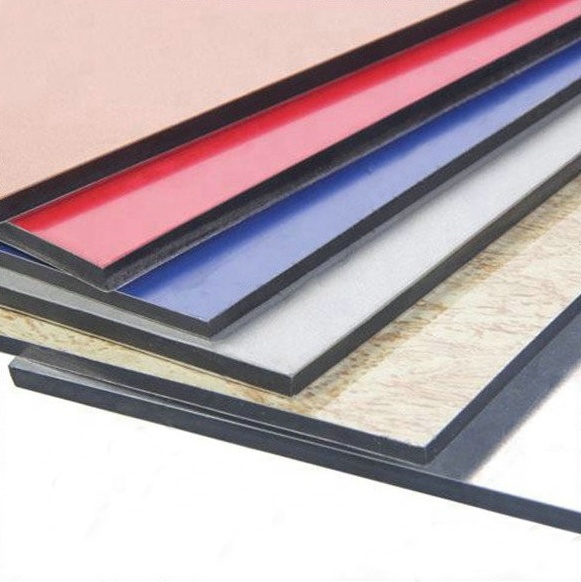

Aluminum Trailer Side Composite Panel , Aluminum Cladding

Aluminum Trailer Side Composite Panel , Aluminum Cladding

FOB Reference Price: Get Latest Price

≥600 Square meters

US $3.5

Free Inquiry

Customized Request

Product Details

{{item.text}}

Quick Details

Application:: Hotel, Villa, Apartment, Office Building, Hospital, School, Mall, Sports Venues, Leisure Facilities, Supermarket, Warehouse, Workshop, Park, Farmhouse, Courtyard

Surface Treatment:: Brushed, Mirror, PE Coated, PVDF Coated

Place of Origin:: Chongqing, China

Brand Name:: Lanren Aluminium

Model Number:: Alupanel-068

Panel Thickness(mm)::: 2mm-8mm

Aluminium Skin Thickness(mm)::: 0.08mm-0.5mm

Width(mm)::: 1220mm-2000mm

Length(mm)::: 2440mm-8000mm

Colors::: Sliver mirror, Red glossy, White glossy, Blue glossy, etc

Quick Details

Warranty:: More than 5 years

Size:: 1220*2440MM

Project Solution Capability:: graphic design

Application:: Hotel, Villa, Apartment, Office Building, Hospital, School, Mall, Sports Venues, Leisure Facilities, Supermarket, Warehouse, Workshop, Park, Farmhouse, Courtyard

Surface Treatment:: Brushed, Mirror, PE Coated, PVDF Coated

Place of Origin:: Chongqing, China

Brand Name:: Lanren Aluminium

Model Number:: Alupanel-068

Panel Thickness(mm)::: 2mm-8mm

Aluminium Skin Thickness(mm)::: 0.08mm-0.5mm

Width(mm)::: 1220mm-2000mm

Length(mm)::: 2440mm-8000mm

Colors::: Sliver mirror, Red glossy, White glossy, Blue glossy, etc

Product Overviews

Introduction:

Aluminium Composite Panel (ACP) is made up of three layers, with two layers of aluminum skin on the top and bottom, and one layer of anti-toxic polyethylene material in the middle. Also, both of skin surfaces need to be coil-coated with special paint material like PVDF or PE resin under a specific temperature condition.

Strictly according to the international quality system ISO9001 and ISO14001 produce superior quality aluminum composite panels. Our aluminum composite panels passed GB/T1778-1999 ,SGS tests and gained CE certificate. Because of its excellent weather proof and other features, the panel becomes a very popular Cladding materials in the world.

Specification:

Panel Thickness(mm)	1.5mm-8mm
Aluminium Skin Thickness(mm)	0.05mm-0.5mm
Width(mm)	1000mm-2000mm
Length(mm)	1000mm-10000mm
Aluminium Alloy	AA1100, AA3003
Surface Coating	PE/PVDF/NANO/Mirror/Brush/Wooden Marble
Packing	Wooden Package or bulk loading
Delivery	15 to 20 days after receiving deposit and color confirmed
Payment Term	L/C T/T (30%deposite+70%)

Feature :

-Light weight, high strength, extreme rigidity, superior impact resistance,

-excellent surface flatness and smoothness ,

-heat insulation, sound insulation, fire-resistance,

-acid-resistance, alkali-resistance, good weatherproofing and non-resonance

-various uniform colors ,can be easily processed and fabricated, quickly installed,

-elegant and magnificent, good flexibility fits various designs,

-easily maintenance, simply cleaning

Applications:

1. Constructional exterior curtain walls;

2.Decorative renovation for storey-added old buildings;

3. Indoors decoration for interior walls, ceilings, bathrooms, kitchens and balconies;

4.Advertisement board, display platforms and signboards;

5. Wallboard and ceilings for tunnels;

6. Raw materials in industrial purpose;

7. Materials used for vehicle and boat.

Colors:

Standard color of RAL and any other colors can be customized at clients' request .

Certifications

Our ISO 9001:2008 certified company houses 67 QC staff with 15 years experience that are allocated to at least two QC staff per production line. To maintain a strict QC system, we not only utilize precision testing instruments but we also continuously train our QA personnel regarding the latest testing principles.
