Quick Details
-
Max. Wheel Weight:
-
150KG
-
Place of Origin:
-
Hunan, China
-
Brand Name:
-
Okay Energy
-
Model Number:
-
S5
-
Warranty:
-
1 Years
-
Product Name:
-
3D Four Wheel Alignment
-
Wheel aligment Certification:
-
CE, CCC, ISO
-
Outer clamping rim:
-
11"-24"
-
Inner supporting rim:
-
13"-26"
-
Screen Size:
-
24 inches
-
Weight and volume:
-
180kg, 1.1CBM
-
Wheel aligment Packing:
-
1# 350*360*2920mm 2# 760*860*1050mm
Quick Details
-
Power:
-
2.2KW
-
Power Supply:
-
110V/220V
-
Balancing Speed:
-
220rpm
-
Max. Wheel Weight:
-
150KG
-
Place of Origin:
-
Hunan, China
-
Brand Name:
-
Okay Energy
-
Model Number:
-
S5
-
Warranty:
-
1 Years
-
Product Name:
-
3D Four Wheel Alignment
-
Wheel aligment Certification:
-
CE, CCC, ISO
-
Outer clamping rim:
-
11"-24"
-
Inner supporting rim:
-
13"-26"
-
Screen Size:
-
24 inches
-
Weight and volume:
-
180kg, 1.1CBM
-
Wheel aligment Packing:
-
1# 350*360*2920mm 2# 760*860*1050mm
Products Description

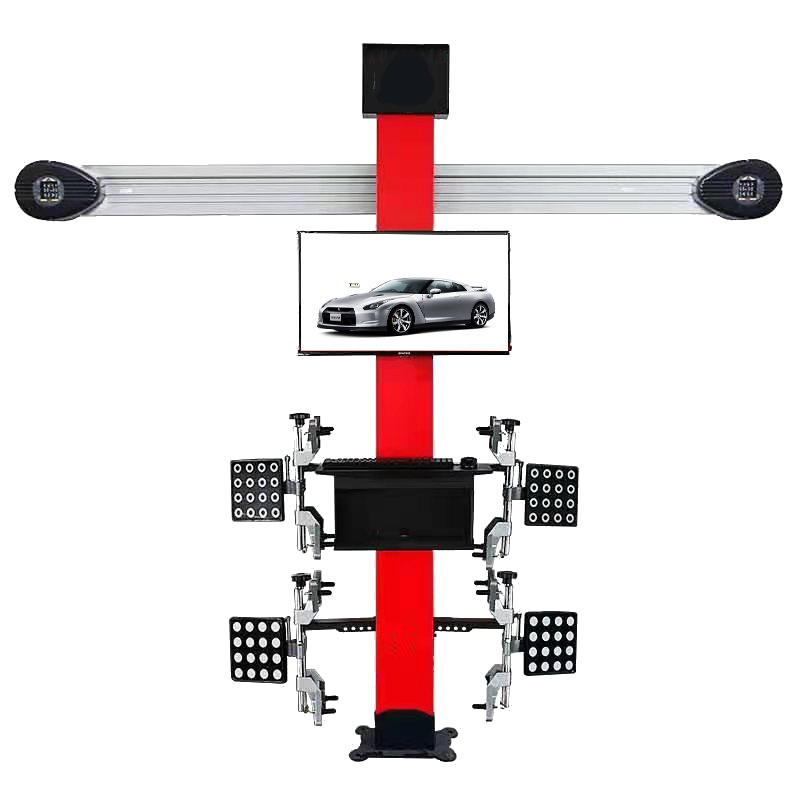

3D Camera Wheel Alignment 4 Post Lift Popular Aligner Machine used in 4S Shop
The wheel aligner is a device used in the automotive industry to ensure that the wheels of a vehicle are properly aligned and positioned according to manufacturer specifications. It helps to optimize the handling, stability, and tire wear of the vehicle by adjusting the angles of the wheels.
Technical Data
|
Measurement Items
|
Measurement Accuracy
|
Measurement Range
|
|
Total toe-in angle
|
±0.01º
|
±40º
|
|
Camber angle
|
±0.01º
|
±45º
|
|
Castor angle
|
±0.02º
|
±45º
|
|
Camber
|
±0.02º
|
±45º
|
|
Thrust angle
|
±0.01º
|
±40º
|
|
Retraction angle
|
±0.01º
|
±40º
|
|
Maximum steering angle
|
±0.02º
|
±50º
|
|
Track width
|
±2mm
|
1219-2438mm
|
|
wheel base
|
±2mm
|
2006-4572mm
|
