Quick Details
-
Brake(F/R):
-
Drumb brake front and rear
-
Engine:
-
4 Stroke, air cooled,single cyclinder
-
clutch:
-
semi auto
-
Tires size:
-
Front/Rear: 2.50-10 2.50-10
-
max power:
-
2.0kw/7500r/min +/-375r/min
-
Min Fuel Consumption::
-
<=367g/KW.H
-
lgnition mode:
-
CDI
-
Max power:
-
2.0kw/7500r/min +/-375r/min
-
Frame:
-
High strengthened steel
-
Maximum load::
-
85kgs
-
Compression Ratio:
-
9.0:1
Quick Details
-
Place of Origin:
-
Henan, China
-
Model Number:
-
FLDB503
-
Brand Name:
-
FRANKY
-
Brake(F/R):
-
Drumb brake front and rear
-
Engine:
-
4 Stroke, air cooled,single cyclinder
-
clutch:
-
semi auto
-
Tires size:
-
Front/Rear: 2.50-10 2.50-10
-
max power:
-
2.0kw/7500r/min +/-375r/min
-
Min Fuel Consumption::
-
<=367g/KW.H
-
lgnition mode:
-
CDI
-
Max power:
-
2.0kw/7500r/min +/-375r/min
-
Frame:
-
High strengthened steel
-
Maximum load::
-
85kgs
-
Compression Ratio:
-
9.0:1

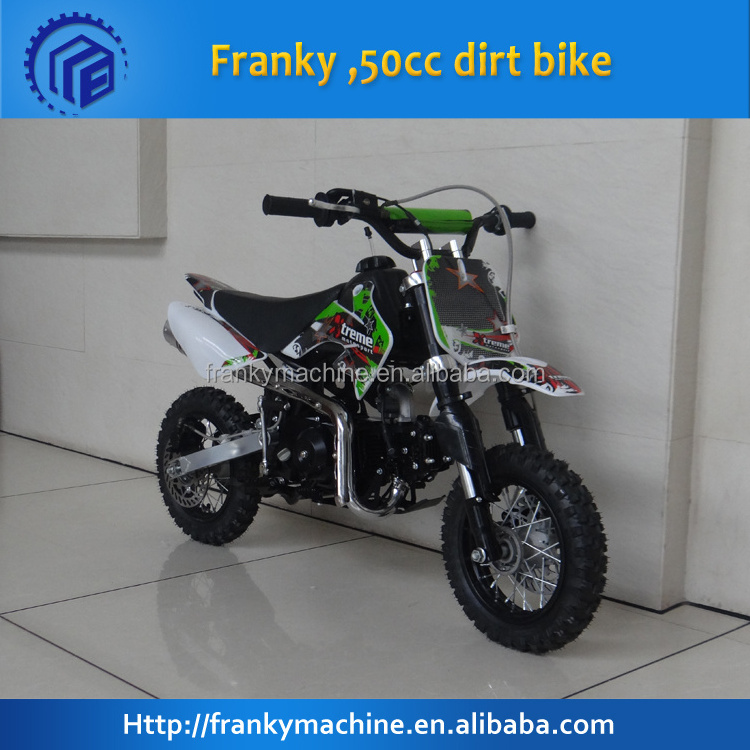

1.1-cylinder,4 stroke, auto 50cc engine bring easy control for a young kids and young begginers.
2.CRF plastics, a popular model arround the world to the kids.
3.High strengthened frame and trangle swing arm supply good performance of the bike to the riders.
New design 90cc mini dirt bike
New design 90cc mini dirt bike
|
Engine type: |
50CC, single cyclinder, 4-stroke, air cooled,
|
|
Bore X Stroke: |
39X41.4mm |
|
Compression Ratio: |
9.0:1 |
|
Max power: |
2.0kw/7500r/min +/-375r/min |
|
Min Fuel Consumption: |
<=367g/KW.H |
|
Max torquer: |
2.5N.m/ 5000r/min +/-250r/min |
|
Clutch: |
Semi auto |
|
lgnition |
CDI |
|
Frame: |
High strengthened steel |
|
Swing arm: |
Steel, A shape |
|
Suspension system: |
Front fork:size:27-480mm, normal fork
|
|
Brake system; |
Drumb brake front and rear |
|
Maximum load: |
85kgs |
|
Tank Capacity: |
2.4L |
|
G.W/N.W: |
70kgs/65kgs |
|
Carburetor: |
JINKE PZ19 |
|
Dimensions(L*W*H): |
1400mmx*690mm*790mm |
|
Carton size: |
1195mm*355mm*640mm |
|
Container: |
81units 20\"FCL 180units 40\" FCL
|
|
Seat Height: |
39in/560mm |
|
Wheel base: |
57in/950mm |
|
Ground Clearance: |
6in/160mm |
|
Engine and Rear sprocket: |
14/37T, 420# Chains. |
|
Rim Size: |
Front 1.6-10/ Rear 1.6-10 |
|
Tire size: |
Front/Rear: 2.50-10 2.50-10 |
New design 90cc mini dirt bike
New design 90cc mini dirt bike
1. Q: Can I get some samples?
A: We are honored to offer you samples for quality check.
2. Q: Do you have the products in stock?
A: No. All bikes are to be produced according to your order including samples.
3. Q: What’s the delivery time?
A: It usually takes about 20 working days to produce an order from MOQ to 40HQ container. But the exact delivery time might be different for different orders or at different time.
4. Q: Can I mix different models in one container?
A: Yes, different models can be mixed in one container, but the quantity of each model should not be less than MOQ.
5. Q: How does your factory do regarding quality control?
A: Quality is priority. We always attach great importance to quality control from the very beginning to the end of the production. Every product will be fully assembled and carefully tested before it's packed for shipment.
6. Q:What's your warranty terms?
A: We offer different warranty time for different products. Please contact with us for detailed warranty terms.
7. Q: What’s your payment?
A: Sample order payment 100% advance. Others 30% T/T advance, 70% payment before shipment.
