1. All documents needed for customer clearance.
2. Engeneers available to service machinery overseas.
3. Training the operation and maintenance of the machines.
4. Online service all 24/7.
- Product Details
- {{item.text}}
Quick Details
-
Max. Effective Printing Width:
-
960mm
-
Range of Repeat Printing Length:
-
191~1000mm
-
Max. Diameter of Roll Material:
-
450mm
-
Printing Speed:
-
5~50m/min
-
Total Power:
-
11Kw
-
Certification:
-
CE
Quick Details
-
Place of Origin:
-
Zhejiang, China
-
After-sales Service Provided:
-
Online support, Free spare parts, Video technical support
-
Max. Web Width:
-
1000mm
-
Max. Effective Printing Width:
-
960mm
-
Range of Repeat Printing Length:
-
191~1000mm
-
Max. Diameter of Roll Material:
-
450mm
-
Printing Speed:
-
5~50m/min
-
Total Power:
-
11Kw
-
Certification:
-
CE

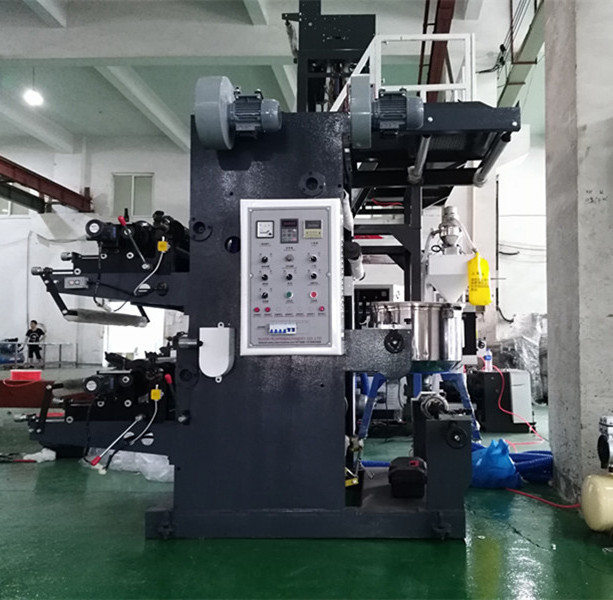

Product Description
Application:
Introduce sensitization resin as flexible printing plate, suitable for printing
such packing materials as polyethylene, polypropylene bag, cellophane and roll paper,
etc. It is a kind of ideal printing equipment for producing paper packing bag for food,
supermarket handbag, vest bag and clothes bag, etc.
Type
|
YT-11000
|
Max. Web Width
|
1000mm
|
Max. Effective Printing Width
|
960mm
|
Range of Repeat Printing Length
|
191~1000mm
|
Max. Diameter of Roll Material
|
ф450mm
|
Printing Speed
|
5~50m/min
|
Plate Thickness(Both side adhesive tape included)
|
2.38mm
|
Total Power
|
11Kw
|
Overall Dimension
|
2000×1960×1945mm
|
Performance and Features:
1. Easy operation, flexible starting, accurate color register.
2. The meter counter can set printing quantity according to the requirements. Stop the machine automatically at the quantity or when the material is cut off.
3. Pneumatic printing cylinder lift and lower, it will stir the printing ink automatically after lifting.
4. The printing ink is spread by the anilox cylinder with even ink color.
5. Reliable drying system coordinated with high-speed rotation, it will automatically break circuit when the machine stops.
6.360°continuous and adjustable longitudinal register device.
7. The frequency control of motor speed adapts to different printing speeds.
8. There are Jogging/Stopping buttons on the plate roller base and material rolling rack so as to make it easy operate the machine when the plate is installed.
