Quick Details
-
Voltage:
-
380V
-
Power:
-
2.4KW
-
Dimension(L*W*H):
-
1300*1080*1800mm
-
Applicable Industries:
-
PCB Coating Line
-
Weight (KG):
-
600
-
Moving Parts:
-
X,Y,Z axis sever motor driving
-
PCB Conveyor height:
-
900±20mm
-
Conveyor speed:
-
0~2400mm/min
-
Conveyor direction:
-
L-R or R-L (optional)
-
PCB Width:
-
50-450mm
-
Adjustment method:
-
By manual
-
Glue valve quantity:
-
2
-
Pin type glue valve coating:
-
Min coating width:2mm
-
Coating precision:
-
Min coating width:5-15mm
Quick Details
-
Machine Type:
-
Automatic, Painting Equipment, Drying Oven, Curing oven, Coating Equipment, PCB Coating Machine
-
Place of Origin:
-
Guangdong, China
-
Brand Name:
-
Max
-
Voltage:
-
380V
-
Power:
-
2.4KW
-
Dimension(L*W*H):
-
1300*1080*1800mm
-
Applicable Industries:
-
PCB Coating Line
-
Weight (KG):
-
600
-
Moving Parts:
-
X,Y,Z axis sever motor driving
-
PCB Conveyor height:
-
900±20mm
-
Conveyor speed:
-
0~2400mm/min
-
Conveyor direction:
-
L-R or R-L (optional)
-
PCB Width:
-
50-450mm
-
Adjustment method:
-
By manual
-
Glue valve quantity:
-
2
-
Pin type glue valve coating:
-
Min coating width:2mm
-
Coating precision:
-
Min coating width:5-15mm

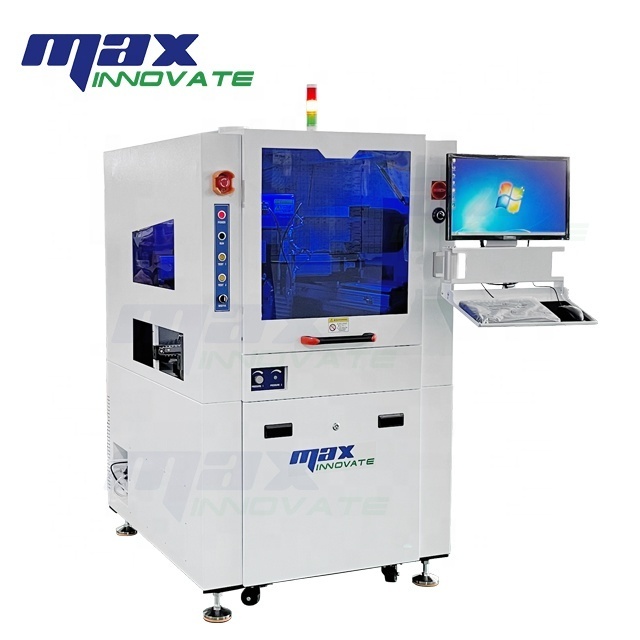

Product Overview
Description:
The PCB Coating Machine is u
sed for
spraying conformal coating on PCB for Coating Line
.
(
Anticorrosion，Waterproof, Dustproof for PCB
)
1.Structure applies to the thickness steel ,much more stable, and no shaking .
2.Special marble platform, ensure the horizontal of the platform, hard enough and never be out of shape.
3. High speed,stable and reliable driving and controlling system. X.Y.Z.U axis moving all apply to the linearmodule which made by the Panasonic sever motor, high precise ball screw,linear guider rails.
4.Patent full sealed module,which can Isolate the fog corrosion of screw rod and slide rail.
5. Spray glue wave applies to the Germany newest technique,fog flower is like a fanned shape,width and pressure are adjustable, it can control the sides cleaning well.
6.With the waste gas collection,educator,which reduce the irritant gas discharge efficiently.
7.System can be renew to the selective coating machine.
8. Applies to the PLC control, Window XP system, easy to operate.
9.With the waste gas collection,educator,which reduce the irritant gas discharge efficiently.
10. With SMEMA.
|
Model
|
|
CM-450B
|
|
|
|||
|
Dimensions (L*W*H)
|
|
1300*1080*1800(mm)
|
|
|
|||
|
Weight
|
|
600KGS
|
|
|
|||
|
Moving Parts
|
|
X,Y,Z axis sever motor driving
|
|
|
|||
|
Conveyor speed
|
|
0～2400mm/min
|
|
|
|||
|
PCB Width
|
|
50-450mm
|
|
|
|||
|
Adjustment method
|
|
By manual
|
|
|
|||
|
Glue valve quantity
|
|
2
|
|
|
|||
|
Glue valve type
|
|
Needle type dispensing valve, fine atomizing control valve, large area spray valve
|
|
|
|||
|
Exhaust power
|
|
AC220V 370W
|
|
|
|||
|
Power
|
|
3P,380V,50/60Hz
|
|
|
|||
|
Total Power
|
|
2.4KW
|
|
|
|||
Products Description
Related Products
All kinds SMT&DIP Machine,welcome inquiry and discuss with us!
Packing&Shipping
Packing Details :Plywood case, for export!
Port:Shenzhen
Delivery Details :7-10days
Port:Shenzhen
Delivery Details :7-10days
Max
Machine from the production to packaging to transportation, have strict quality control, use high-quality materials, make the best products, so that every customer satisfaction.
Accept various modes of transportation, fast delivery time!
