Quick Details
-
Warranty:
-
12 Months
-
Model Number:
-
Smart seatbelt reminder system
-
Car Make:
-
Suitable for all cars
-
Working principle::
-
Contact points sending signal
-
Tail/Pin/Circuit Layout::
-
Based on customers detailed requests
-
Material::
-
PET film and adhesive
-
Artwork/Drawings Format::
-
CorelDraw, Adobe Illustrator AI, AutoCAD
-
Back Adhesive::
-
3M467,3M468,3M9080 etc.
-
Thickness::
-
0.5-1.0 mm
-
Life Expectancy::
-
More than 5 million times
-
Resistance::
-
<1 Ω/cm width 1.27mm
-
Connector::
-
2.54mm Female Connector or 1mm ZIF Connector
-
Character::
-
Anti-scratch/Rub-resistance
Quick Details
-
OE NO.:
-
Suitable for all cars, A0000000
-
Place of Origin:
-
Guangdong, China
-
Brand Name:
-
WESTBAY
-
Warranty:
-
12 Months
-
Model Number:
-
Smart seatbelt reminder system
-
Car Make:
-
Suitable for all cars
-
Working principle::
-
Contact points sending signal
-
Tail/Pin/Circuit Layout::
-
Based on customers detailed requests
-
Material::
-
PET film and adhesive
-
Artwork/Drawings Format::
-
CorelDraw, Adobe Illustrator AI, AutoCAD
-
Back Adhesive::
-
3M467,3M468,3M9080 etc.
-
Thickness::
-
0.5-1.0 mm
-
Life Expectancy::
-
More than 5 million times
-
Resistance::
-
<1 Ω/cm width 1.27mm
-
Connector::
-
2.54mm Female Connector or 1mm ZIF Connector
-
Character::
-
Anti-scratch/Rub-resistance
Products Description
Product Description

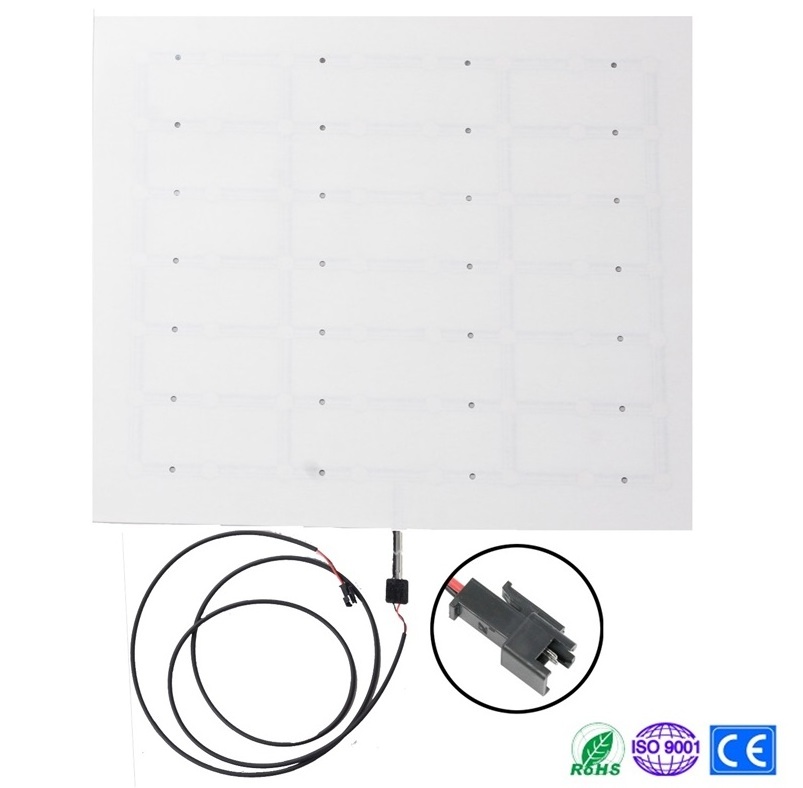

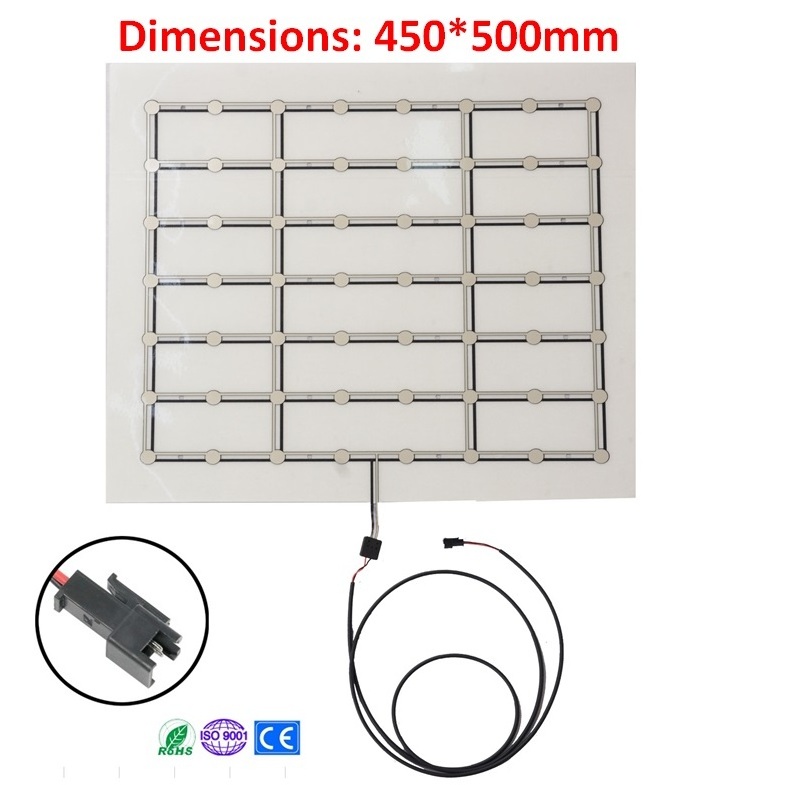

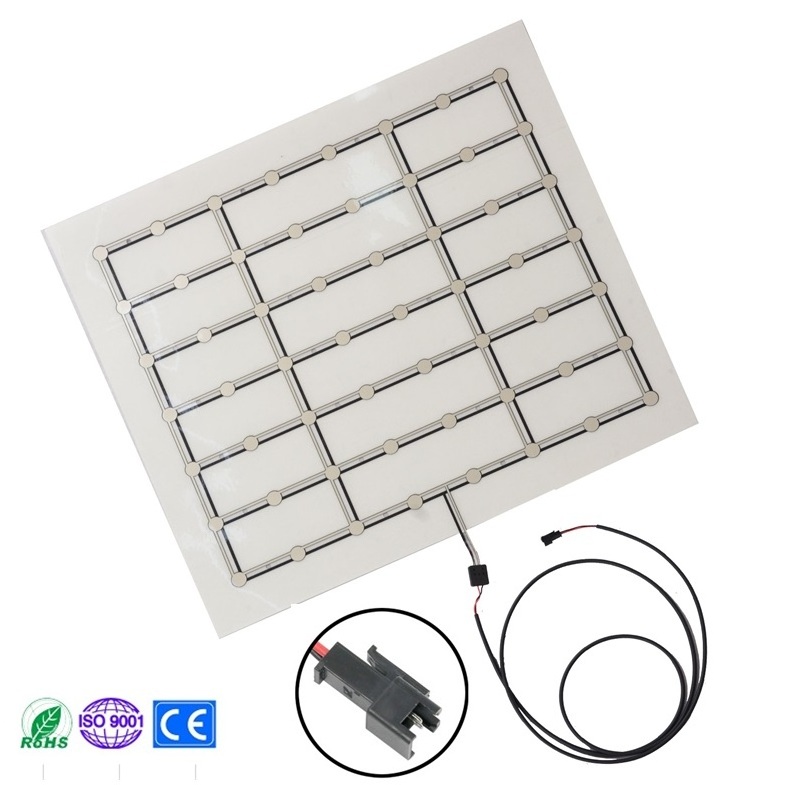

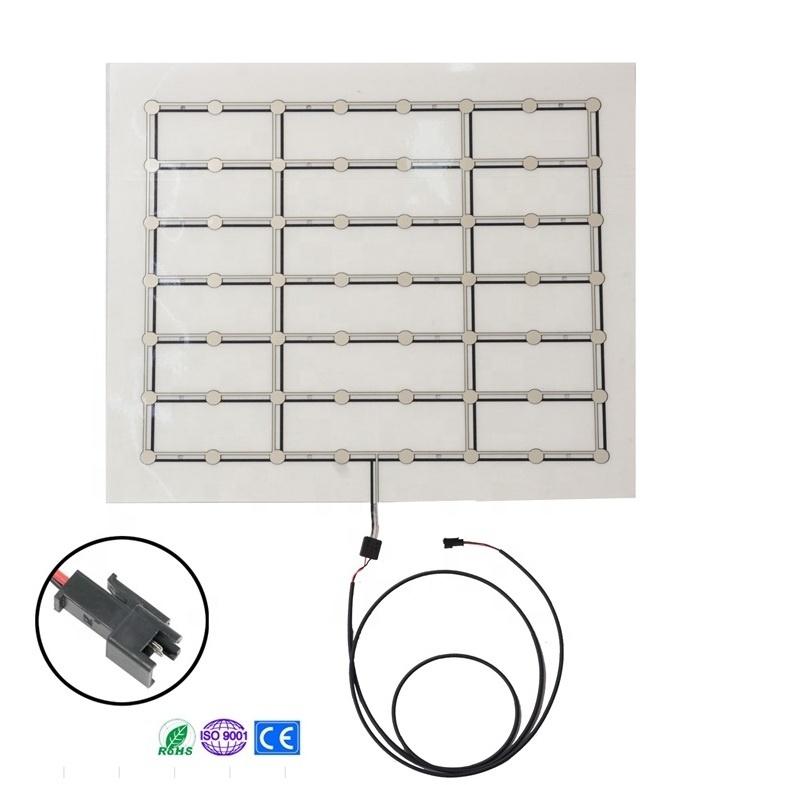

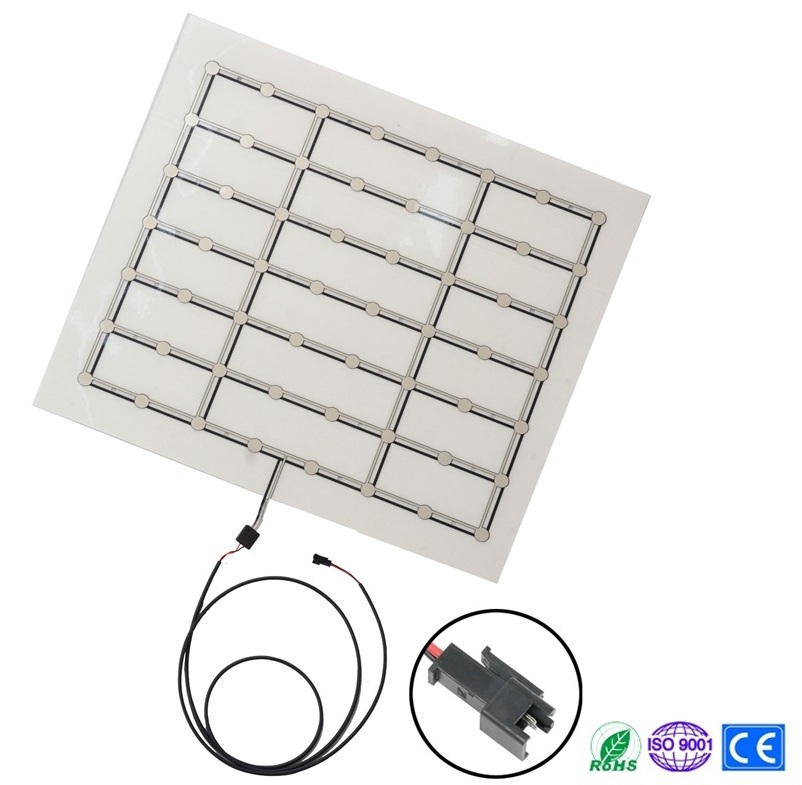

The seat pressure sensors is a film type contact sensor, the seat sensor's contact points are evenly distributed on the seat's stressed surface, seat sensors generate a trigger signal when the seat receives a pressure from the outside.
The seat pressure sensors applies to the seat occupancy perception system, such as car seat belt alarm sensor system, Taxi automatic meter, car airbag sensing system and driver's departure sensing. For example
with this car seat sensor, It can detect whether the seat is occupant or not
. People design car seat sensor
shape and contact points' sensitivity
according to the seat's shape, hardness, and skin tightness.
The seat pressure sensors usually contain four layers, up circuit layer, between adhesive layer, down circuit layer and back adhesive layer. Other accessories are wire cables and connectors.
|
SEAT OCCUPANCY DETECTION PRESSURE SENSOR
|
|
|
|
Electrical Properties:
|
|
|
|
Rated Voltage
|
≤50V DC
|
|
|
Rated Current
|
≤100mA
|
|
|
Operating Power
|
≤1W
|
|
|
Insulation Resistance
|
≥100MΩ (250V DC)
|
|
|
Loop Resistance
|
10Ω~2kΩ (based on the design)
|
|
|
Contact Resistance
|
0.5 ~ 5Ω
|
|
|
Wire Lead Resistance
|
<1Ω/cm
|
|
|
Base Material Voltage Withstand
|
1500V DC
|
|
|
Mechanical Properties:
|
|
|
|
Life Expectancy
|
More than 5 years (more than 1 million times)
|
|
|
Operation Force
|
50g-150KG
|
|
|
Tail Bending Performance
|
≤180°
|
|
|
Vibration
|
20G's max.
|
|
|
Thickness
|
0.7~2 mm
|
|
|
Environmental Properties:
|
|
|
|
Operation Temperature
|
-40°C to +90°C (-40°to 176°F)
|
|
|
Storage Temperature
|
-40°C to +90°C (-40°to 185°F)
|
|
|
Atmospheric Pressure
|
86 ~ 106 kPa
|
|
|
Humidity
|
+40°C, 90%~95%RH for 480 Hours
|
|
|
Working principle:
|
|
|
|
Sensors
|
Seat Occupancy Detection system
|
|
|
Two-level reminder
|
1st level: vision,2nd level: vision + sound
|
|
|
SBR Features
|
1.Membrane,2.Activated by pressure
|
|
|
Usage
|
Can adjust layout and sensibilities of sensors according to the shape
|
|
|
SBR Applications
|
taximeters, air-bag sensors and driver-presence sensing sensors
|
|
|
Layer and Material specification
|
|
|
|
Top printing circuit
|
Silver paste +carbon paste + PET 0.125mm
|
|
|
Spacer
|
adhesive 0.10mm
|
|
|
Bottom printing circuit
|
Silver paste +carbon paste + PET 0.125mm
|
|
|
Connector types:
|
BS01,BS02,BS03,BS04,BS05,BS06
|
|
|
Wiring types
|
C01,C02,C03
|
|
|
Other Features
|
|
|
|
Artwork/Drawings Format
|
CorelDraw, Adobe Illustrator AI, AutoCAD
|
|
|
Tail/Pin/Circuit Layout
|
Based on customers detailed requests
|
|
|
Antistatic Shielding
|
Can be added For Protection
|
|
|
Connector
|
Female/Male Connectors or ZIF Connector
|
|
|
Rear Adhesive:
|
3M467, 3M468, 3M9080 etc…
|
|
|
Cables
|
Extension of Circuit and Connect with your Device
|
|
|
Printing Method
|
Silk Screen Printing/Digital printing
|
|
|
Windows/Lens Coating
|
Can be added
|
|
|
Certificate
|
ISO9001 RoHS CE SGS
|
|
MS Application
Working principle:
When someone is sitting on a car seat, The car seat surface is subjected to a pressure, This pressure makes the upper and lower circuit layers of the seat sensor contact each other, Thus, the circuit loop is turned on conductive to generate a signal to other devices, Showing someone is sitting on the car seat, and, other systems in the car will use this signal to work, For example, the seatbelt warning system will detect if the person on the car seat whether put a seat belt on himself.
