Quick Details
-
Product name:
-
large space prefab houses sandwich panel low cost container house
-
Door:
-
Steel Door
-
Color:
-
Customized Color
-
Size:
-
5980mmX3000mmX2800mm
-
Wall:
-
Rcok Wool Sandwich Panel
-
Main structure:
-
Galvanized Light Steel Frames
-
Floor:
-
1.6mm Glass Magnesium Board
-
Window:
-
Plastic Steel Window
-
Keyword:
-
container house
-
Model Number:
-
SH-02
Quick Details
-
Application:
-
construation
-
Place of Origin:
-
Shanghai, China
-
Brand Name:
-
Solid home
-
Product name:
-
large space prefab houses sandwich panel low cost container house
-
Door:
-
Steel Door
-
Color:
-
Customized Color
-
Size:
-
5980mmX3000mmX2800mm
-
Wall:
-
Rcok Wool Sandwich Panel
-
Main structure:
-
Galvanized Light Steel Frames
-
Floor:
-
1.6mm Glass Magnesium Board
-
Window:
-
Plastic Steel Window
-
Keyword:
-
container house
-
Model Number:
-
SH-02
Product Parameter
|
Item
|
|
Specifications
|
|
|
Marks
|
|||
|
Top Beam
|
|
180*100*4mm Rectangle Pipe
|
|
|
Q235
|
|||
|
Bottom Beam
|
|
C16 Channel Bar
|
|
|
Q235
|
|||
|
Stand Column
|
|
150*150*3 Rectangle Pipe
|
|
|
Q235
|
|||
|
Corner Fitting
|
|
178*118*162mm
|
|
|
International Standard Container (Casted）
|
|||
|
Roof
|
|
2.0mm Corrugated Sheet
|
|
|
Weathering Resitant Steel
|
|||
|
Side Bar
|
|
1.5mm Corrugated Sheet
|
|
|
Weathering Resitant Steel
|
|||
|
End Plate
|
|
1.5mm Corrugated Sheet
|
|
|
Weathering Resitant Steel
|
|||
|
Floor
|
|
2.0Mm Glass Magnesium Board/Cement Board
|
|
|
Customazied
|
|||
|
Window
|
|
70 Aluminum Alloy Window Frame + 5+9A+5 Double Layer Hollow Tempered Glass
|
|
|
Customazied Aluminum Alloy Window 50/80 etc
|
|||
|
Door
|
|
70 Aluminum Alloy Window Frame +12mm Tenpered Glass
|
|
|
Customazied Aluminum Alloy Window 50/80 etc
|
|||
|
Inner
|
|
Polyurethane Spraying 5cm
|
|
|
Inner Continer
|
|||
|
Topper
|
|
Waterproof Polyurethane Patchwork+3cm Waterproof Roller
|
|
|
Topper Container
|
|||
|
Water Box
|
|
2000*1000*400
|
|
|
For 3 Persons Domestic Use
|
|||
|
Ceiling
|
|
5cm Heat Insulation Rock Wool+1.6mm Bamboo Fiber Assembly Panel
|
|
|
Rock Wool Density 50kg/m3
|
|||
|
Wallboard
|
|
5cm Heat Insulation Rock Wool+1.6mm Bamboo Fiber Assembly Panel
|
|
|
Rock Wool Density 50kg/m3
|
|||
|
Lighting
|
|
Recessed Neutral Downlight
|
|
|
|
|||
|
Floor
|
|
50 Mortar+20mm Tile
|
|
|
|
|||
|
Water And Electricity Wiring
|
|
GB Electric Box, Wire, Pipeline
|
|
|
|
|||
|
Air Condition
|
|
Two Sets Of Up And Down，3p+2p Air Condition
|
|
|
Can be Customized
|
|||
Detailed Information

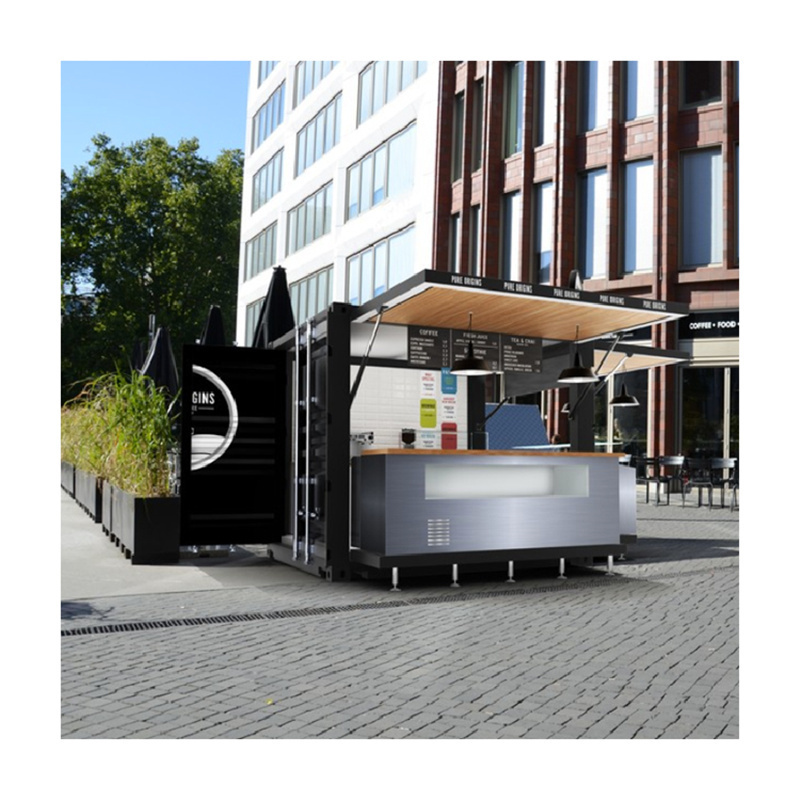

Show Cases
Advantage Of The Container House
Quick:
3 days
to be produced,30% fast than most supplier,
1 hours
quick installment.
Costs: Costs to move when the integral hoisting, lossless, relocation costs low.
Appearance: Outlook in terms of overall modelling beautiful generous, high-grade, neat, and better able to enhance the enterprise image of the user.
Usage: May at any time increase or decrease in the use of box room number, more flexible and more economical than the prefabricated houses.
Long Live: The service life of the other aspects of more than 20 years .
Safety: flexible, integrated housing component of space combined with standard module, integral structure adopts light steel structure as the skeleton, high safety Performance.
Environmental Protection: Tear open outfit is convenient,recycled raw material.
Creative: can infinite horizontal connection, the longitudinal free together, form a complex of strewn at random have send
Costs: Costs to move when the integral hoisting, lossless, relocation costs low.
Appearance: Outlook in terms of overall modelling beautiful generous, high-grade, neat, and better able to enhance the enterprise image of the user.
Usage: May at any time increase or decrease in the use of box room number, more flexible and more economical than the prefabricated houses.
Long Live: The service life of the other aspects of more than 20 years .
Safety: flexible, integrated housing component of space combined with standard module, integral structure adopts light steel structure as the skeleton, high safety Performance.
Environmental Protection: Tear open outfit is convenient,recycled raw material.
Creative: can infinite horizontal connection, the longitudinal free together, form a complex of strewn at random have send
