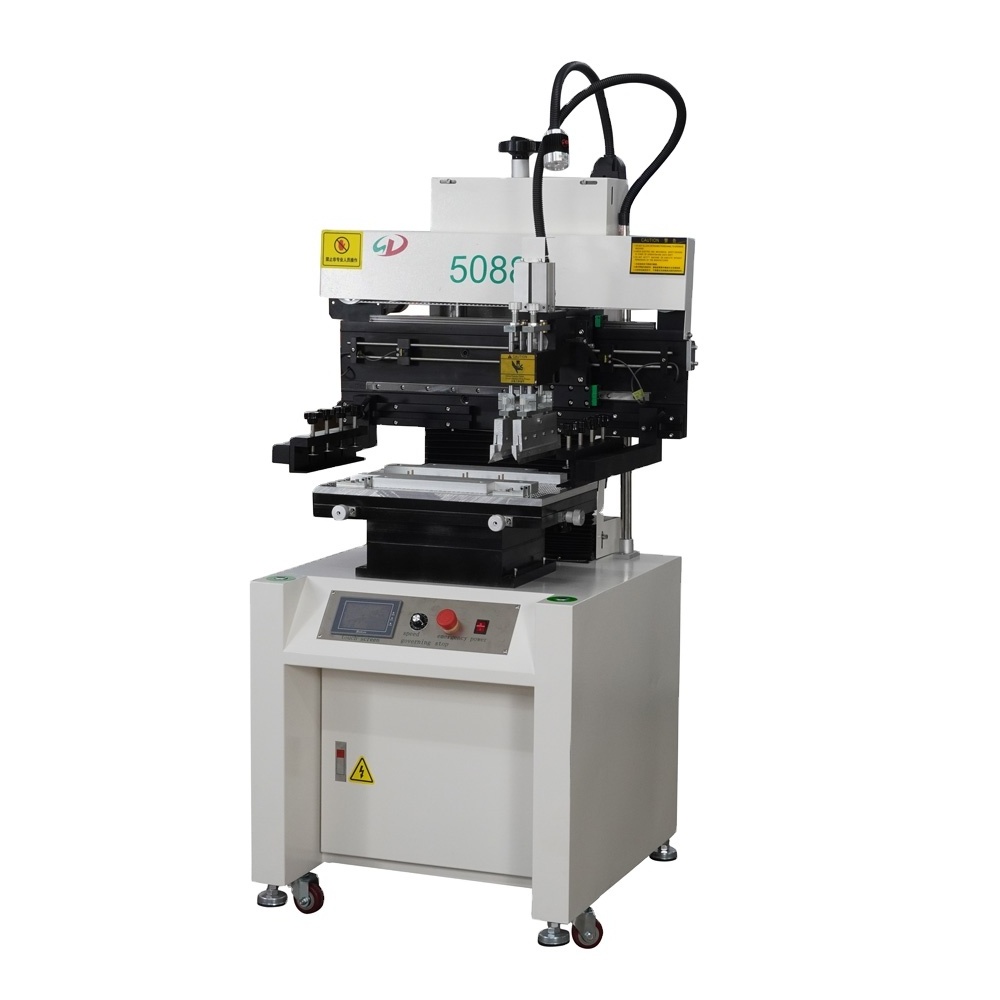

5088 Semi Automatic Solder Paste Printing Machine
Product Description
5088 Solder Paste
Printing Machine
Product Features
1.Using precision guide rail and the import motor to drive the blade seat conversion, printing, and high accuracy.
2.Printing scraper can rotate 45 degrees fixed up, easy printing stencil and squeegee cleaning and replacement.
3.Block can be adjusted before and after the blade, to choose the right printing position.
4.Combined with a fixed groove printing platen and PIN, easy installation and adjustment, for single, double sided printing.
5.School Edition way to move a steel mesh, combined with printed (PCB), X, Y, Z. Convenient fine adjustment.
6.PLC Control System to ensure working stabilized & reliable; Touch screen is easy to operate.
7.Can be set to one-way and two-way, a variety of printing methods.
8.With the automatic counting function to facilitate the production of output statistics.
9.Adjustable blade angle, steel blade, rubber scraper are suitable.
10.Touch screen with a screen saver function, the time can be adjusted to protect the touch-screen life.
11.Printing speed display, can be adjusted.
Technical Parameters
|
Model
|
5088
|
|
Direction of movement
|
Move left and right
|
|
Workbench
|
500*320mm
|
|
Workbench Thickness
|
80mm
|
|
Power Supply
|
Single phase 220V
|
|
Dimension
|
860*780*1650mm
|
|
Air Supply
|
0.5-0.8mpa
|
|
Starting Power
|
0.2KW
|
|
Positioning
|
PCB Outer or Pin Positioning
|
|
Weight
|
About 150KG
|
|
Steel mesh clamping device
|
Manual locking(thin cylinder clamping steel mesh is optional)
|
|
Printing Range
|
400*320mm
|
|
Printing Precise
|
±0.02mm
|
|
Moving Motor
|
Three-phase motor 60W
|
|
Moving Speed
|
0-2200mm/min
|
|
Rail
|
Taiwan silver linear guide
|
|
PLC Control
|
Siemens
|
|
Touch Screen
|
4.3# display control screen
|
|
Main Cylinder
|
SC63*150
|
|
Cutter Head Cylinder
|
CDU25-50
|
|
Frequency Converter
|
ENC
|
|
Floodlight
|
LED light
|
Product Details
Control System
Easy to operate by using
4.3# Samkoon control touch screen.
Double Scraper Design
Double blade is adjustable and easy to operate. This design also can improve the efficiency
.
Double Start System
There are two start switches on left and right side. Turn on at the same time to work. Ensure the safety of operatioin.
Printing Table
The calibration and fine adjustment are quick and convenient, the installation and trial adjustment are easy to operate.Suitable for single/double panel printing.
Linear Slide
Smooth Operation
Good Printinig Consistency
Packing & Delivery
Vacuum Packing & Wooden Packing
