Quick Details
-
Drilling Speed:
-
620~2620/740~3140rpm
-
Place of Origin:
-
Jiangsu, China
-
Brand Name:
-
JSBESTECH
-
Model Number:
-
ZJ4113
-
Voltage:
-
Customized
-
Dimension(L*W*H):
-
430*340*230mm
-
Power (kW):
-
0.25/0.35(Optional)
-
Weight (KG):
-
17 KG
-
Marketing Type:
-
New Product 2021
-
Chuck Capacity:
-
1.5-13mm
-
Spindle Travel:
-
50mm
-
Class Of Speed:
-
5
-
Speed50/60Hz:
-
620~2620/740~3140rpm
-
Spindle Taper:
-
B16
-
Swing:
-
210mm
-
Table Size:
-
160*160mm(cast iron)
-
Base Size:
-
290*190mm(cast iron)
-
Weight:
-
17kg
-
Power:
-
250/350w(Optional)
Quick Details
-
type:
-
Column Drill Press
-
Max. Drilling Dia. (mm):
-
13 mm
-
Range of Spindle Speed(r.p.m):
-
740 - 3140 rpm
-
Drilling Speed:
-
620~2620/740~3140rpm
-
Place of Origin:
-
Jiangsu, China
-
Brand Name:
-
JSBESTECH
-
Model Number:
-
ZJ4113
-
Voltage:
-
Customized
-
Dimension(L*W*H):
-
430*340*230mm
-
Power (kW):
-
0.25/0.35(Optional)
-
Weight (KG):
-
17 KG
-
Marketing Type:
-
New Product 2021
-
Chuck Capacity:
-
1.5-13mm
-
Spindle Travel:
-
50mm
-
Class Of Speed:
-
5
-
Speed50/60Hz:
-
620~2620/740~3140rpm
-
Spindle Taper:
-
B16
-
Swing:
-
210mm
-
Table Size:
-
160*160mm(cast iron)
-
Base Size:
-
290*190mm(cast iron)
-
Weight:
-
17kg
-
Power:
-
250/350w(Optional)
Product Description

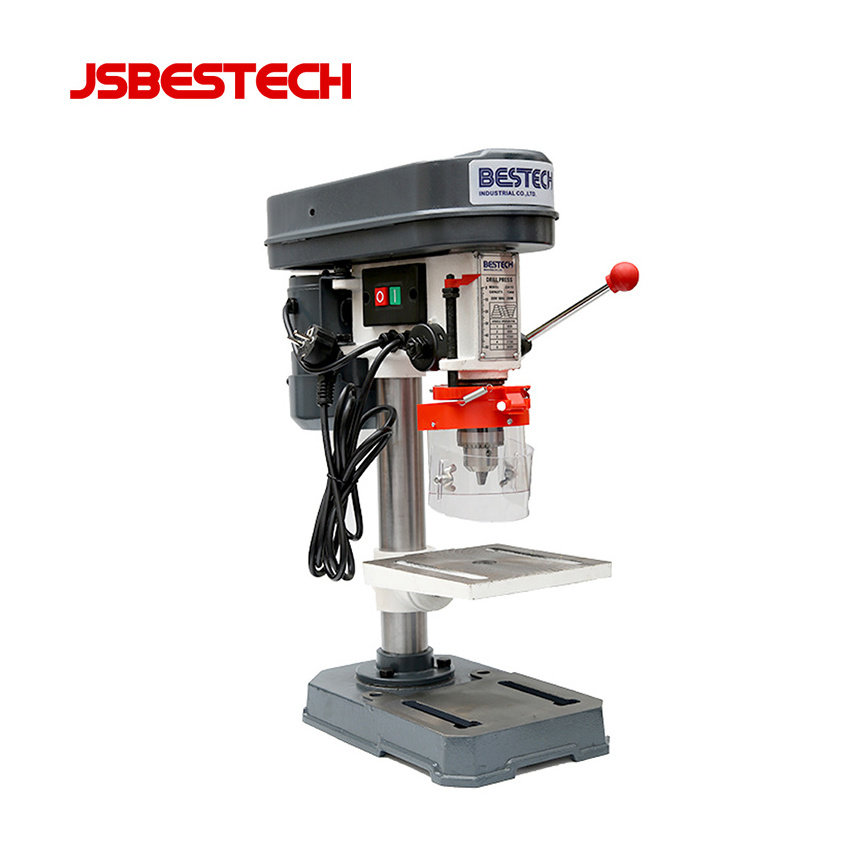

ZJ4113 13mm 350w power vertical drill press machine,bench drilling press machine belongs to one of our most economic manual mini bench drilling press machine. It is new condition not used Mini bench drilling press machine. And it is small in size and delicate in design. This Mini bench drilling press machine is made in China, but have very good quality as Taiwan drill press.
Features:
1. High Rigid Construction
2. Easy Operation and Extended Durability
3. Different Sizes and Replaceable Worktables
4. Considerable Safety Design
5. 5/8" (16mm) max chuck capacity
6. - 45 degree ~ 0 degree ~ + 45 degree table tilt L&R
7. Chuck guard is standard accessories
8. Optional micro-switch for CE requirement
|
Max Drilling Diameter
|
Φ13mm(1/2'')
|
|
Motor Power
|
250/350w(Optional)
|
|
Chuck Capacity
|
1.5-13mm
|
|
Spindle Travel
|
50mm
|
|
Class Of Speed
|
5
|
|
Speed50/60Hz
|
620~2620/740~3140rpm
|
|
Spindle Taper
|
B16
|
|
Max distance from spindle axis to surface of column
|
105mm
|
|
Max distance from spindle end to surface of table
|
220mm
|
|
Max distance from spindle end to surface of base
|
300mm
|
|
Swing
|
210mm
|
|
Table Size
|
160×160mm(cast iron)
|
|
Base Size
|
290×190mm(cast iron)
|
|
Column Diameter
|
Φ46mm
|
|
Height
|
580mm
|
|
Net Weight/ Gross Weight
|
16/17kg
|
|
Packing Size
|
430×340×X230mm
|
Standard Accessories
Drill chuck
Wrench set
Aluminium motor
Optional Accessories
Copper motor
Chuck guard with power off
Micro switch
Vice
Key less drill chuck
Laser light
Detailed Images
Our Company
BESTECH Industrial Co., Ltd. is one of the professional enterprises in China in the field of machinery and tools. The main products include Bench Lathes(manual &CNC),Drill Press, Bench Grinder, Drilling and Milling Machine, Table Saw, Band Saw,etc. Most of the items have been approved by CE,GS& ROHS certificates.
Covering an area of 4000 square meters, our factory now has over 100 employees, including 15 QC engineers and technicians. We are in Jiangsu Province,very near from Shanghai.We may arrange your visit to our factory at your wish onced informed.We are looking forward to friends and new clients
Product packaging
Similar products
Company Profie
BESTECH Industrial Co., Ltd. is one of the professional enterprises in China in the field of machinery and tools. The main
products include Bench Lathes(manual &CNC),Drill Press, Bench Grinder, Drilling and Milling Machine, Table Saw, Band Saw,etc. Most
of the items have been approved by CE,GS& ROHS certificates.
Covering an area of 4000 square meters, our factory now has over 100 employees, including 15 QC engineers and technicians. We are
in Jiangsu Province,very near from Shanghai.We may arrange your visit to our factory at your wish onced informed.We are looking
forward to friends and new clients.
Certifications
Customer Photos
FAQ
1: What's the MOQ?
A: 1 set .(Only some low cost machines will be more than 1 set )
2: What is your trade terms?
A : FOB, CFR and CIF all acceptable.
3:How can I choose the most suitable machines ?
A: Please tell me your specifications ,we can choose the best model for you , or you can choose the exact model .
You can also send us the products drawing ,we will choose the most suitable machines for you .
4: What's your main products of your company?
A: We specialized in all kinds of machines ,such as Bench Lathes (manual and CNC), Drilling MIlling Machine, Drill Press, Bench Grinder, Table Saw and Band Saw,etc.
5: Where is our factory located? How can I visit there?
A : Our factory is located in Jiangsu Province, China. Sure. All new and old friends are welcomed to visit us at our factory. Besides, we can pick up you at the station or airport if needed.
