Auto paint making machine / automatic color mixing equipment / paint colorant mixer

Auto paint making machine / automatic color mixing equipment / paint colorant mixer

FOB Reference Price: Get Latest Price

≥1 Sets

US $999

Free Inquiry

Customized Request

Product Details

{{item.text}}

Quick Details

Weight (KG):: 400 KG

Place of Origin:: Shanghai, China

Brand Name:: ELE

Voltage:: 380V,220V or 415V

Dimension(L*W*H):: 1100*500*1014 MM

Power (kW):: 11 kW

Warranty:: One Year

After-sales Service Provided:: Engineers available to service machinery overseas

Motor:: Explosion-proof /no ex-prof

Shaft:: Single or double shaft

Lifting Way:: Hydraulic or Pneumatic Lifting

Capacity:: Depends on Customers' request

Power:: 4-55KW

After Warranty Service:: Spare parts

Local Service Location:: None

Certification:: CE

Quick Details

Barrel Volume (L):: 500

Max. Loading Volume (L):: 400 L

Max. Loading Capacity:: Depends on the Capacity

Weight (KG):: 400 KG

Place of Origin:: Shanghai, China

Brand Name:: ELE

Voltage:: 380V,220V or 415V

Dimension(L*W*H):: 1100*500*1014 MM

Power (kW):: 11 kW

Warranty:: One Year

After-sales Service Provided:: Engineers available to service machinery overseas

Motor:: Explosion-proof /no ex-prof

Shaft:: Single or double shaft

Lifting Way:: Hydraulic or Pneumatic Lifting

Capacity:: Depends on Customers' request

Power:: 4-55KW

After Warranty Service:: Spare parts

Local Service Location:: None

Certification:: CE

Product Description

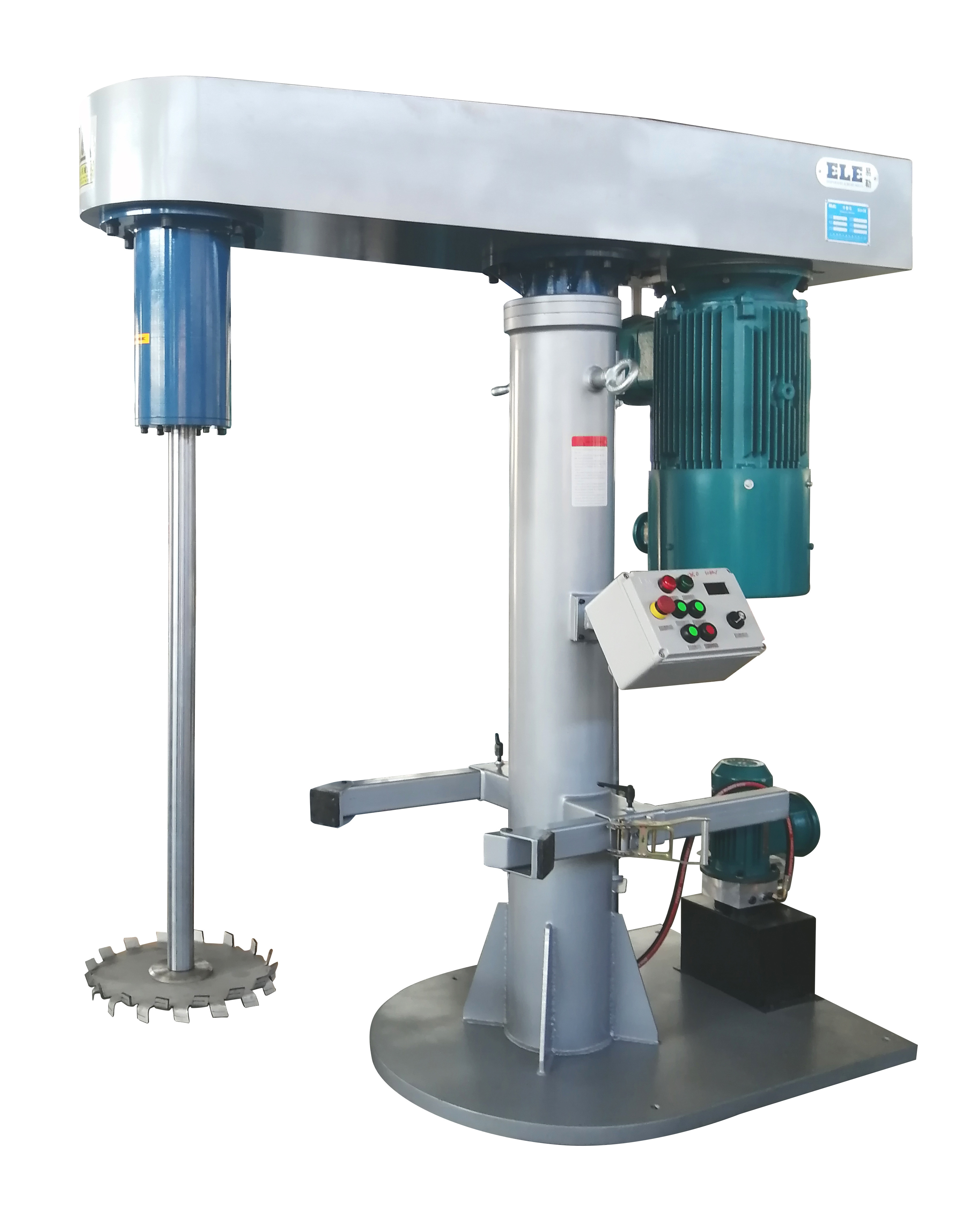

EBF Series High Speed Disperser

It is widely used in coating, paint, ink, adhesives, and related chemical industries to stir, mix, dissolve and disperse two or more kinds of liquid and solid powder.

Product Features

The high speed disperser is suitable to all kinds of liquid to pre-mix, disperse, color matching etc.

High efficiency production, hydraulic lifting, frame can turn around flexible.

When mixing and dispersing, there is little air suction, it can dissolve the material quickly and particle become finer.

Mixing and shearing effect are good, suitable for high-volume selection.

Specifications & Applications

Model	Power(kw)	Speed(rpm)	Disc Dia(mm)	Stroke(mm)	Weight(kg)
EBF-4	4	1500	100-200	700	400
EBF-7.5	7.5	1500	200-300	900	500
EBF-11	11	1500	200-300	900	600
EBF-15	15	1500	200-300	900	700
EBF-18.5	18.5	1250	250-300	1200	800
EBF-22	22	1250	300-350	1200	900
EBF-37	37	1250	300-400	1200	1100
EBF-45	45	1250	400-500	1500	1200
EBF-55	55	1250	400-500	1500	1500
