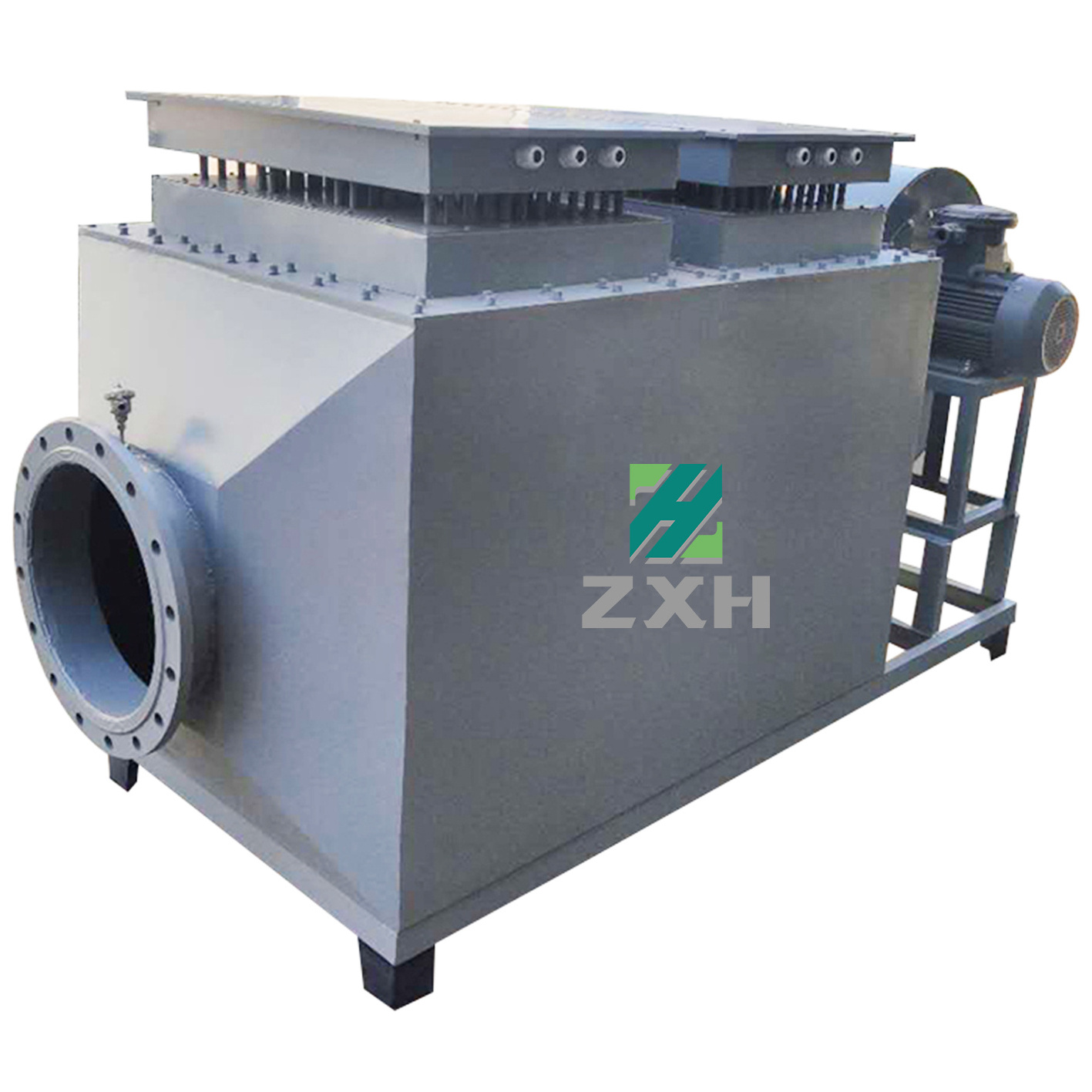

Air Duct Heater is mainly used for heating the air in the air duct. The common thing in the structure is that the steel plate is used to support the electric heating tube to reduce the vibration of the electric heating tube, and it is installed in the
junction box. There is an over-temperature control device.
- Product Details
- {{item.text}}
Quick Details
-
Place of Origin:
-
JIA
-
Brand Name:
-
ZXH
-
Dimension(L*W*H):
-
as your requests
-
Weight:
-
60 KG
-
Working Temperature Range:
-
1 - 300 ℃
-
Product name:
-
electric heater bank Air Duct Heater With Air Blower For Poultry Farm
-
Keywords:
-
Heat Air
-
Voltages available:
-
110v/220v/ 240v/ 380v
-
Tube Material:
-
Stainless Steel/Carbon steel
-
Sheath material:
-
Stainless Steel/Carbon steel
-
Feature:
-
Thermal efficiency greater than 90%
-
Shape:
-
Frame and Shell
-
Temperature measuring point:
-
K type thermocouple
-
Heating medium:
-
Air
-
Temperature:
-
800c Max
Quick Details
-
Type:
-
Air Heater
-
Power Source:
-
Electric
-
Voltage:
-
110V-480V,can also be customized
-
Place of Origin:
-
JIA
-
Brand Name:
-
ZXH
-
Dimension(L*W*H):
-
as your requests
-
Weight:
-
60 KG
-
Working Temperature Range:
-
1 - 300 ℃
-
Product name:
-
electric heater bank Air Duct Heater With Air Blower For Poultry Farm
-
Keywords:
-
Heat Air
-
Voltages available:
-
110v/220v/ 240v/ 380v
-
Tube Material:
-
Stainless Steel/Carbon steel
-
Sheath material:
-
Stainless Steel/Carbon steel
-
Feature:
-
Thermal efficiency greater than 90%
-
Shape:
-
Frame and Shell
-
Temperature measuring point:
-
K type thermocouple
-
Heating medium:
-
Air
-
Temperature:
-
800c Max
Product Description
Fast Heating Circulation Air Duct Heater For Poultry Farm
Details Images
ZXH-FD-20
Voltage
: 380V-660V 3Phase 50Hz/60Hz
Power
: 20KW
Dimensions:
500*300*300mm
Material:
Carbon Steel/Stainless Steel
Heat efficiency:
more than 95%
The key questions before ordering a Air Duct Heater are:
1. What's your required material?
2. What's Voltage and power? Or, you can tell us your using environment.
3. What's the operation temperature requirement?
4. How many sets will you want?
5. Other design requirement, feel free to tell us.
1. What's your required material?
2. What's Voltage and power? Or, you can tell us your using environment.
3. What's the operation temperature requirement?
4. How many sets will you want?
5. Other design requirement, feel free to tell us.
Standard Dimension
|
Model
|
Power
|
Size of Heating Room
(L* W* H, mm) |
Air outlet diameter(mm)
|
Power of Blower
|
|
ZXHFD-10
|
10
|
300x300x300
|
DN100
|
0.37KW
|
|
ZXHFD-20
|
20
|
500x300x300
|
DN200
|
0.37KW
|
|
ZXHFD-30
|
30
|
400x400x400
|
DN300
|
0.75KW
|
|
ZXHFD-40
|
40
|
500x400x400
|
DN300
|
0.75KW
|
|
ZXHFD-50
|
50
|
600x400x400
|
DN350
|
1.1KW
|
|
ZXHFD-60
|
60
|
700x400x400
|
DN350
|
1.5KW
|
|
ZXHFD-70
|
70
|
600x400x500
|
DN350
|
1.5KW
|
|
ZXHFD-80
|
80
|
700x400x500
|
DN350
|
2.2KW
|
|
ZXHFD-90
|
90
|
800x400x500
|
DN350
|
2.2KW
|
|
ZXHFD-100
|
100
|
900x400x500
|
DN350
|
3KW
|
|
ZXHFD-120
|
120
|
1000x400x500
|
DN350
|
5.5KW
|
|
ZXHFD-140
|
140
|
600x750x500
|
DN400
|
5.5KW
|
|
ZXHFD-160
|
160
|
700x750x500
|
DN400
|
5.5KW
|
|
ZXHFD-180
|
180
|
800x750x500
|
DN400
|
7.5KW
|
|
ZXHFD-200
|
200
|
800x750x500
|
DN450
|
7.5KW
|
|
ZXHFD-250
|
250
|
1000x750x600
|
DN500
|
7.5KW
|
|
ZXHFD-300
|
300
|
1200x750x600
|
DN500
|
7.5KW
|
|
ZXHFD-350
|
350
|
900x800x900
|
DN500
|
15KW
|
|
ZXHFD-400
|
400
|
1000x800x900
|
DN600
|
15KW
|
|
ZXHFD-450
|
450
|
1100x800x900
|
DN600
|
15KW
|
|
ZXHFD-500
|
500
|
1200x800x900
|
DN600
|
18.5KW
|
|
ZXHFD-600
|
600
|
1400x1000x1000
|
DN600
|
18.5KW
|
|
ZXHFD-800
|
800
|
1800x1000x1000
|
DN600
|
30KW
|
|
ZXHFD-1000
|
1000
|
2200x1000x1000
|
DN600
|
30KW
|
About the dimensions we also can do customized, please let me know freely
Specification
|
item
|
Industrial Electric Heating electric heater bank Air Duct Heater with Blower for Paint Baking Room
|
|
Type
|
Air Heater
|
|
Power Source
|
Electric
|
|
Dimension(L*W*H)
|
as your requests
|
|
Voltage
|
110V-480V,can also be customized
|
|
Working Temperature Range
|
1℃ - 800℃
|
|
Material
|
Stainless Steel
|
|
Key Selling Points
|
fast heater
|
|
Core Components
|
Engine, PLC
|
|
Tube Material
|
Stainless Steel/Carbon steel
|
|
Sheath material
|
Stainless Steel/Carbon steel
|
|
Feature
|
Thermal efficiency greater than 90%
|
|
Shape
|
Frame and Shell
|
|
Temperature measuring point
|
K type thermocouple
|
|
Heating medium
|
Air
|
|
Temperature
|
800c Max
|
