Quick Details
-
Frequency:
-
50HZ
-
Welding Area:
-
1200*25mm,or customizing
-
Dimensions:
-
1390*1120*1250mm
-
Use:
-
plastic welding sealing
-
Weight (KG):
-
360 KG
-
Power (kW):
-
2.5
-
Power:
-
5KW
-
Air Source:
-
0.6MPa
-
Sealing Length:
-
1200---5000mm
-
Sealing Width:
-
25mm
-
Weight:
-
360kg
Quick Details
-
Place of Origin:
-
Zhejiang, China
-
Brand Name:
-
Utien Pack
-
Voltage:
-
220V, 220V,50HZ
-
Frequency:
-
50HZ
-
Welding Area:
-
1200*25mm,or customizing
-
Dimensions:
-
1390*1120*1250mm
-
Use:
-
plastic welding sealing
-
Weight (KG):
-
360 KG
-
Power (kW):
-
2.5
-
Power:
-
5KW
-
Air Source:
-
0.6MPa
-
Sealing Length:
-
1200---5000mm
-
Sealing Width:
-
25mm
-
Weight:
-
360kg
Machine description

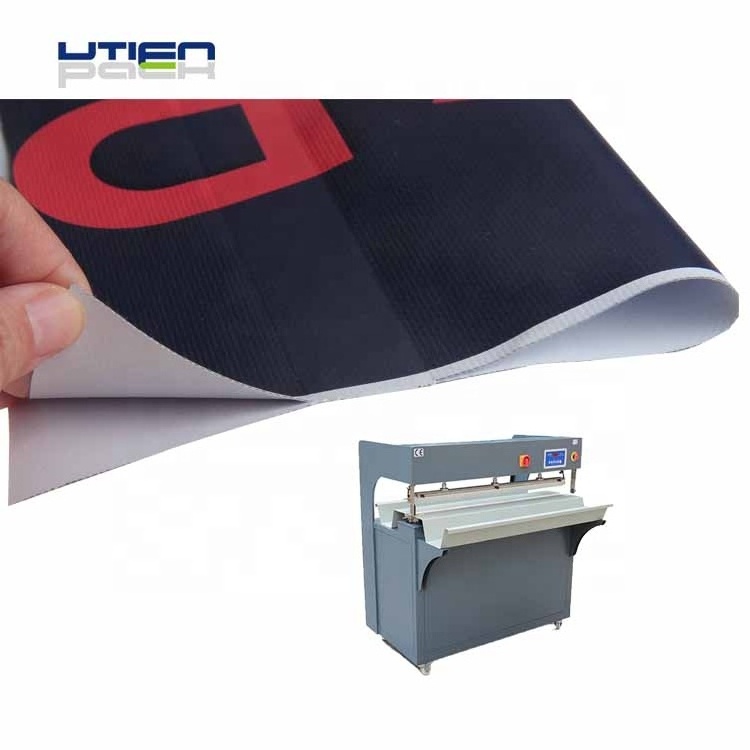

Impulse heat welding machine .
The machine requires no warm up time and seals by applying a pulse of energy to the sealing area, followed immediately by cooling. Impulse sealers only use power when the jaw is lowered.
Usually，It's able to handle a variety of thermoplastic material and poly-coated fabrics,such as t arpaulins,screen,tents,awnings,inflatalbes,truck covers ,and more.
More application
Shade
Tarpauline
Mosquito mesh
Sealing details
Machine details
Simple operation
For different materials, the machine software can store 9 cycle settings for heating and cooling process, enabling consistent high-quality results time and time again.
Safe operation
1.Heat only exists during sealing time
2. Laser sensor ensures no hands are left behind on workplate in machine operation.
3. Double sealing steps maximumly prevent accidents during machine operation .
Strong sealing
Pneumatic sealing bar keeps average pressure on sealing material, which makes the sealing seam smooth and strong.
The power is stronger with double sealing bars.
Technical data:
|
Machine parameter----FMQP1200/2
|
|
|
|
|||
|
Dimension
|
|
1500*850*1250mm
|
|
|||
|
Weight
|
|
360kg
|
|
|||
|
Power
|
|
4KW
|
|
|||
|
Voltage
|
|
220v,50HZ
|
|
|||
|
Sealing length
|
|
1200mm(customizable)
|
|
|||
|
Sealing width
|
|
5000mm(customizable)
|
|
|||
Our service
FAQ
Q1.How long does it take to deliver the machine after the order & deposit?
A1:Usually it will take 45 working days to manufacture the machine and make it ready to deliver.
Q2:What do you need to make a specific offer for my product?
A2:To make a special offer we will need the Sealing length and width and other functions you want to use on this machine. If with other special request, please also inform us before we make the project.
Q3:Can you offer oversea service?
A3:Yes, if request. But we suggest online problem solving at first. If the problem still shows we can arrange engineer to go to your factory personally to solve the issue.
