High Level Palletizer VPEKS Automation Faster Case Palletizing Bag Stacking Machine
High Level Palletizer VPEKS Automation Faster Case Palletizing Bag Stacking Machine
High Level Palletizer VPEKS Automation Faster Case Palletizing Bag Stacking Machine
High Level Palletizer VPEKS Automation Faster Case Palletizing Bag Stacking Machine
High Level Palletizer VPEKS Automation Faster Case Palletizing Bag Stacking Machine
High Level Palletizer VPEKS Automation Faster Case Palletizing Bag Stacking Machine
High Level Palletizer VPEKS Automation Faster Case Palletizing Bag Stacking Machine
High Level Palletizer VPEKS Automation Faster Case Palletizing Bag Stacking Machine

High Level Palletizer VPEKS Automation Faster Case Palletizing Bag Stacking Machine

FOB Reference Price: Get Latest Price
≥1 Sets
US $13000
Free Inquiry
Customized Request
  • Product Details
  • {{item.text}}

Quick Details

Place of Origin:
Henan
Brand Name:
VPEKS Automation
Dimension(L*W*H):
3100*2000*2800mm
Weight:
3200 KG
Model name:
VPK-GWPT High Level Palletizer
Packing speed:
800 to 1200bags per hour
Weight per bag:
5kg to 50kg per bag
Working type:
push type
Included item 1:
Feeding conveyor
Included item 2:
PLC cabinets

Quick Details

Application:
Food, Beverage, Commodity, Chemical, Machinery & Hardware, APPAREL
Packaging Material:
Plastic, Paper, Metal, Glass
Voltage:
380v/220v
Place of Origin:
Henan
Brand Name:
VPEKS Automation
Dimension(L*W*H):
3100*2000*2800mm
Weight:
3200 KG
Model name:
VPK-GWPT High Level Palletizer
Packing speed:
800 to 1200bags per hour
Weight per bag:
5kg to 50kg per bag
Working type:
push type
Included item 1:
Feeding conveyor
Included item 2:
PLC cabinets
Products Description

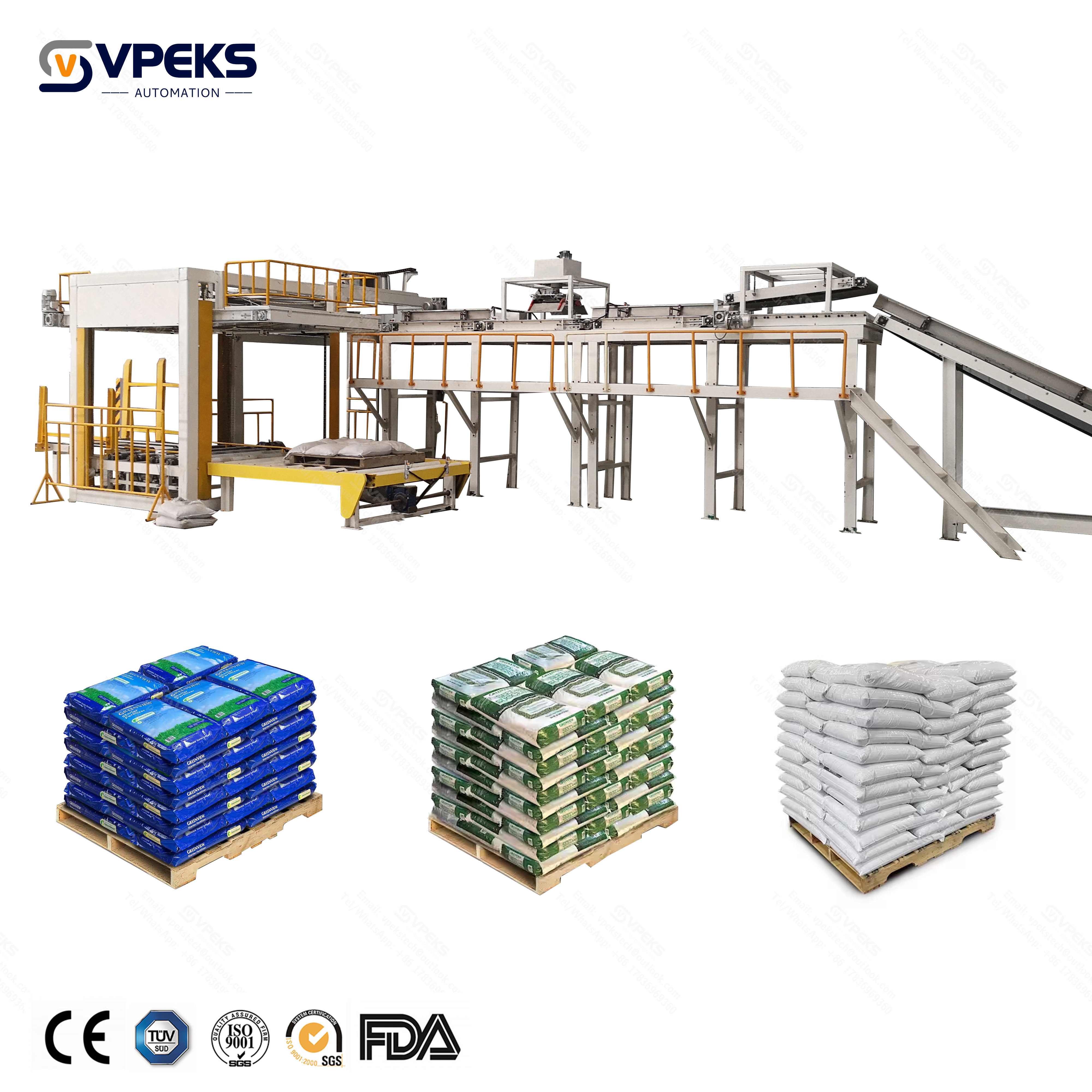

Fast Speed high level case infeed palletizer bag palletizing machine upper level made by VPEKS Automation
High-level palletizer
High level infeed conventional palletizers are generally faster and have a comparatively smaller footprint than floor level palletizers. Additionally, more efficient traffic flow can be realized in plants when there are multiple palletizers in one area or the palletizing process is located a significant distance from the packaging area. How a high-level palletizer is made and how it works The machine is composed of a rigid high-level case palletizerwith a vertical frame sliding on it and this holds the pallet being formed. The full bags coming from the filling line are raised to an orienting device. Following the programmed palletizing pattern, the bags are initially arranged on the row-formation roller conveyor and then when a row is composed, it is shifted to a temporary parking area. When the last row completes the layer, a pusher shifts the entire layer over two sliding trapdoors that centrally unload the layer, which is then compacted on all four sides. At this point, the doors open and unload the just-formed layer onto the pallet being made, and the frame that holds it is lowered by the thickness of one layer. The cycle begins again until the pallet has been completed, at which point the frame descends to the level of the evacuation roller conveyor. Through this roller conveyor, the pallet is ejected and is sent to the parking roller conveyor. At the same time, a new empty pallet will have reached the mobile frame, which is raised to the height of the trapdoors to receive the first layer that has been prepared and start the new cycle. VPEKS high-level palletizer: easy to perform The use of a PLC operating system and the presence of special actuators makes the procedures to change the format or program extremely fast and easy to perform. Different palletizing patterns can be memorized in the PLC for easy execution. The high-level palletizer comes complete with a treading platform to access the elevated parts of the machine, an empty-pallet magazine, an evacuation roller conveyor and a full-pallet parking roller conveyor. The high-level push-type palletizer comes complete with safety devices compliant with current international standards.

Our conventional palletizers offer unlimited pattern-forming capabilities and zero time — zero tool changeover. As an integrated
systems solutions provider and home to the broadest palletizer product line of any conventional palletizer supplier, Columbia is
sure to have a solution for all of your palletizing needs.
On VPEKS’s assistance with high-level palletizers Digital Help Care Il nuovo supporto multicanale Check consente la risoluzione rapida di tutte le problematiche dei clienti, attraverso un portale web, ticket assistenza personalizzati, FAQ, e assistenza in mobilità attraverso la app per smartphone “VPEKS Check”. La app consente di sfruttare video, chat, sms per scambiare informazioni e ricevere assistenza immediata.
Hotline VPEKS offers specialized support from a team of technicians for high-level palletizers remote assistance. 84 % of issues are solved remotely or through the teleservice connection with the plant. On-site If necessary, VPEKS will send its technicians directly on-site for a rapid resolution of problems that cannot be solved remotely. Plus, we have a team for technical maintenance of your high-level palletizer. Training After installation on site, we provide your team with all the necessary training to solve any issues related to the high-level palletizer.
Product Paramenters
High Level palletizer with Flat Push
Model
VPK-GWPT
Power
380V 50/60HZ 13KW
Suitable raw materials
Fertilizer, feed, flour, rice, plastic pellets, seeds, washing powder, cement, dry powder mortar, talc powder, slag aggregating
agent, etc.
Proper pallet size
L1000~1200*W1000~1200mm
Palletizing Speed
800~1200bags/hour
Palletizing height
1300~1800mm(could be customized)
Air pressure
0.8MPA
Required air supply
≥0.01m3/h
Servo Motor
XINJIE
Pneumatic solenoid valve
AIRTAC
Senors
OMRON
PLC
Siemens
PLC
Siemens
Details Images
Why Choose Us
1.Integrated solution for packing & palletizing 2.Overseas after-sales service centers 3.Professional online guidance and on-site installation 4.Easy-to-use operating systems for all machines 5.International brands for all the components 6.More than 15+ years of experience in automation field 7.In time and long term warranty
